Figure 5.9.4.1.1

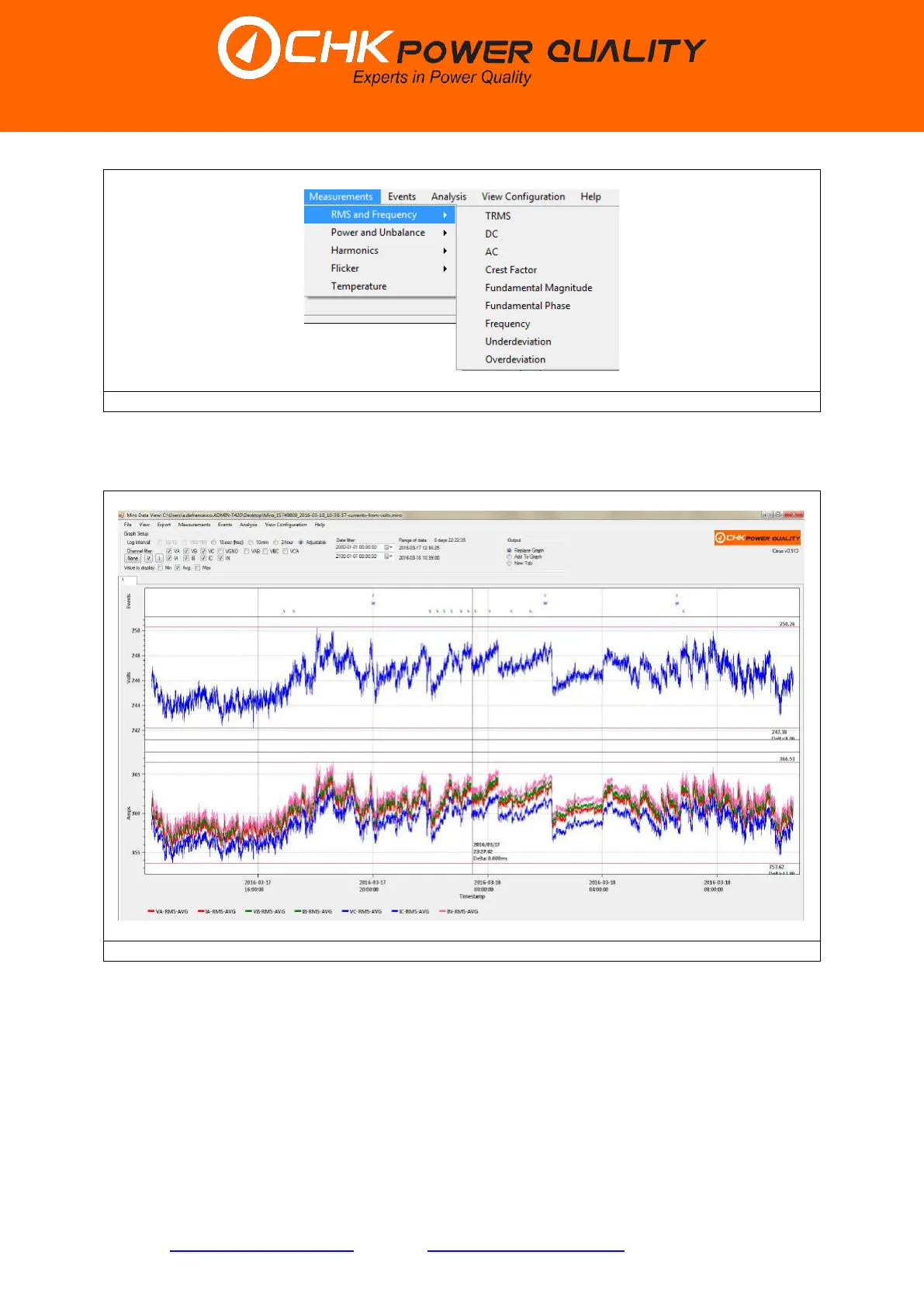

Clicking on ’TRMS’ generates graphs displaying voltage and current for selected channels
as shown in figure 5.9.4.1.2.
Figure 5.9.4.1.2
Clicking on ’AC’ or ‘DC’ generates graphs displaying only AC or DC components of the
voltage and current for selected channels as shown in figures 5.9.4.1.3 and 5.9.4.1.4
respectively.
