Figure 5.9.2.2.4

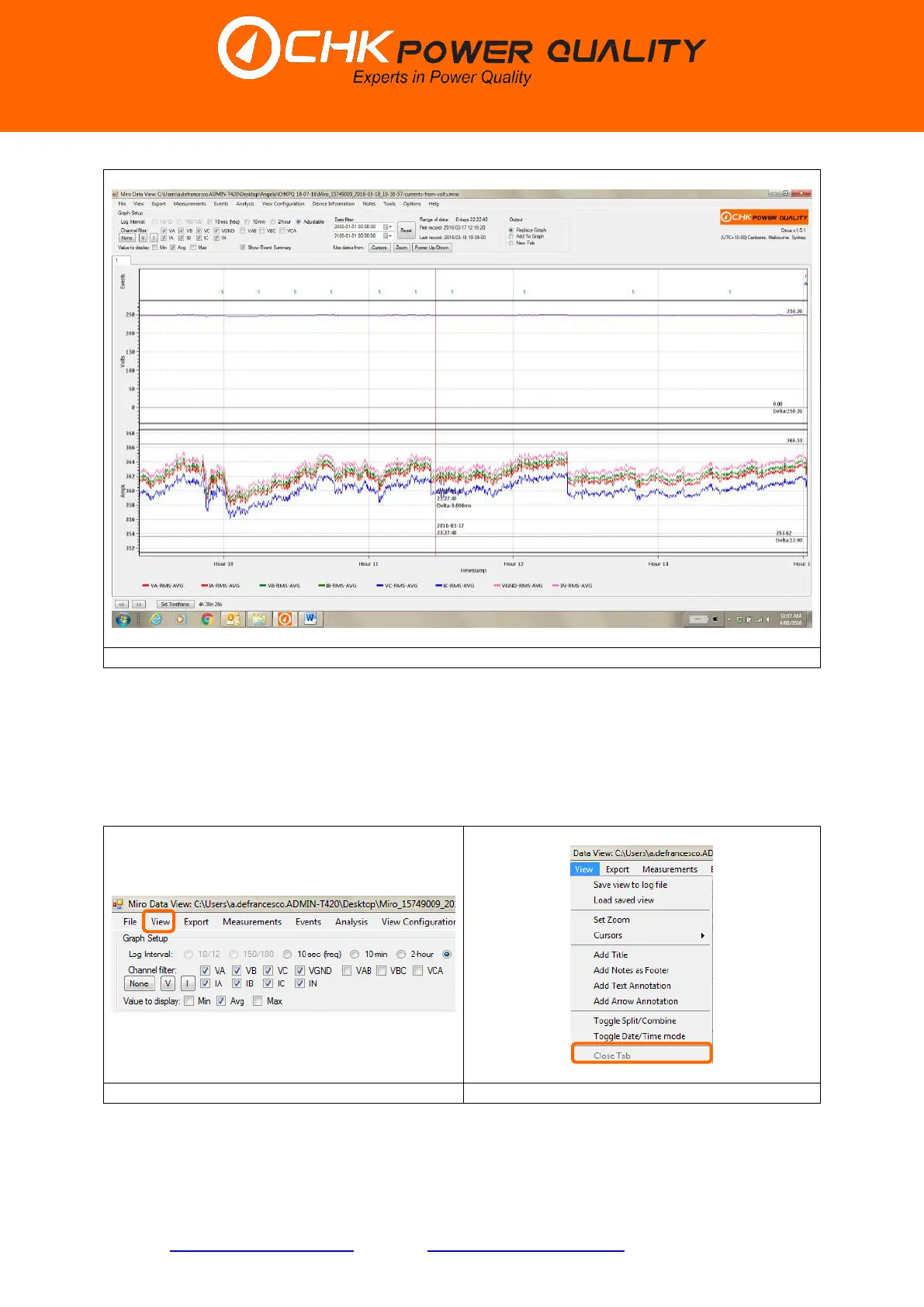

5.9.2.11 Close tabs
The user is able to remove tabs using the ‘Close Tab’ button.
Step 1: Click the ’View’ menu shown in figure 5.9.2.11.1. A drop down box appears as
shown in figure 5.9.2.11.2.
Figure 5.9.2.11.1
Figure 5.9.2.11.2
Note that the ‘Close Tab’ button is disabled. It is only enabled when two or more tabs are
available. Note that two tabs are available in figure 5.9.2.11.3.
