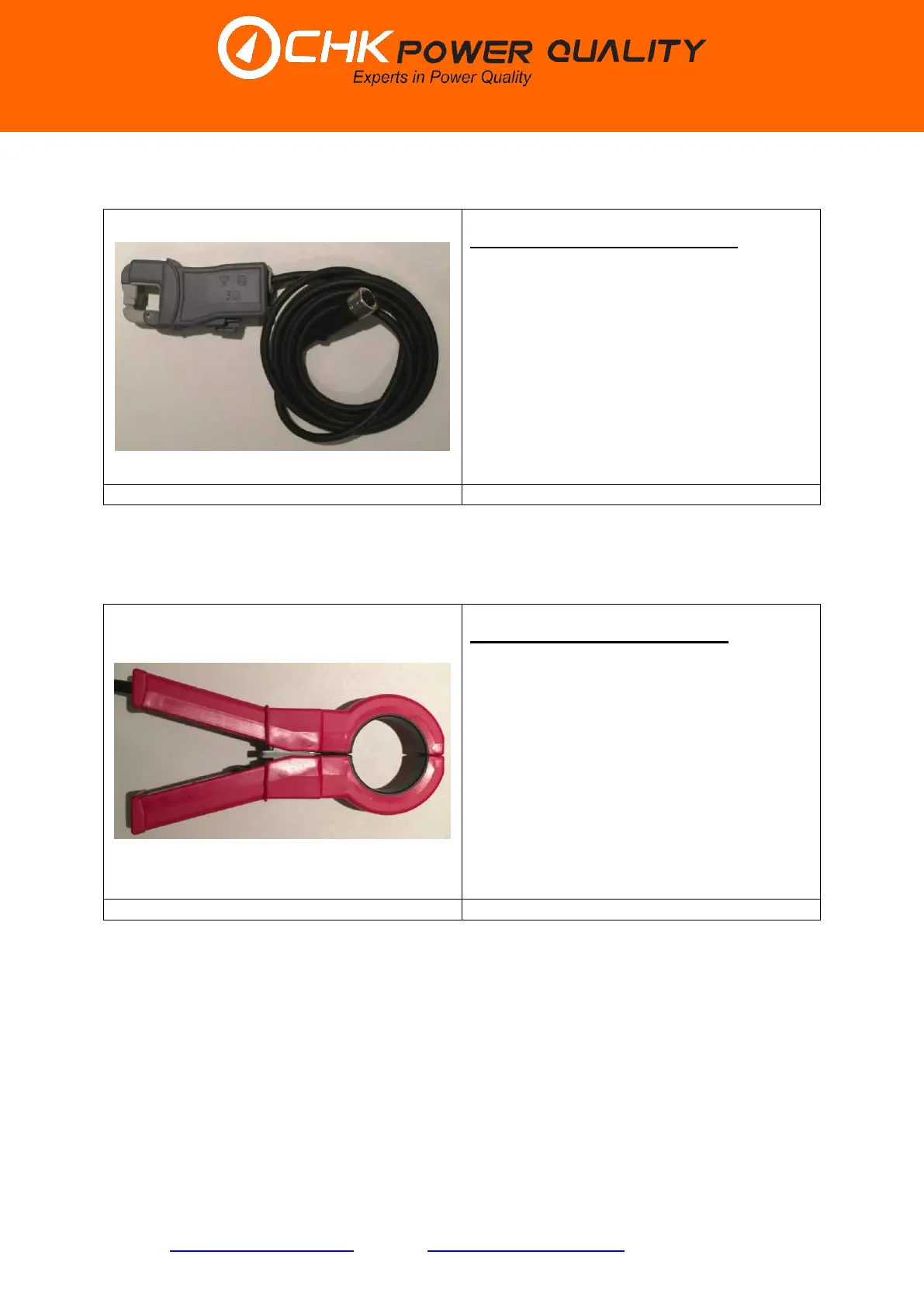

9.2.1.7 Clamp on CT probes 15mm - 100A
Clamp on CT probe 15mm - 100A
Instrument: PQ25 and PQ35.
Part number: 1ACR100S.
Accuracy: ±1%.
Cable diameter: 15mm.
Rated current: 100Arms.
Frequency range: 45Hz-5kHz.
Safety rating: 600V CAT III.
Weight: 113g (excluding lead).
Cable length: 1.95m.
Figure 9.2.1.7.1
9.2.1.8 Clamp on AC + DC probes 50mm
DC probes are intended for monitoring currents in DC systems.
Clamp on AC + DC Probe 50mm
Instrument: PQ25 and PQ35.
Part number: 1ADCR500.
Cable diameter: 50mm.
Rated current: 500A.
Upper frequency: 10kHz (-3dB).
Safety rating: CAT III 600V.
Power source: Directly from the Miro (no
external power supply required).
Weight: 600g;
Cable length: 2m.
Figure 9.2.1.8.1
