CHK Power Quality Pty Ltd, User Manual Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 189
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au
Fused three phase lead with banana
plugs and detachable small clamps
(crocodile clips)
Part number: 1AVL5-B.
Instrument: PQ45.
Connection: 3 phase star/wye.
Power source: Phase A to Neutral.
Termination: Banana plugs.
Number of wires: 5 (3P + N + G).
Weight: 950g.
Cable length: 2m.
Environment: Indoor / outdoor.
Fuses: 2A 600V HRC, (10 x 38) mm.
Protection level: CAT IV 600V.
Figure 9.1.4.1.1

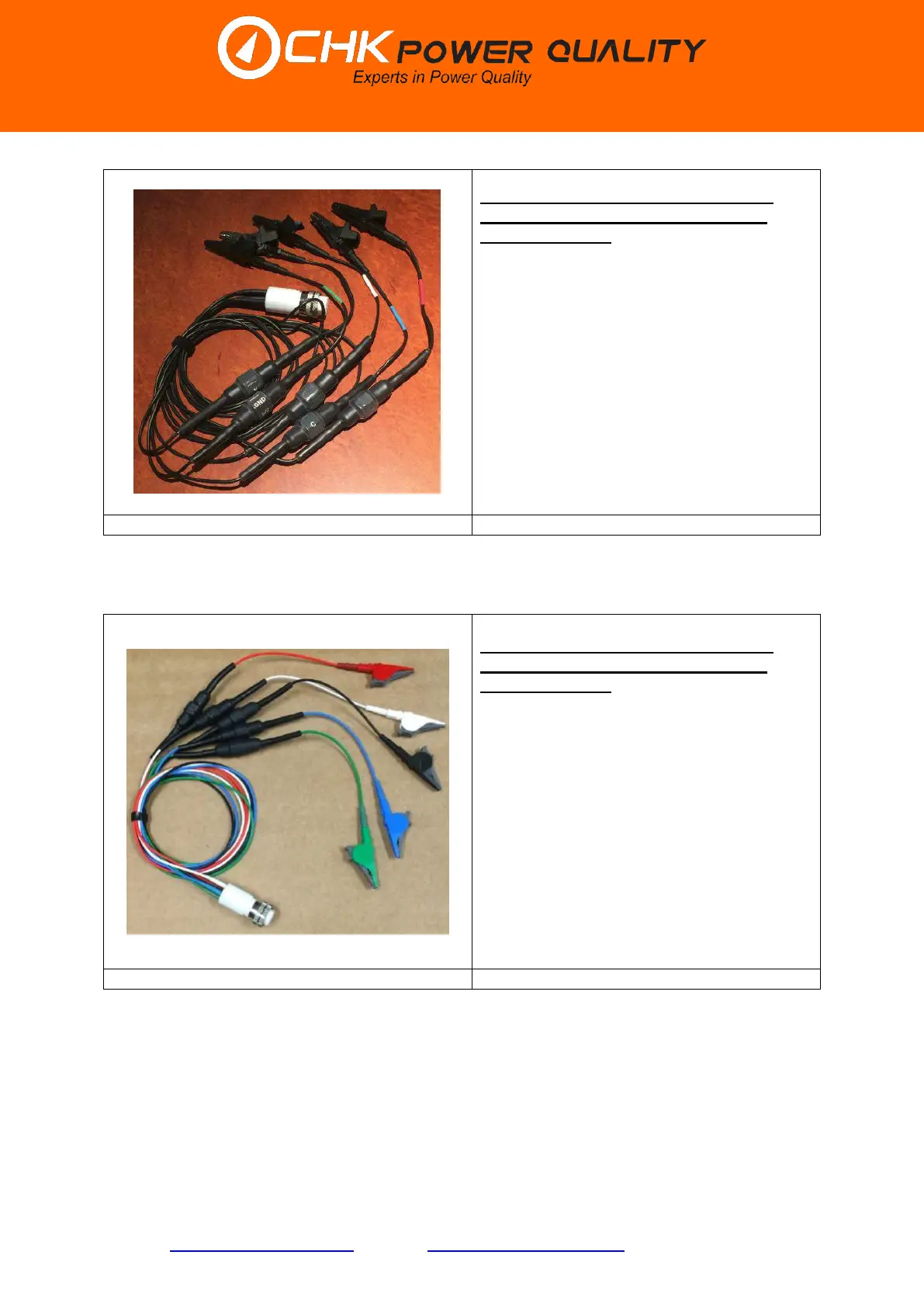

Figure 9.1.4.1.2 shows a new addition to the accessories, the 1AVL5-B cable using coloured
wires, banana plugs and crocodile clips.
Fused three phase lead with banana
plugs and detachable small clamps
(crocodile clips)
Part number: 1AVL5-B.
Instrument: PQ45.
Connection: 3 phase star/wye.
Power source: Phase A to Neutral.
Termination: Banana plugs.
Number of wires: 5 (3P + N + G).
Weight: 950g.
Cable length: 2m.
Environment: Indoor / outdoor.
Fuses: 2A 600V HRC, (10 x 38) mm.
Protection level: CAT IV 600V.
Figure 9.1.4.1.2
9.1.4.2 VL5-C
The VL5-C is a three phase five wire lead that connects to three phase circuits using five
large fused clamps as shown in figure 9.1.4.2.1. The lead has a common neutral (N) shared
by all phases.
The VL5-C clamps are fused with 2A, high rupture capacity (HRC) fuses. These fuses are an
integral part of the VL5-C lead and are not user replaceable.
