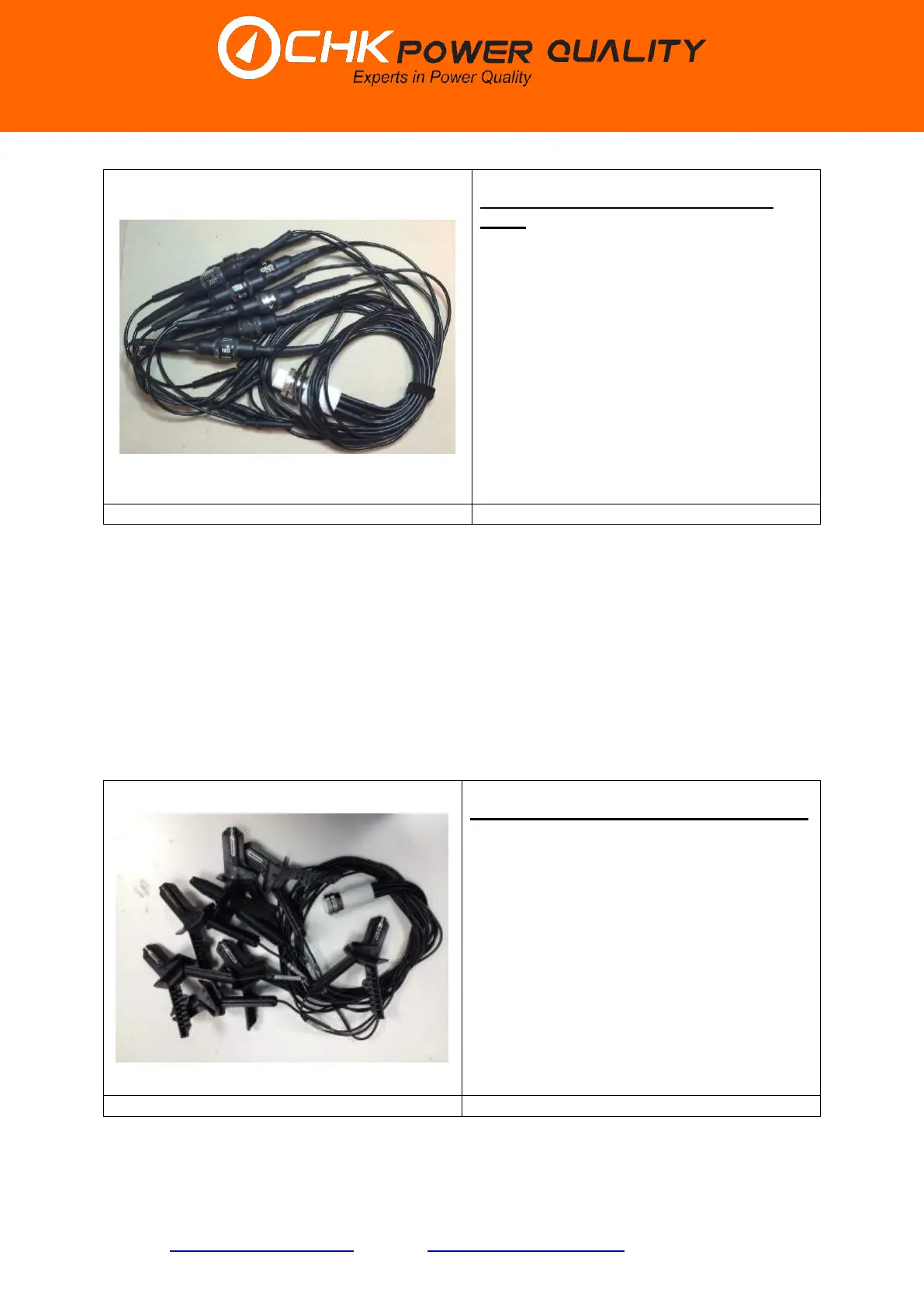

Fused three phase lead with banana
plugs
Part number: 1AVL8.
Instrument: PQ45.
Connection: 3 phase star/wye or delta.
Power source: Phase A to A Neutral.
Termination: Banana plugs.
Number of wires: 8 (3P + 3N + 2G).
Weight: 1.2kg.
Cable length: 2m.
Environment: Indoor / outdoor.
Fuses: 2A 600V HRC, (10 x 38) mm.
Protection level: CAT IV 600V.
9.1.4.4 VL8-C
The VL8-C is a three phase eight wire lead that connects to three phase circuits using eight
large fused clamps as shown in figure 9.1.4.4.1. The lead has separate neutrals and
intended as a general connection lead for use on all types of power systems.
The VL8 lead measures the Phase A to Neutral A, Phase B to Neutral B, Phase C to Neutral
C & Ground to Neutral voltages.
The VL8-C clamps are fused with 2A, high rupture capacity (HRC) fuses. These fuses are an
integral part of the VL8-C lead and are not user replaceable.
Three phase lead with large fused clamps
Part number: 1AVL8-C.
Instrument: PQ45.
Connection: 3 phase star/wye or delta.
Power source: Phase A to A Neutral.
Termination: Large fused clamps.
Number of wires: 8 (3P + 3N + 2G).
Weight: 1.6kg.
Cable length: 2m.
Environment: Indoor / outdoor.
Fuses: 2A 600V HRC, (10 x 38) mm.
Protection level: CAT IV 600V.
