5.3.15 Waveforms
The ‘Waveforms’ screen displays the 10/12 waveforms of all voltage and current channels,
but is initially disabled as shown in figure 5.3.15.1. Update rate may be less often than every
10/12 cycles due to the volume of data transfer.

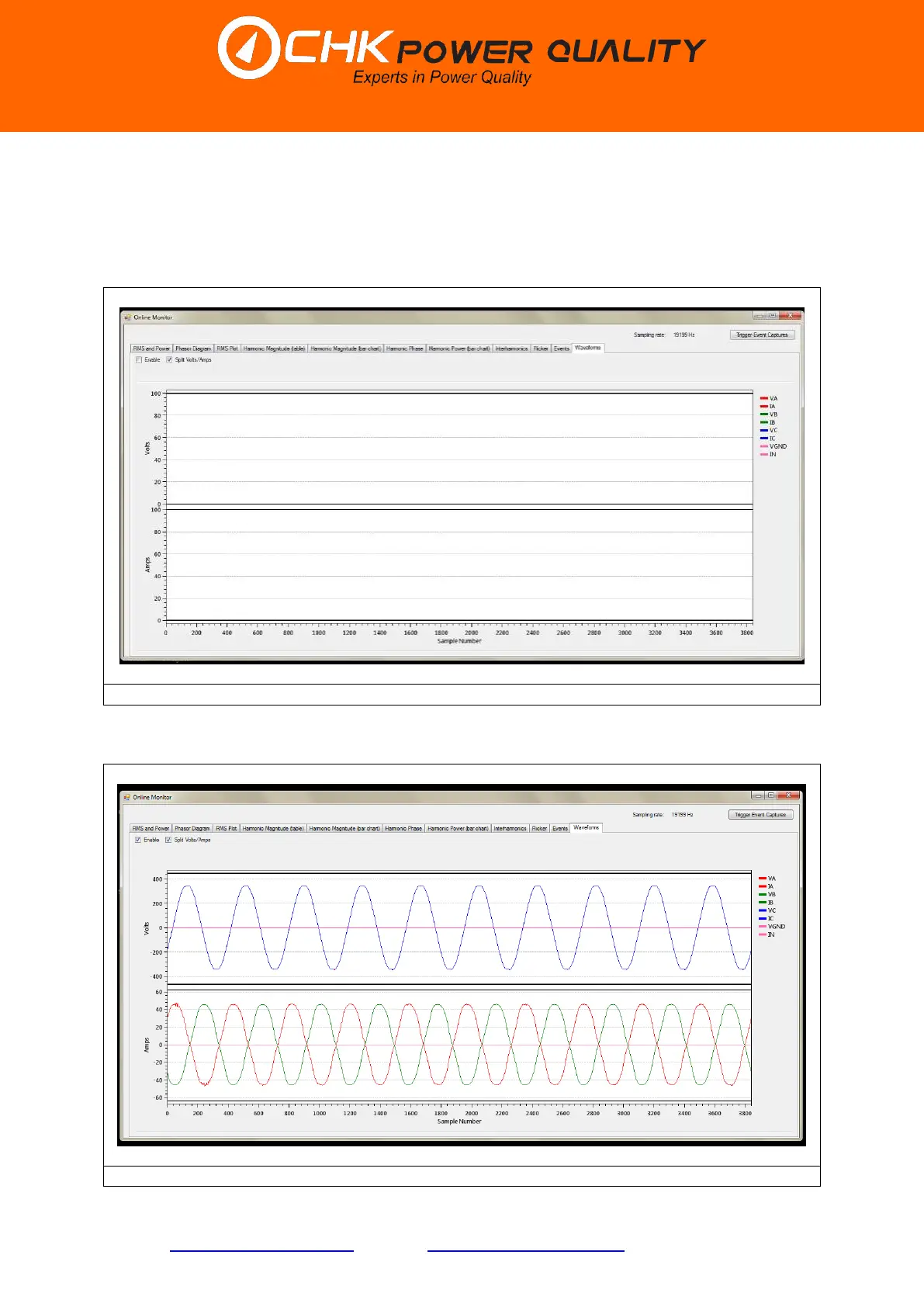

Figure 5.3.15.1
Select the ‘Enable’ checkbox to view channels as shown in figure 5.3.15.2.
Figure 5.3.15.2
