The index is a dimensionless number and displayed on the right hand side of the graph.
5.9.4.5 Temperature

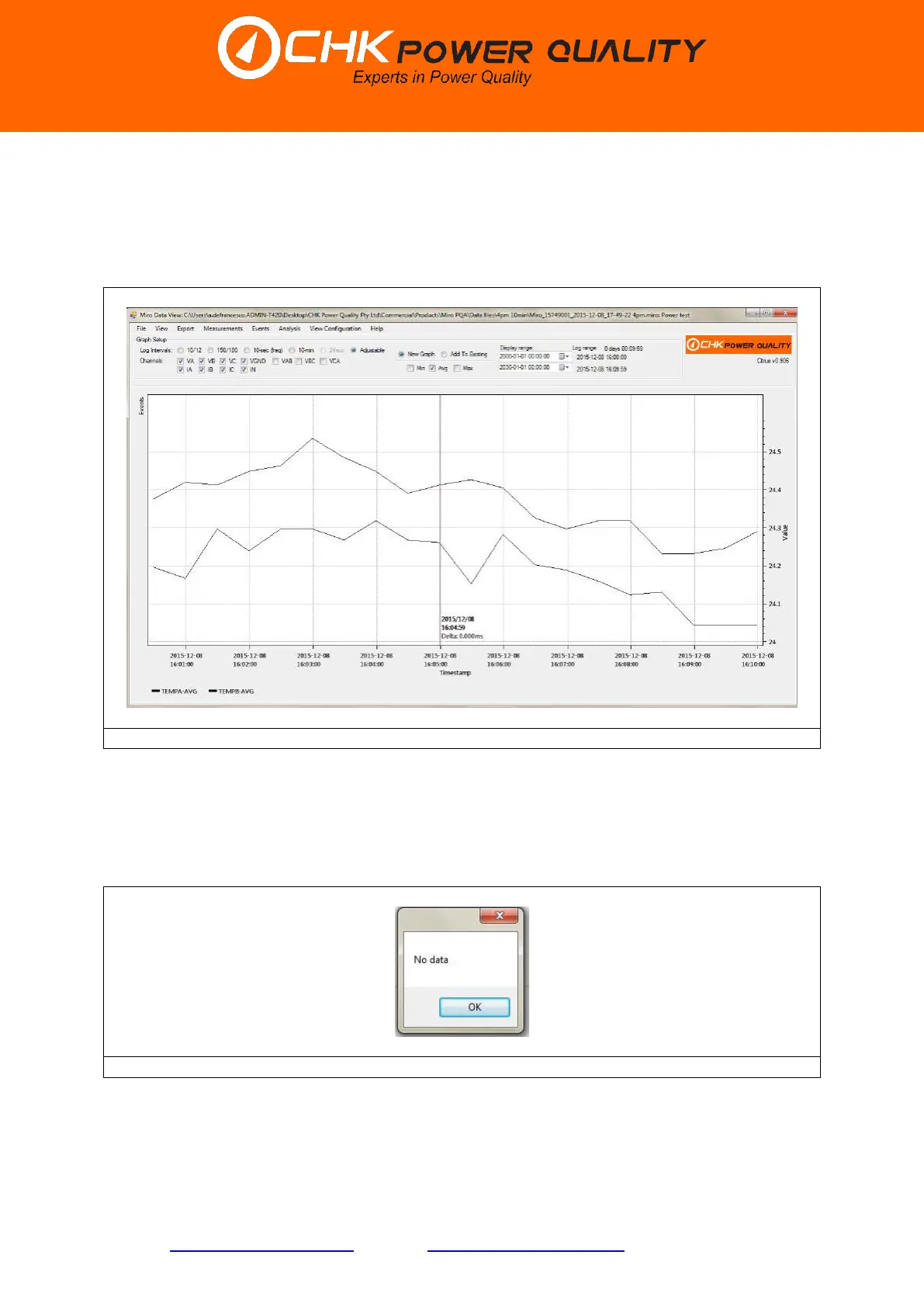

Clicking on ’Temperature’ in the ‘Measurements’ menu generates a graph as shown in figure
5.9.4.5.1.
Figure 5.9.4.5.1
The temperature values are in degrees Celsius and displayed on the right hand side of the
graph.
If no temperature values are logged then a message box appears as shown in figure
5.9.4.5.2.
Figure 5.9.4.5.2
