CHK Power Quality MIRO PQ25 User Manual

CHK Power Quality Pty Ltd, User Manual – Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 13
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au
1.2.3.3 Other
Part number
Description
Instrument
Quantity
required
TBA
Regulated DC adaptor
PQ25/35/45
1
TBA
GPS antenna
PQ25/35/45
1
TBA
Cellular antenna
PQ25/35/45
1
TBA
Cellular communications card
PQ25/35/45
1
TBA
WiFi communications card
PQ25/35/45
1
TBA
CITRUS Lite application Software
PQ25/35/45
1
TBA
CITRUS application Software CD
PQ25/35/45
1
TBA
User manual PQx5
PQ25/35/45
1
1ACBP4
Cary bag
PQ25/35/45
1
SA7002-A
Temperature sensor (free end)
PQ25/35/45
1
SA7002-M
Temperature sensor (magnetic mount)
PQ25/35/45
1
TBA
USB communications lead for PQx5
PQ25/35/45
1
TBA
DC probe 500A
PQ25/35/45
/4
TBA
3.2V 1.5Ah backup battery for PQx5
PQ25/35/45
1
TBA
3.2V 3.2Ah backup battery for PQx5
PQ25/35/45
1
1.3 Power options
The MIRO can be powered in the following ways:
 Voltage channel A:
o Single supply cable adaptor; or
o Voltage clamp lead.
 External DC supply: DC adaptor provided.
 USB port: Only for configuration and data download.

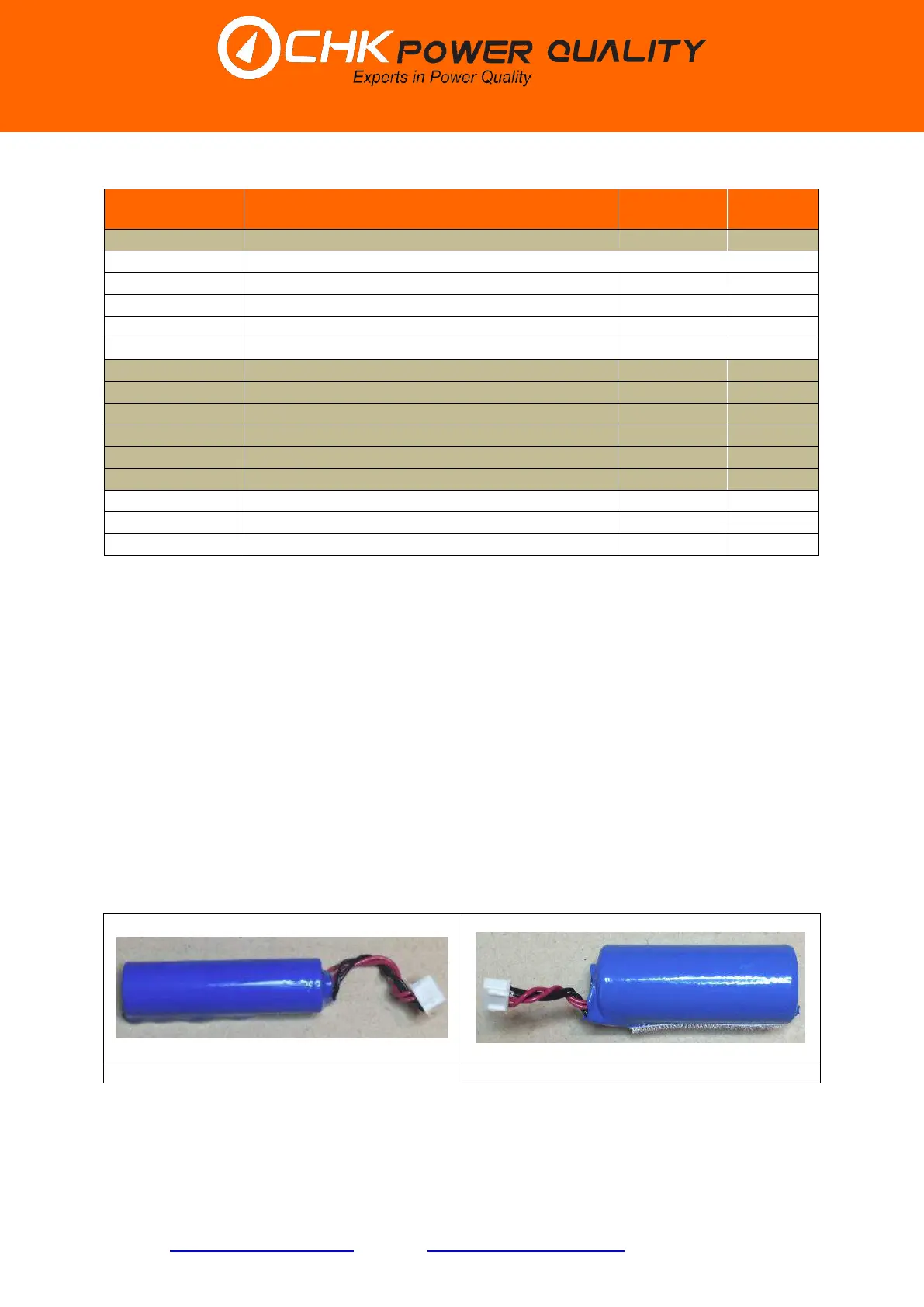

1.4 Internal backup battery
The Miro is powered by a single rechargeable Lithium iron phosphate battery 3.2V 1.5Ah or
3.2Ah as shown in figures 1.4.1 and 1.4.2.
Figure 1.4.1
Figure 1.4.2
The instrument is factory set for a standard back-up time of 5 minutes after which it switches
itself off. The instrument can be pre-configured for extended back-up times. Please contact
CHK Power Quality Pty Ltd for more information.
