CHK Power Quality MIRO PQ25 User Manual

CHK Power Quality Pty Ltd, User Manual – Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 52
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au
Figure 5.4.3.3
Figure 5.4.3.4

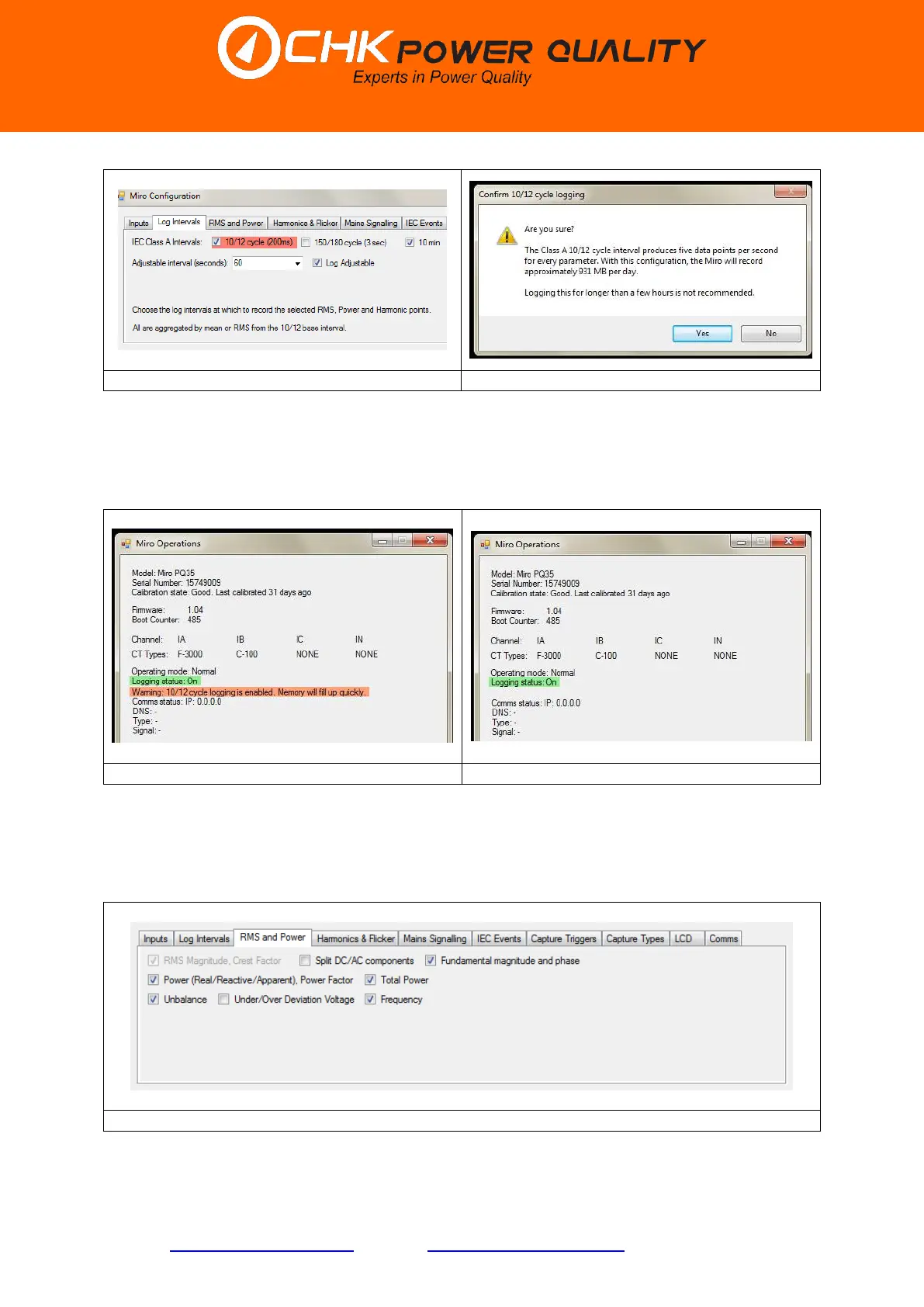

If the 10/12 cycle log interval is selected a warning message appears on the ‘Miro
Operations’ window (as shown in figure 5.4.3.5) alerting the user that this selection will
consume memory. As shown in figure 5.4.3.6, the message disappears when the 10/12
cycle log interval is deselected.
Figure 5.4.3.5
Figure 5.4.3.6
5.4.4 RMS and Power
The ‘RMS and Power’ tab shown in figure 5.4.4.1 provides key power quality parameters
grouped together.
Figure 5.4.4.1
