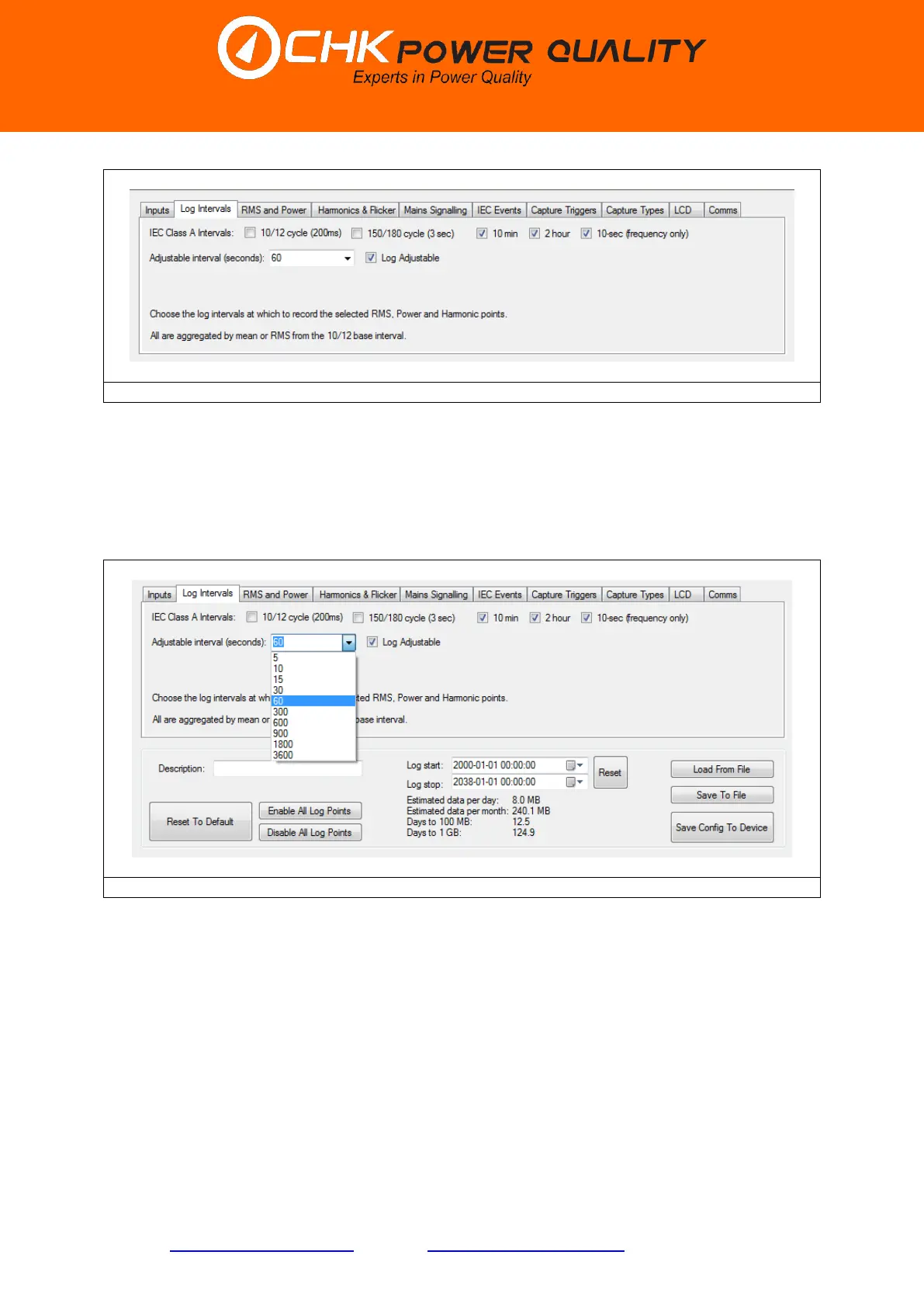

Figure 5.4.3.1
Selectable log intervals include: 10/12 cycle (50Hz / 60Hz); 150/180 cycle (50Hz / 60Hz); 10
minute; 2 hours; 10 sec. (frequency only); and Adjustable.
The ’Adjustable interval’ is settable from 1 second to 3600 seconds. The user is able to click
in the cell and alter the value or click on the arrow to expand the drop down box as shown in
figure 5.4.3.2 which provides suggested values.
Figure 5.4.3.2
The default adjustable log interval is set to 60 seconds.
If the 10/12 cycle log interval is selected:
1. The ‘10/12 cycle (200ms)’ text is highlighted with a red background as shown in
figure 5.4.3.3;
2. A message box appears as shown in figure 5.4.3.4 warning the user of the additional
significant daily memory usage; and
3. A warning message appears on the ‘Miro Operations’ window (as shown in figure
5.4.3.5) alerting the user that this selection will consume memory. As shown in figure
5.4.3.6, the message is removed when the 10/12 cycle log interval is deselected.
