CHK Power Quality Pty Ltd, User Manual Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 160
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au

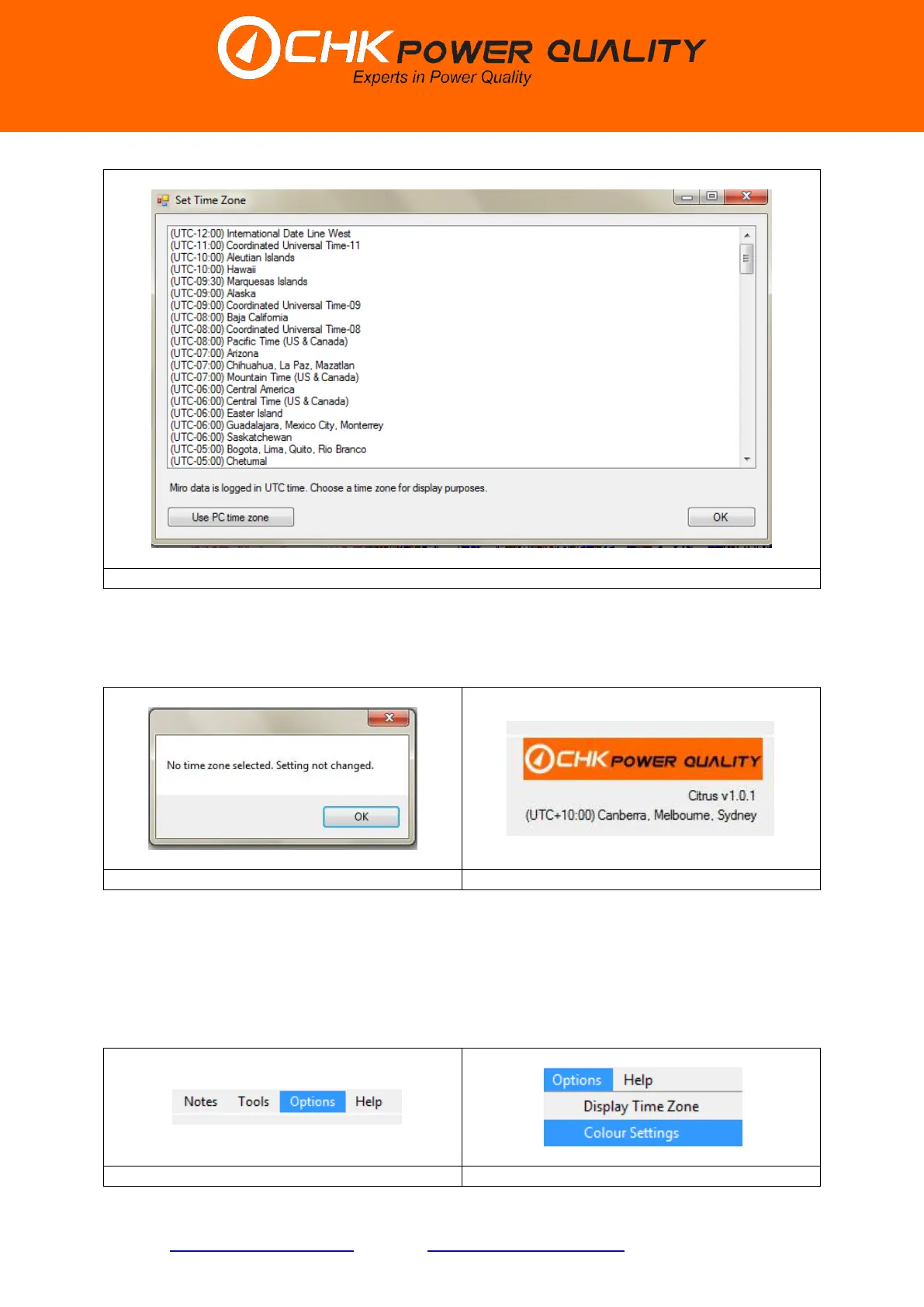

Figure 5.9.11.1.3
Step 3: Click the ’OK’ button. If no time zone has been selected then a message box
appears as shown in figure 5.9.11.1.4. The updated time zone appears just under the Citrus
software version number as shown in figure 5.9.11.1.5.
Figure 5.9.11.1.4
Figure 5.9.11.1.5
5.9.11.2 Colour settings
The user is able to alter the colour settings.
Step 1: Click the ’Options’ menu shown in figure 5.9.11.2.1 A drop down box appears as
shown in figure 5.9.11.2.2.
Figure 5.9.11.2.1
Figure 5.9.11.2.2
