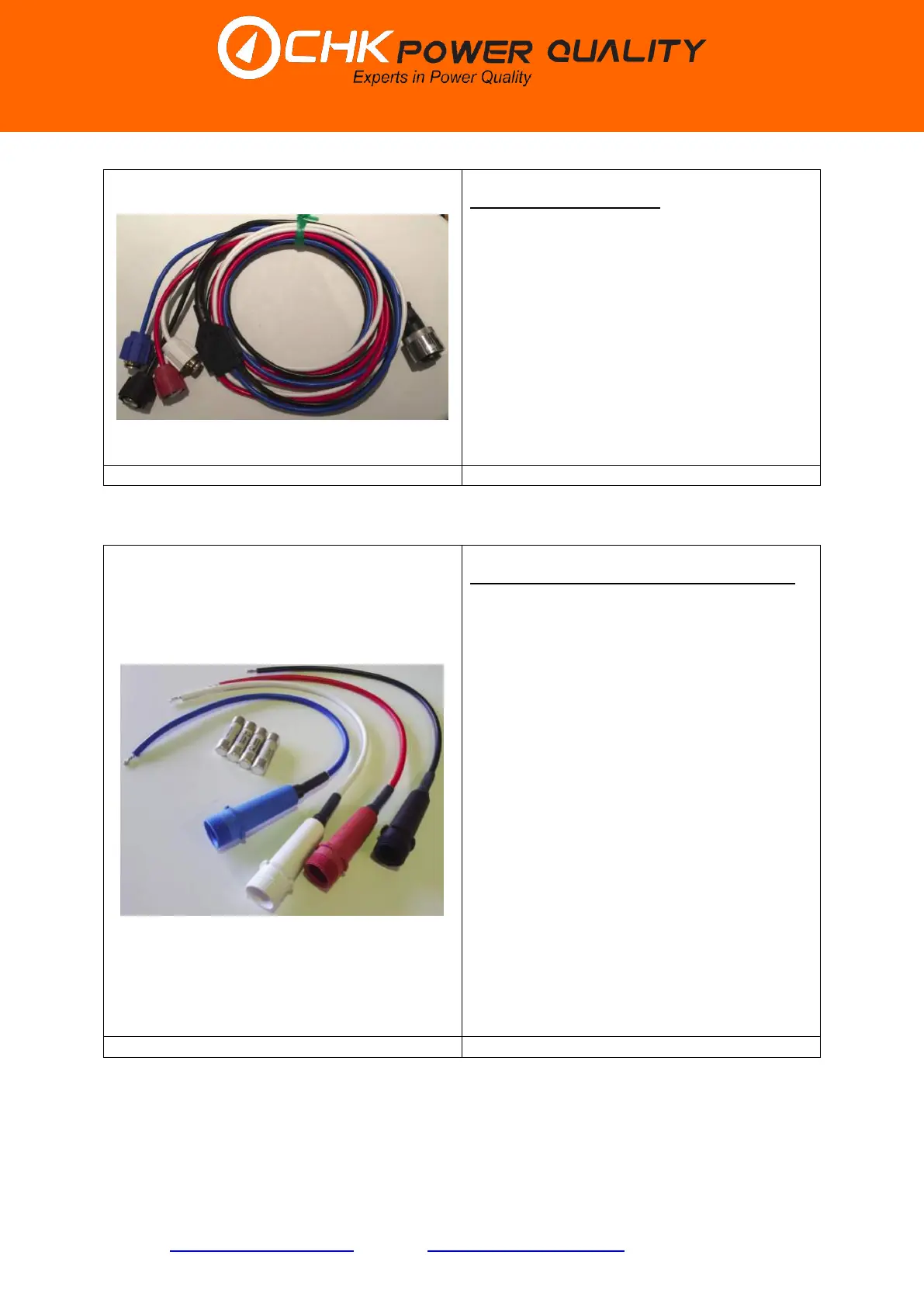

Fused three phase lead
Part number: 1AVL4.
Instrument: PQ25 and PQ35.
Connection: 3 phase star/wye.
Power source: Phase A to Neutral.
Termination: Fused end.
Number of wires: 4 (3P + N).
Weight: 400g.
Cable length: 2m.
Environment: Indoor / outdoor.
Attachments: 1AAC4TE; 1AAC4BC.
Figure 9.1.3.2.1
9.1.3.3 VL4 voltage lead attachments
Tinned end fused attachment with fuses
Part numbers:
1 x AC4TE/BK (Fused tinned end Black);
1 x AC4TE/BU (Fused tinned end Blue);
1 x AC4TE/RD (Fused tinned end Red);
1 x AC4TE/WH (Fused tinned end White);
and
4 x FSHD2A10x38 (fuse).
The above parts are normally sold in a set as
1AAC4TE.
Instrument: PQ25 and PQ35.
Connection: Three phase star/wye.
Termination: Fused end.
Number of wires: 4 (3P + N).
Weight: 150g.
Cable length: 20cm.
Environment: Indoor / outdoor.
Attachments: VL3 (AC4TE/BK and one fuse
not required), VL4.
Fuses: 2A 500V HRC, (10 x 38) mm.
Figure 9.1.3.3.1

CHK Power Quality MIRO PQ25 Specifications

General

Device Type	Power Quality Analyzer
Frequency Range	45 Hz to 65 Hz
Harmonics	Up to 50th order
Communication Interfaces	USB, Ethernet
Safety Standard	IEC 61010-1
Accuracy	±0.5% of reading
Dimensions	240 x 180 x 80 mm
Weight	1.5 kg
Display	Color LCD
Data Logging	Yes, with internal memory
Power Supply	50/60 Hz
Current Range	Depends on CT used
Power Range	Calculated based on voltage and current input
