11.4.2 Single phase (VL5 cable)

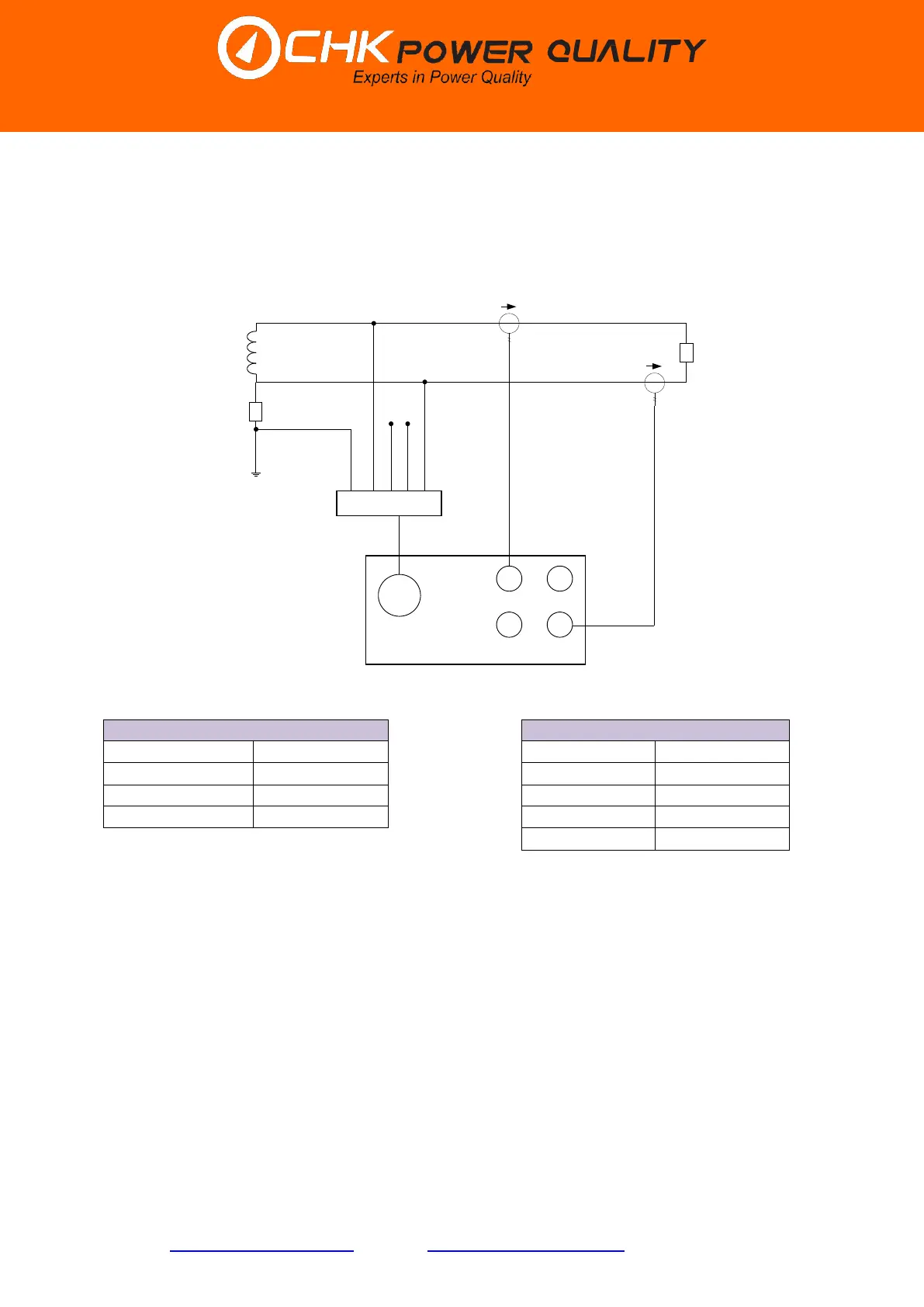

a. Connection diagram using a 5-Wire Voltage Cable (VL5).
b. NC (not connected).
Circuit summary table
Voltage lead connection
Source
Single Phase
Phase A
Red
Load
Single Phase
Phase B
White
Connection type
Star/Wye
Phase C
Blue
Nominal RMS
Phase-Neutral
Neutral
Black
Gnd
Green
Voltage
Current
A
B
C
N
Source
Load
Phase A
(
Line
)
VL5
Neutral
NC
NC
Red
Blue
Black
White
Optional
Gnd
