5.9.13.6 Timeframes

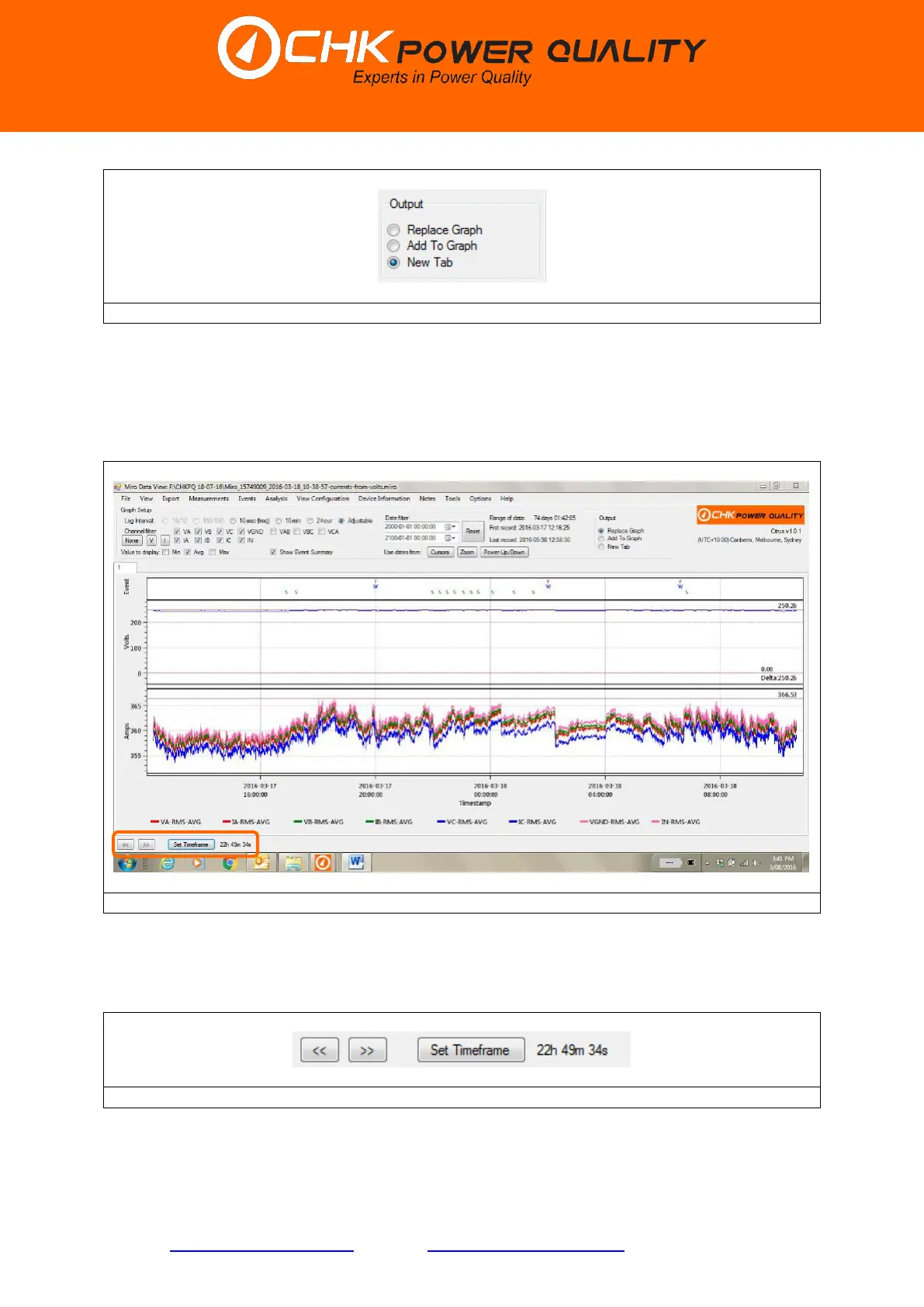

The timeframe of the display can be adjusted using the tools shown in figure 5.9.13.6.1 at
the bottom left hand corner beneath the display. These tools which include a left arrow, right
arrow and ‘Set Timeframe’ buttons are highlighted in figure 5.9.13.6.2.
Figure 5.9.13.6.1
The user can set the display to view particular timeframes and include: Hour; Day; Week;
and Month and which can be selected from a list, shown in figure 5.9.13.6.3, which appears
upon clicking the ‘Set Timeframe’ button shown in figure 5.9.13.6.2.
Figure 5.9.13.6.2
