10 Instrument voltage connector pinouts
10.1 PQ25 and PQ35

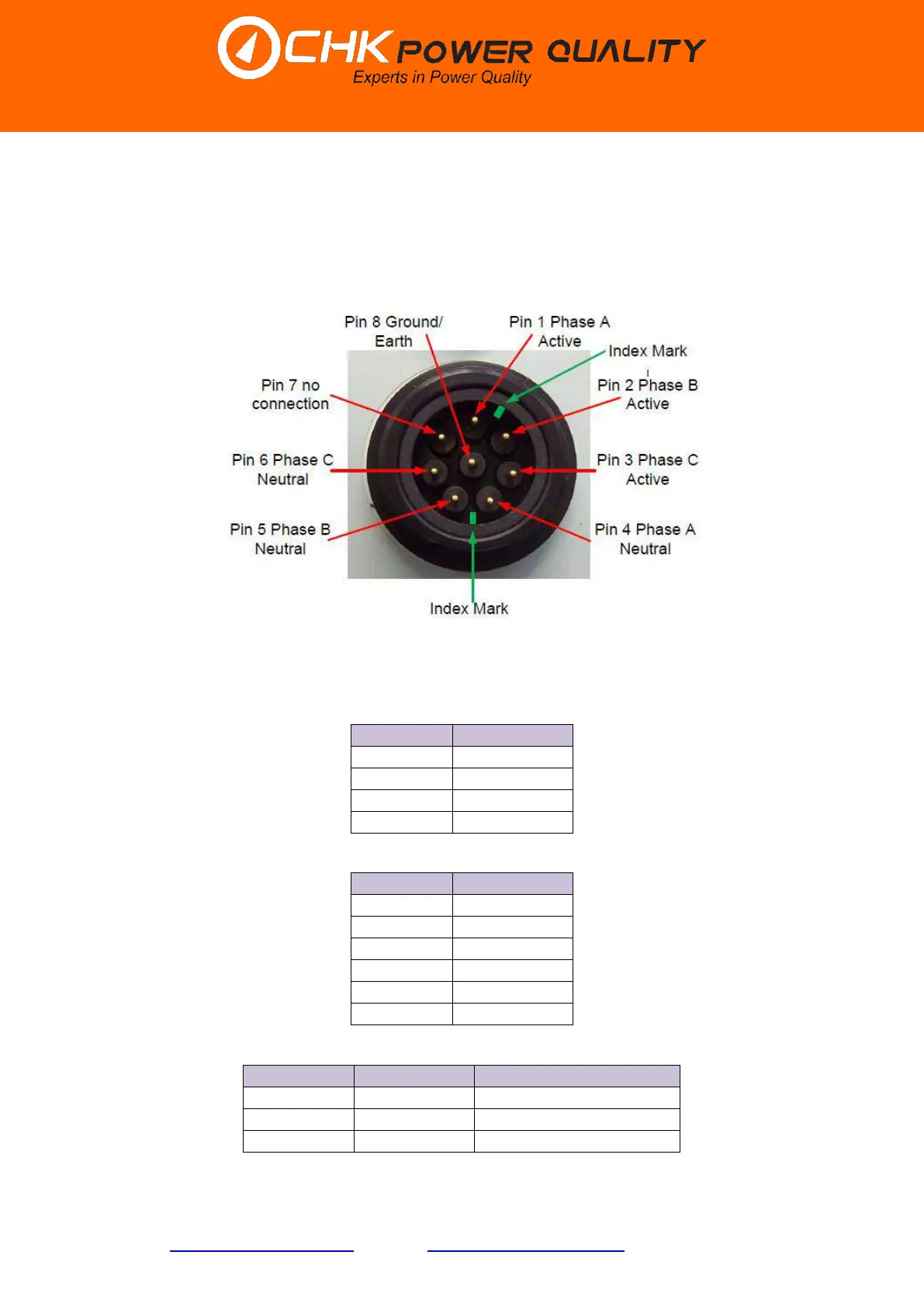

The voltage leads use an 8 way connector with pin numbers shown below:
Connector on the instrument
The connection tables are given below:
VL4
Description
Pin number
Phase A
1
Phase B
2
Phase C
2
Neutral
4, 5 & 6
VL6
Description
Pin number
Phase A
1
Neutral A
4
Phase B
2
Neutral B
5
Phase C
3
Neutral C
6
PC4
Description
Pin number
Australasia GPO pins
Phase A
1
Active
Neutral A
4
Neutral
Ground
7
Earth
