CHK Power Quality MIRO PQ25 User Manual

CHK Power Quality Pty Ltd, User Manual – Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 119
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au

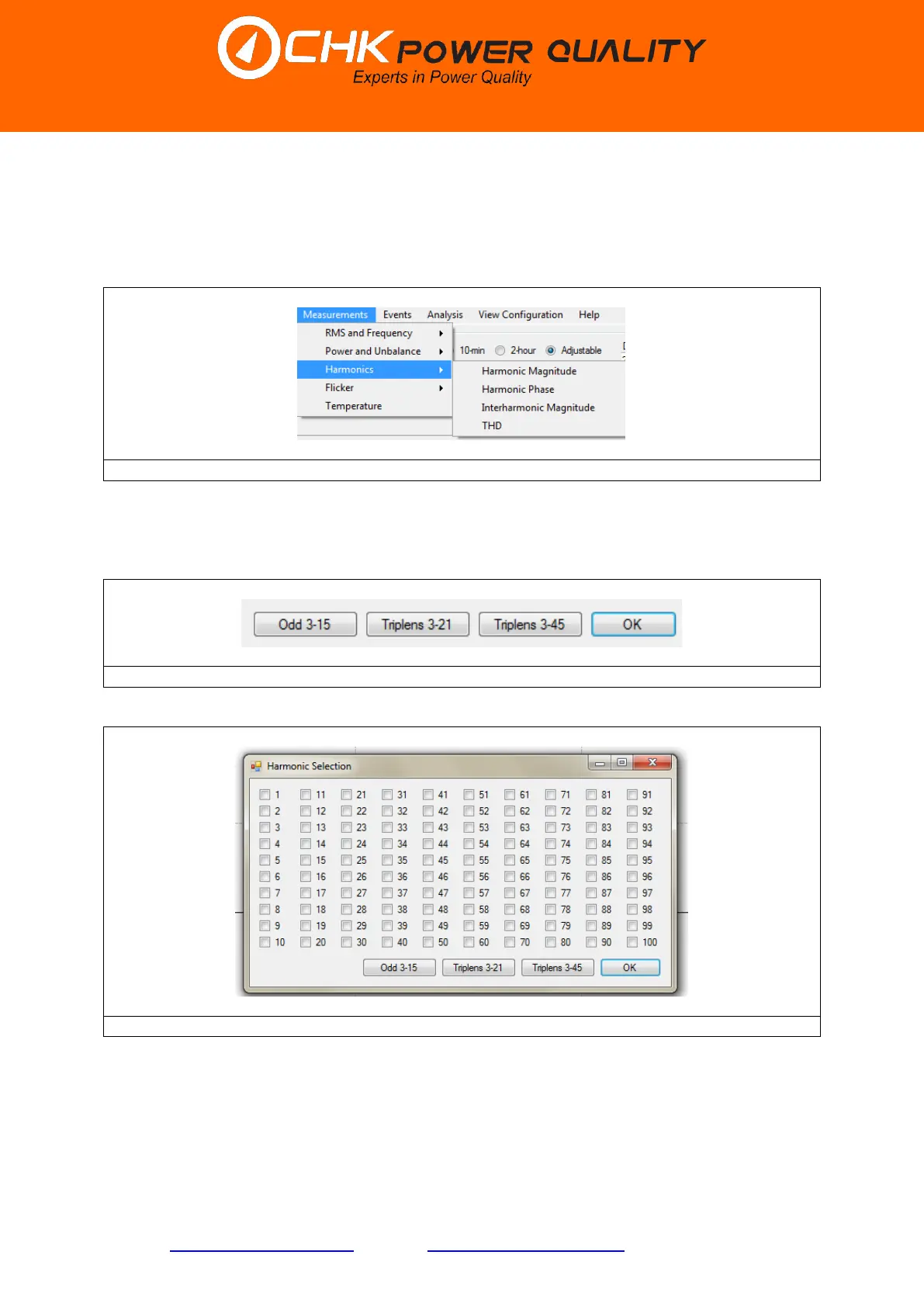

5.9.4.3 Harmonics
Clicking on ’Harmonics’ in the ‘Measurements’ menu generates a sub menu listing
’Harmonic Magnitude’, ‘Harmonic Phase’, ‘Interharmonic Magnitude’ and ‘THD’ measures as
shown in figure 5.9.4.3.1.
Figure 5.9.4.3.1
Clicking on ’Harmonic Magnitude’ generates another form with checkboxes to select up to
100 harmonics as shown in figure 5.9.4.3.2. The form also provides option buttons to select
harmonic groups as shown in figure 5.9.4.3.3.
Figure 5.9.4.3.3
Figure 5.9.4.3.2
Clicking on ’Harmonic Phase’ generates another form with checkboxes to select up to 50
harmonics as shown in figure 5.9.4.3.4. The form also provides option buttons to select
harmonic groups as shown in figure 5.9.4.3.3.
