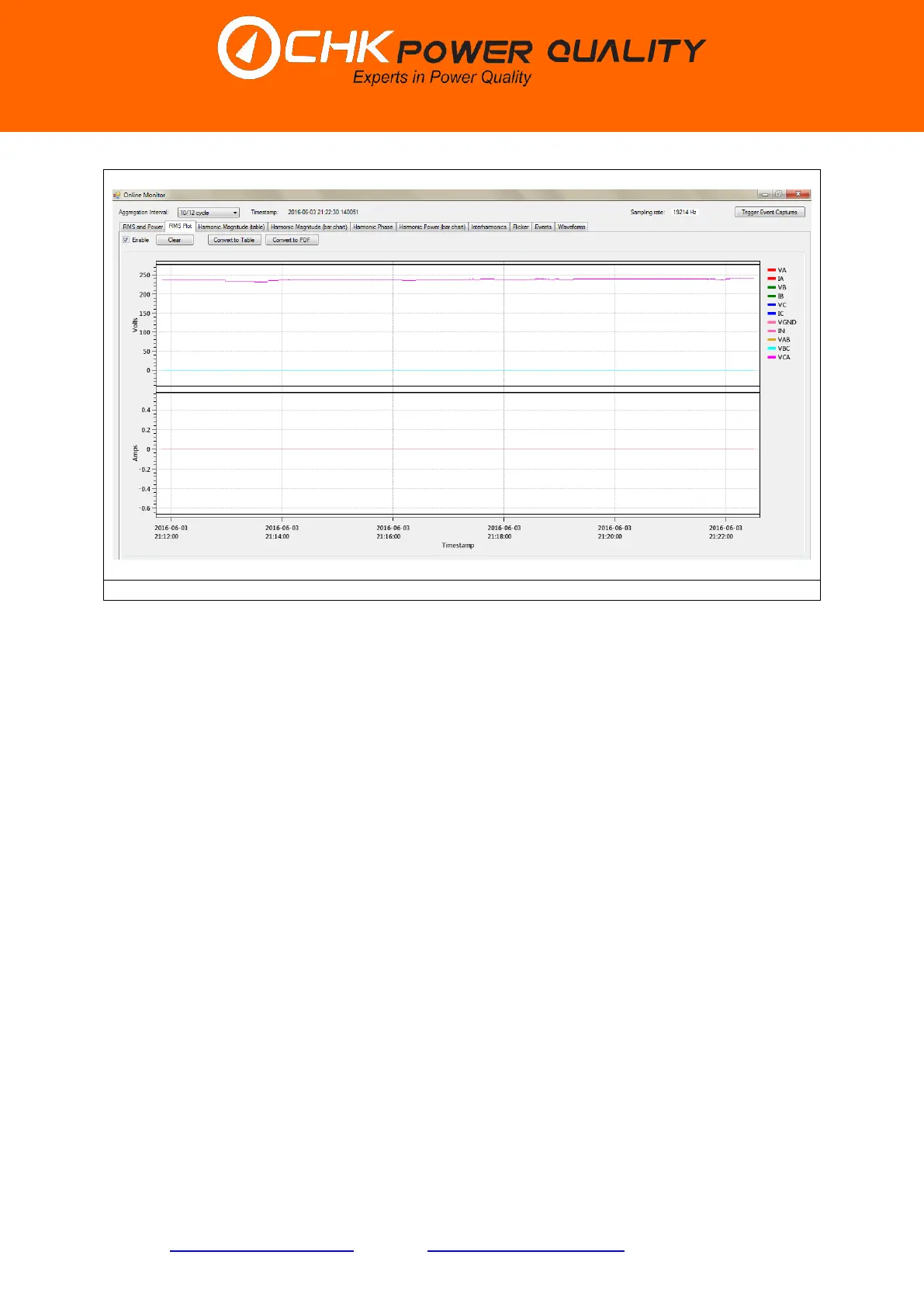

Figure 5.3.7.1
5.3.8 Harmonic magnitude (table)
The ‘Harmonic Magnitude (table)’ screen displays the rms value for each voltage and current
harmonic up to and including the 50
th
harmonic as shown in figure 5.3.8.1. The total
harmonic distortion (THD) is also calculated for each channel.
The user has the option to view values as ‘RMS Magnitude’ or ‘% of H1’ (percent of
fundamental). The default value is set to ‘RMS Magnitude’.
