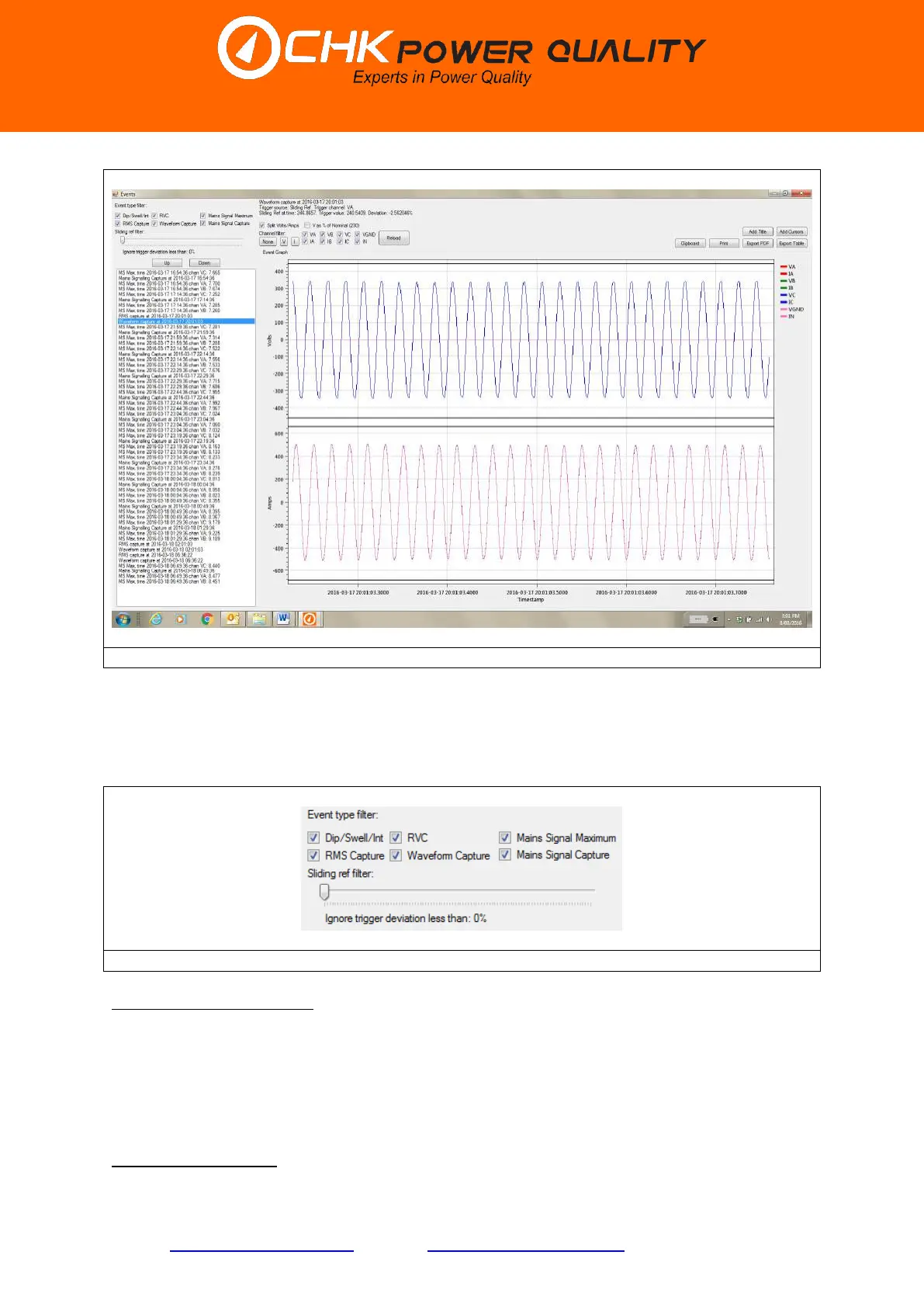

Figure 5.9.5.2
5.9.5.1 Event filters
Two event filters provided: (a) Check box event type filters; and (b) Sliding reference filter
(minimum deviation control slider).
Figure 5.9.5.1.1
Check box event type filter
The checkbox type include: ‘Dip/Swell/Int’; ‘RMS Capture’; ‘RVC’; ‘Waveform Capture’;
‘Mains Signal Maximum’; and ‘Mains Signal Capture’.
The checkboxes allow the user to restrict the visibility of events and hence reduce the events
populated in the list box as shown in figure 5.9.5.1.2.
Sliding reference filter
