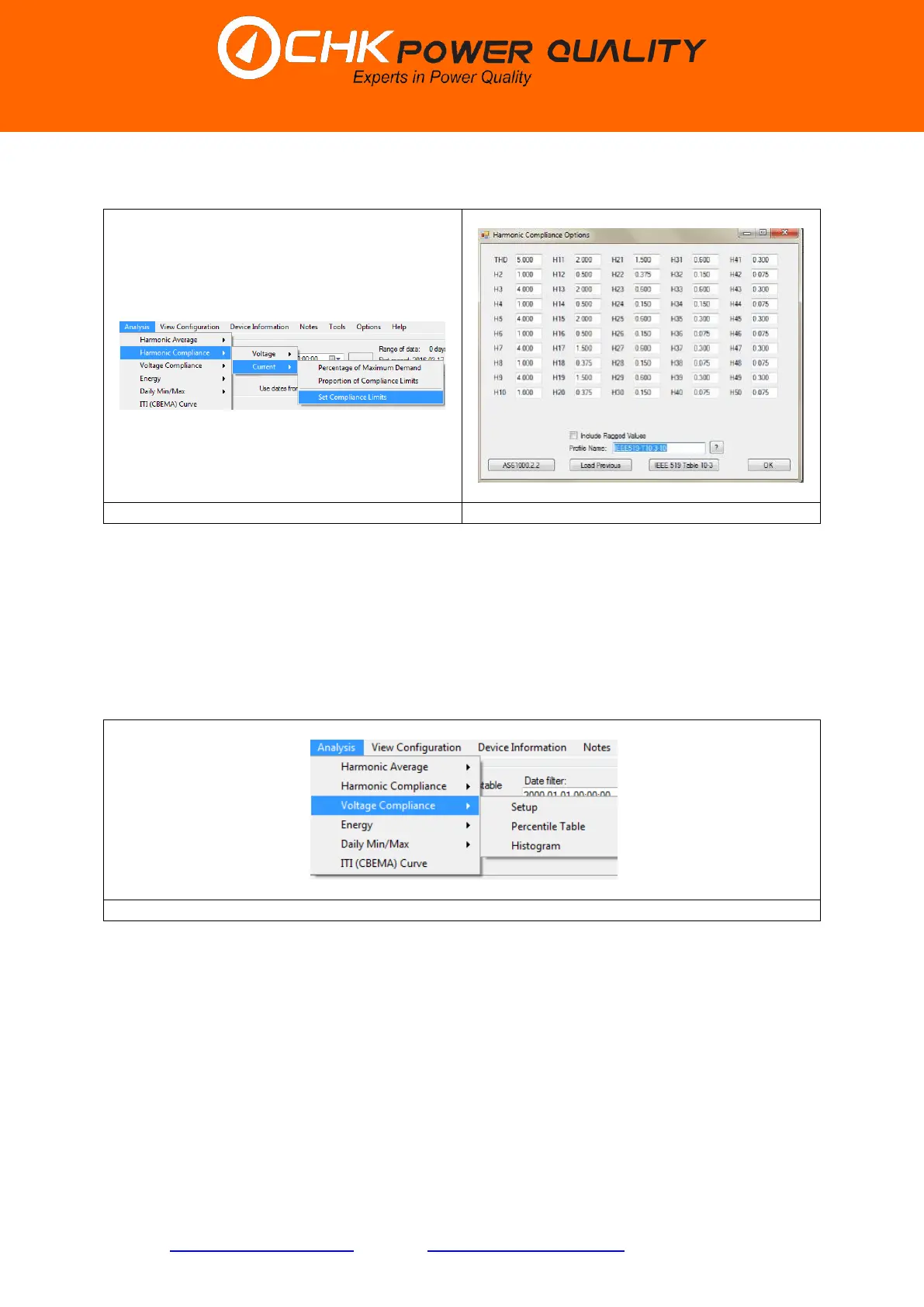

Clicking on the ’Set Configuration Limits’ as shown in figure 5.9.6.2.13 opens a form as
shown in figure 5.9.6.2.14 that allows the user to alter the limits for each harmonic.
Figure 5.9.6.2.13
Figure 5.9.6.2.14
Limits can also be loaded from two predefined standards that include AS61000.2.2 and
IEEE519 table 10-3, or from a saved file.
5.9.6.3 Voltage compliance
Clicking on the ’Voltage Compliance’ button opens another submenu providing options to
select either ‘Setup’, ‘Percentile Table’ or ‘Histogram’ as shown in figure 5.9.6.3.1.
Figure 5.9.6.3.1
Clicking on the ’Setup’ opens a form as shown in figure 5.9.6.3.2 that allows the user to alter
the compliance parameters that affect the histogram and percentile tables.
The ‘Lower bound’ and the ‘Upper bound’ phase to neutral and phase to phase voltages sets
the bin range on the x axis.
