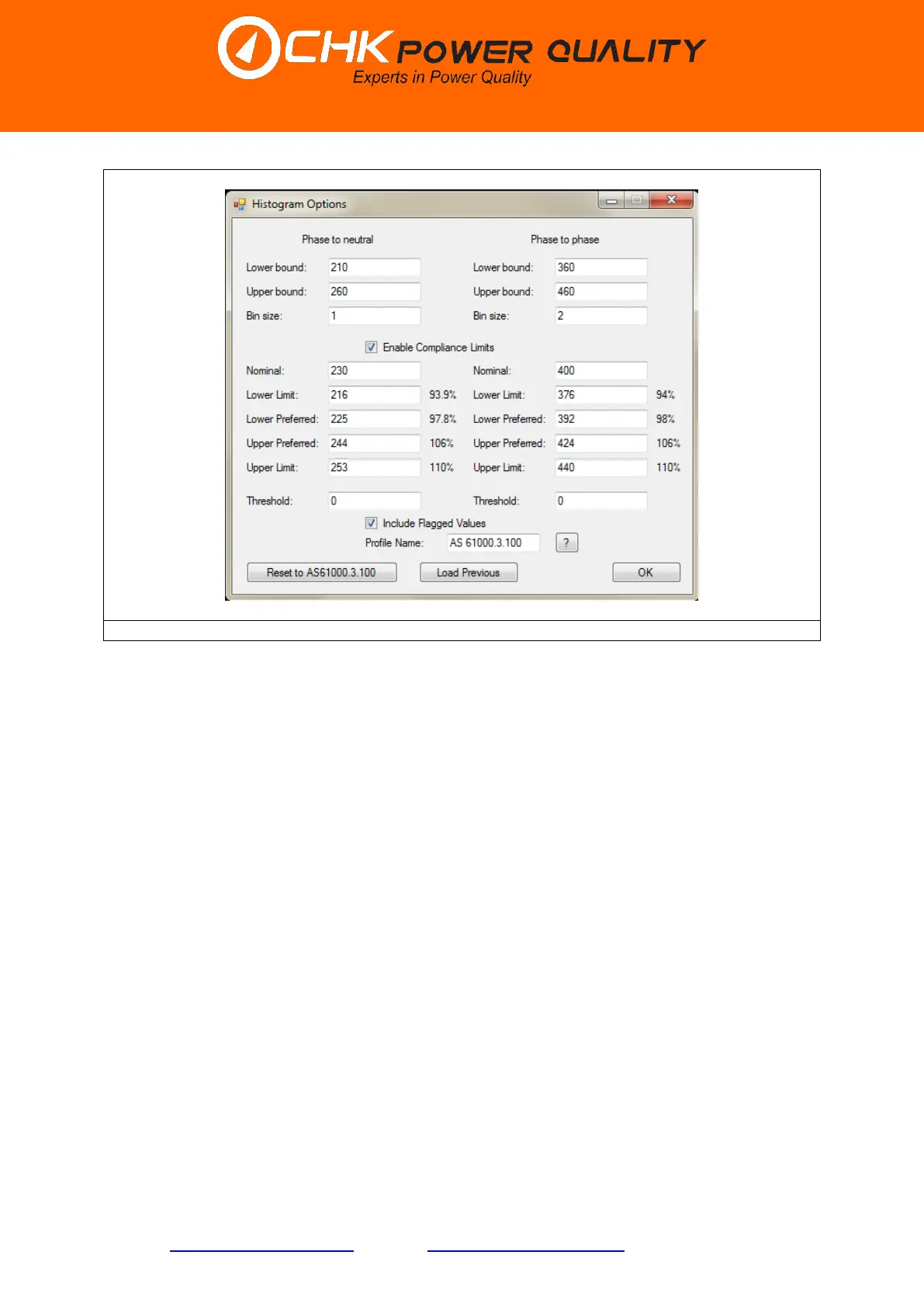

Figure 5.9.6.3.2
The voltage values for the ‘Lower Limit’, ‘Upper Limit’, ‘Lower Preferred’ and ‘Upper
Preferred’ set the two regions on the graph.
The percentiles are calculated for voltages that exceed the ‘Threshold’ voltage and therefore
useful in discarding from the analysis voltages below the threshold.
Clicking on the ’OK’ button automatically saves the profile with the current ‘Profile Name’.
The user is able to load a profile by clicking on the ‘Load Previous’ button. A list box appears
allowing the user to select a profile. The name of the selected profile appears to the right of
the ‘Profile Name’ label.
As shown in figure 5.9.6.3.3 the ‘Percentile Table’ summaries key statistical metrics and
indicate if the metrics are in or out of compliance (above or below the upper and lower
limits).
