CHK Power Quality MIRO PQ25 User Manual

CHK Power Quality Pty Ltd, User Manual – Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 144
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au

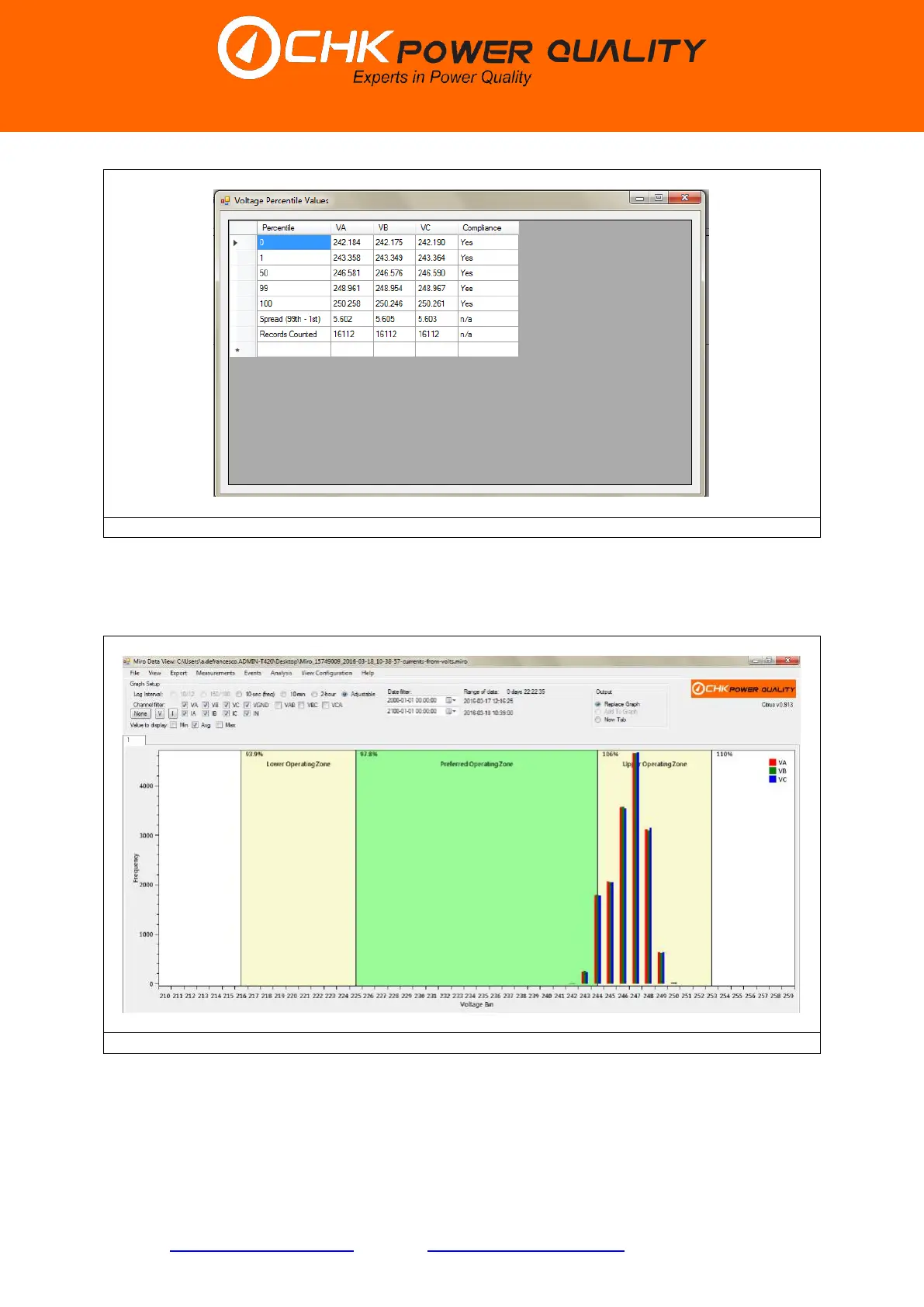

Figure 5.9.6.3.3
Figure 5.9.6.3.3 shows that all channel metrics are in compliance. The corresponding
histogram can be generated by clicking on ‘Histogram’ button and is shown in figure
5.9.6.3.4.
Figure 5.9.6.3.4
The user can restrict the voltage compliance analysis to any combination of VA, VB and VC
by selecting the desired channels in ’Graph Setup’ as shown in figure 5.9.6.3.5.
