9.2 Current probes
We can customise current probes for specific applications. Please contact our sales team to
assist you further.

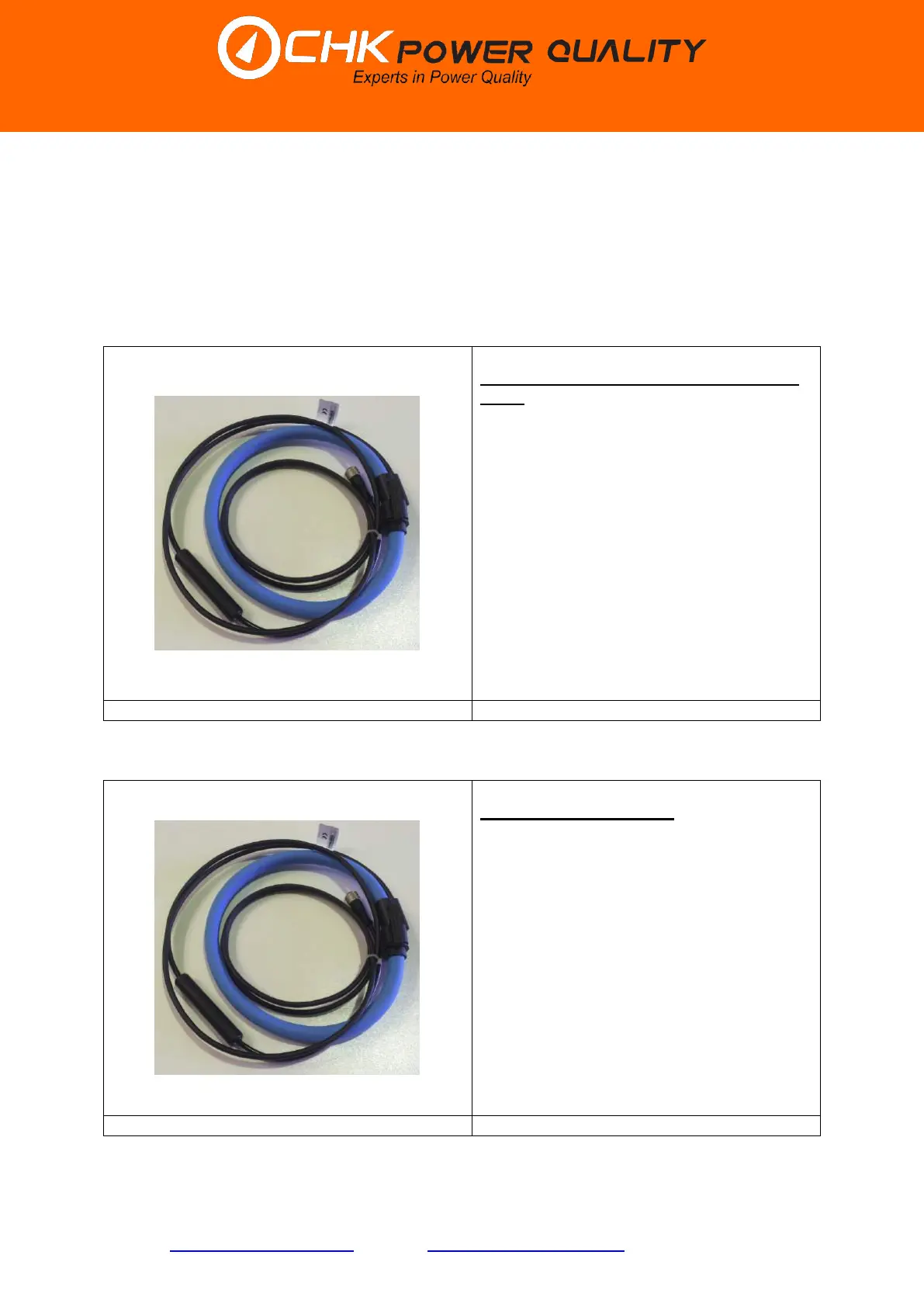

9.2.1 PQ35 current probes
9.2.1.1 Flexible high sensitivity coil F-500/3000 (Red)
Flexible high sensitivity coil F-500/3000
(Red)
Part number: 1AFF3000-6-H.
Instrument: PQ25 and PQ35.
Output signal: 250mV/500A @ 50Hz.
Frequency range: 20Hz to 5kHz.
Accuracy: ±1% (Calibrated).
Linearity: ±0.2% (Calibrated).
Coil length: 600mm.
Weight: 300g.
Cable length: 2m.
Environment: Indoor / outdoor.
Protection level: CAT IV 600V.
Colour: Red.
Figure 9.2.1.1.1
9.2.1.2 Flexible coil 3000 (Blue)
Flexible coil 3000 (Blue)
Part number: 1ACF3000-6 (3000A).
Instrument: PQ25 and PQ35.
Output signal: 100mV/kA @ 50Hz.
Frequency range: 20Hz to 5kHz.
Accuracy: ±1% (Calibrated).
Linearity: ±0.2% (Calibrated).
Coil length: 600mm.
Weight: 300g.
Cable length: 2m.
Environment: Indoor / outdoor.
Protection level: CAT IV 600V.
Colour: Blue.
Figure 9.2.1.2.1
