CHK Power Quality MIRO PQ25 User Manual

CHK Power Quality Pty Ltd, User Manual – Miro Power Quality Logger and Analyser, 15 August 2016
Website: www.chkpowerquality.com.au; Enquiries: sales@chkpowerquality.com.au; Page 171
Address: Unit 1, 3 Tollis Place, Seven Hills, NSW 2147, Sydney, Australia; ABN: 53 169 840 831; Telephone: +61 2 8283 6945;
Fax: +61 2 8212 8105; Website: www.chkpowerquality.com.au

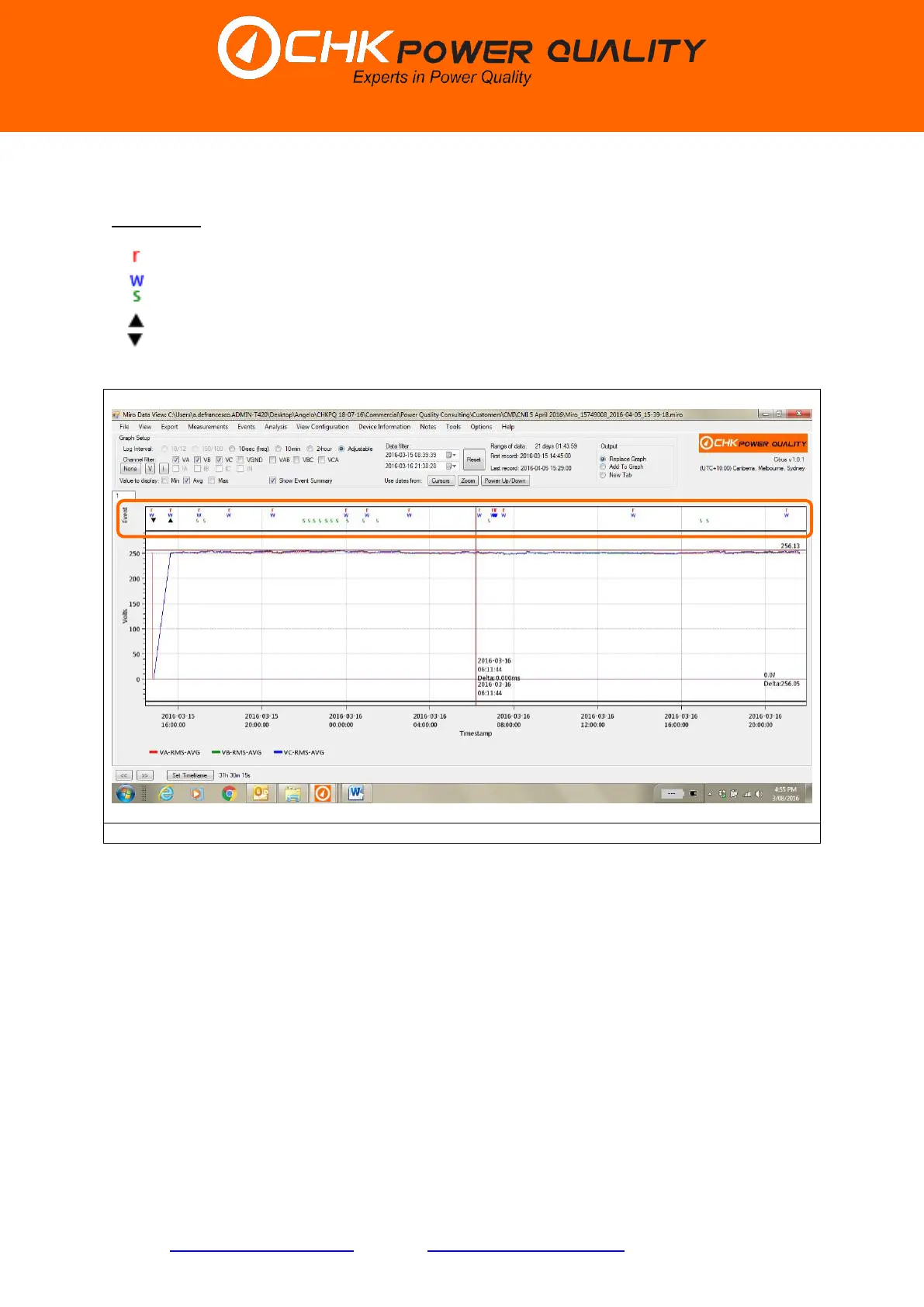

As shown in figure 5.9.13.7.1, the top of each graph has an event summary which quickly
summaries the types of events and when they occurred in time.
Event types
RMS event
Waveform event
Mains signalling event
Power up event
Power down event
Figure 5.9.13.7.1
The user is able to hide the event summary by unchecking the ‘Show Event Summary’ box
as shown in figure 5.9.13.7.2.
