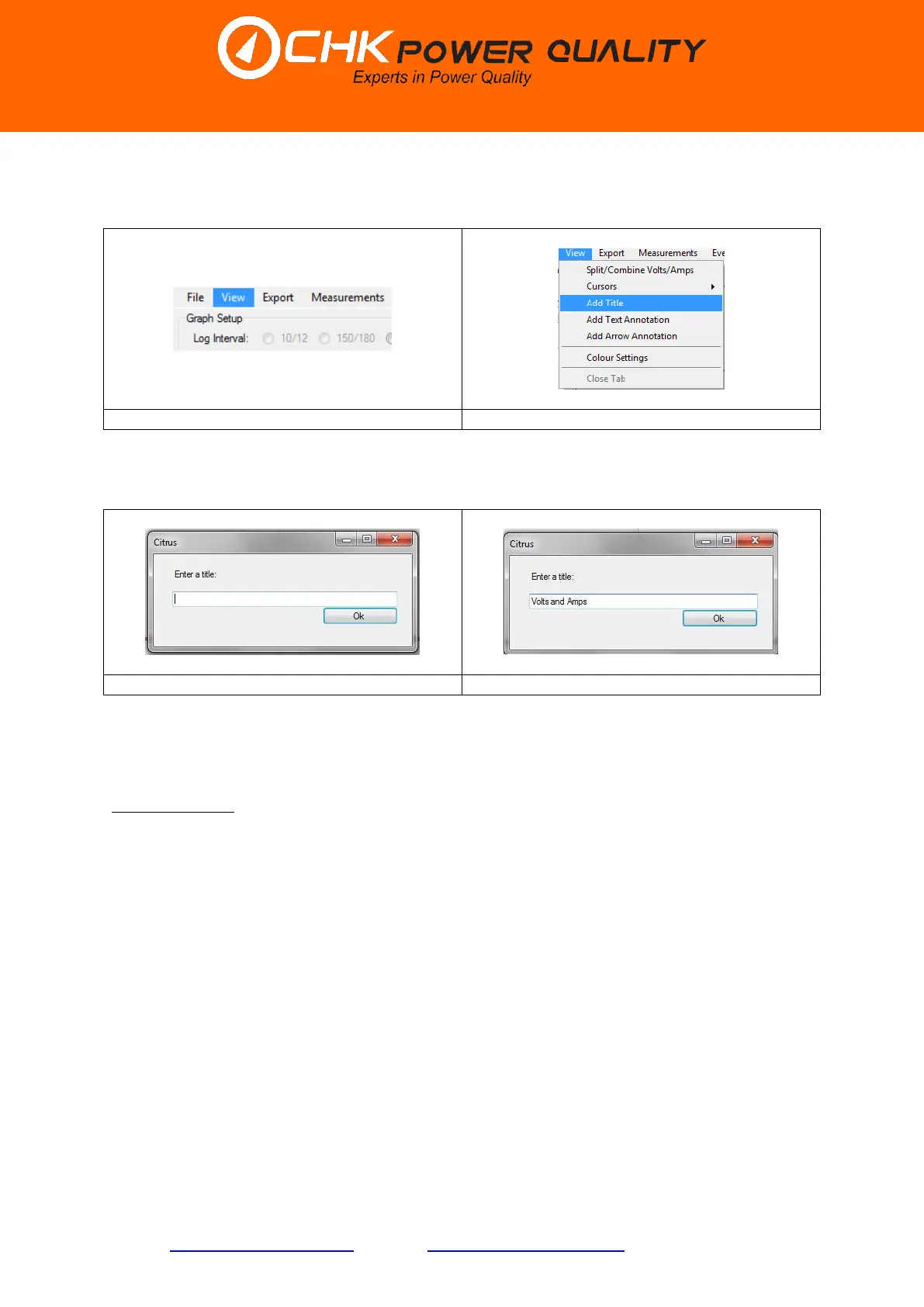

Step 1: Click the ’View’ menu shown in figure 5.9.2.3.1. A drop down box appears as shown
in figure 5.9.2.3.2.
Figure 5.9.2.3.1
Figure 5.9.2.3.2
Step 2: Hover and click on ’Add Title’. A message input box apears as shown in figure
5.9.2.3.3 asking to type in a title.
Figure 5.9.2.3.3
Figure 5.9.2.3.4
Step 3: Type in a title and click ’OK’. In this case the title entered is ’Volts and Amps’ as
shown in figure 5.9.2.3.4. The graph in figure 5.8.2.3.5 is now updated with the title ’Volts
and Amps’.
Removing a title
To remove a title from an existing graph, follow steps 1 and 2. Leave blank for step 3. The
title will be removed from the graph.
