Chronos 1.4 - Page 10

Page | 10

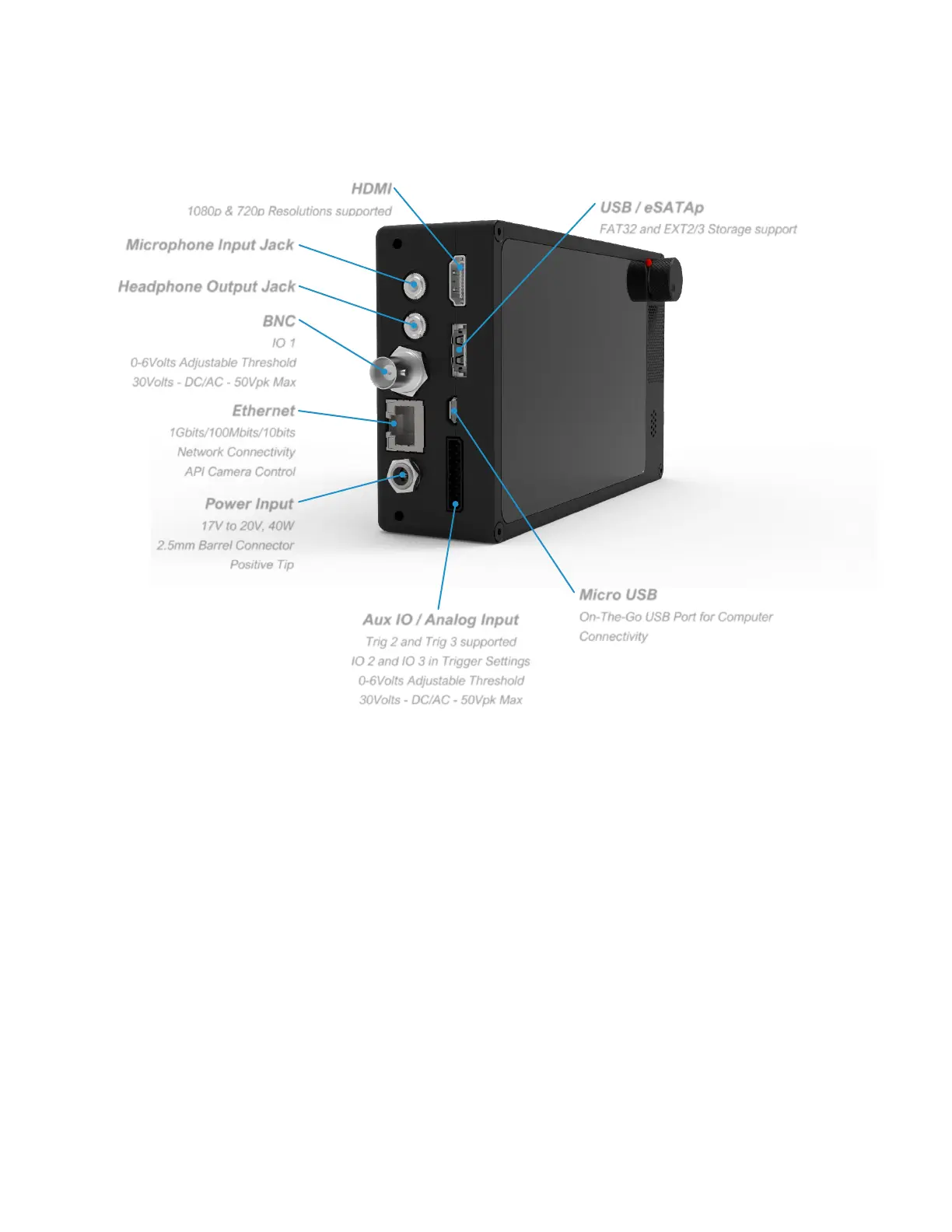

Power Input
17V to 20V, 40W
2.5mm Barrel Connector
Positive Tip
Aux IO / Analog Input
Trig 2 and Trig 3 supported
IO 2 and IO 3 in Trigger Settings
0-6Volts Adjustable Threshold
30Volts - DC/AC - 50Vpk Max
Ethernet
1Gbits/100Mbits/10bits
Network Connectivity
API Camera Control
Webpage Camera Control
Micro USB
On-The-Go USB Port for Computer
Connectivity
USB / eSATAp
FAT32 and EXT2/3 Storage support
BNC
IO 1
0-6Volts Adjustable Threshold
30Volts - DC/AC - 50Vpk Max
Headphone Output Jack
Microphone Input Jack
HDMI
1080p & 720p Resolutions supported
