TRIGGER / IO SETTINGS

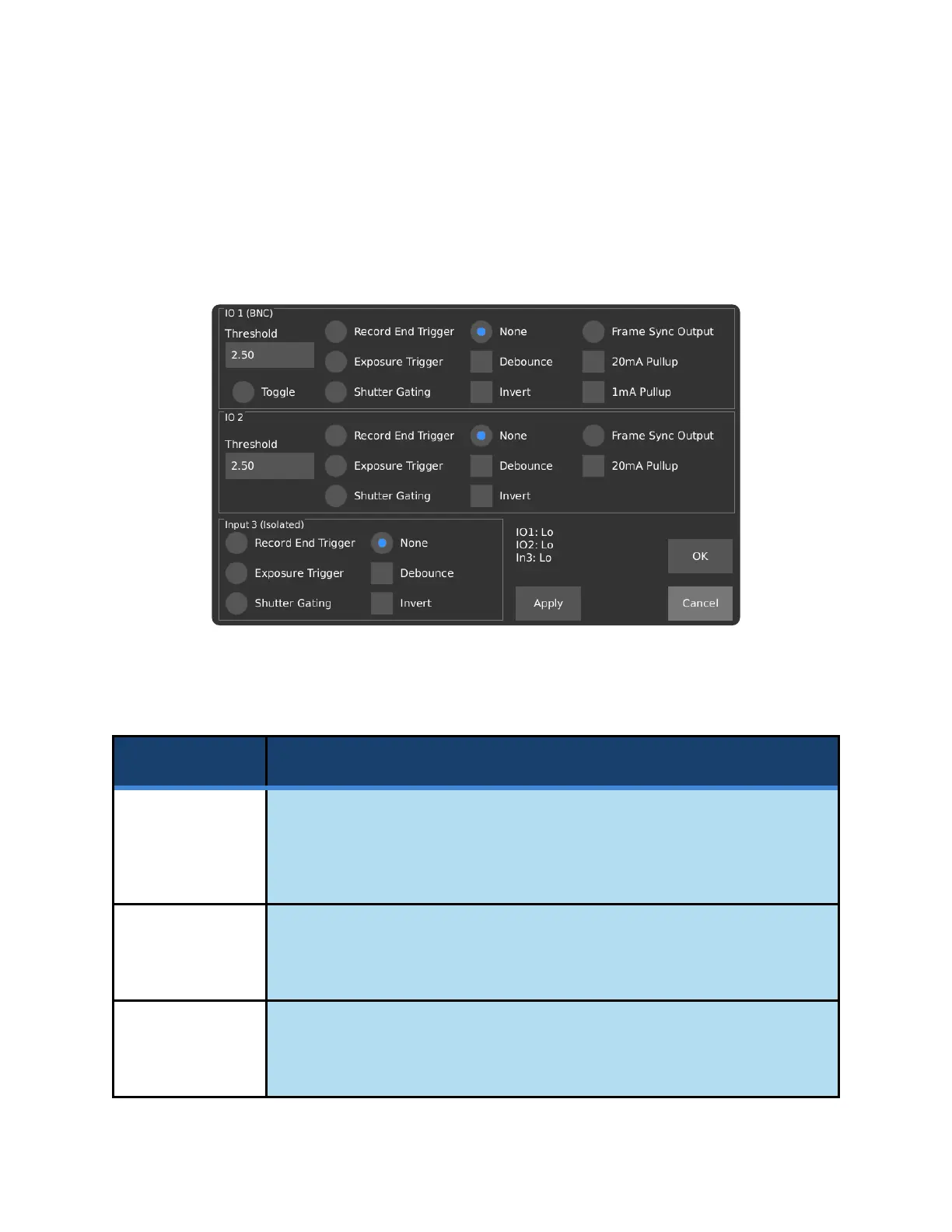

The Trigger I/O screen allows for the configuration of external inputs, and control over how external inputs
affect the recording process. This section describes the function of each selection on the Trigger I/O
screen. For a detailed dialogue of each triggering mode, please refer to the Triggering section in the main
manual.
Multiple triggers of the same effect are combined with a logical OR. Edge detection, which is used as a
record-end trigger, is applied after this operation.
Sets the input voltage threshold for the associated IO interface. When the
threshold is exceeded, the input will change between high and low.
Acceptable voltage thresholds are from 0 V to 6.6 V.
Sets function of the IO to trigger input, allowing the associated input to be used
to trigger the end of a recording, or to be used with the Segmented or Gated
Burst record modes.
Sets function of IO to control the start of exposure for each frame.
Normal recording is prevented if this mode is selected without a valid signal.
