SHUTTER GATING TIMING REQUIREMENTS
Shutter gating fundamentally places some limitations on the input signal, listed below
are the conditions that need to be maintained for perfect integrity of the capture:
1. A minimum exposure of 1us must be maintained; undefined operation may occur
with a pulse width below 1us.
2. To allow time for sensor read-out, Exposure end must occur at least one frame

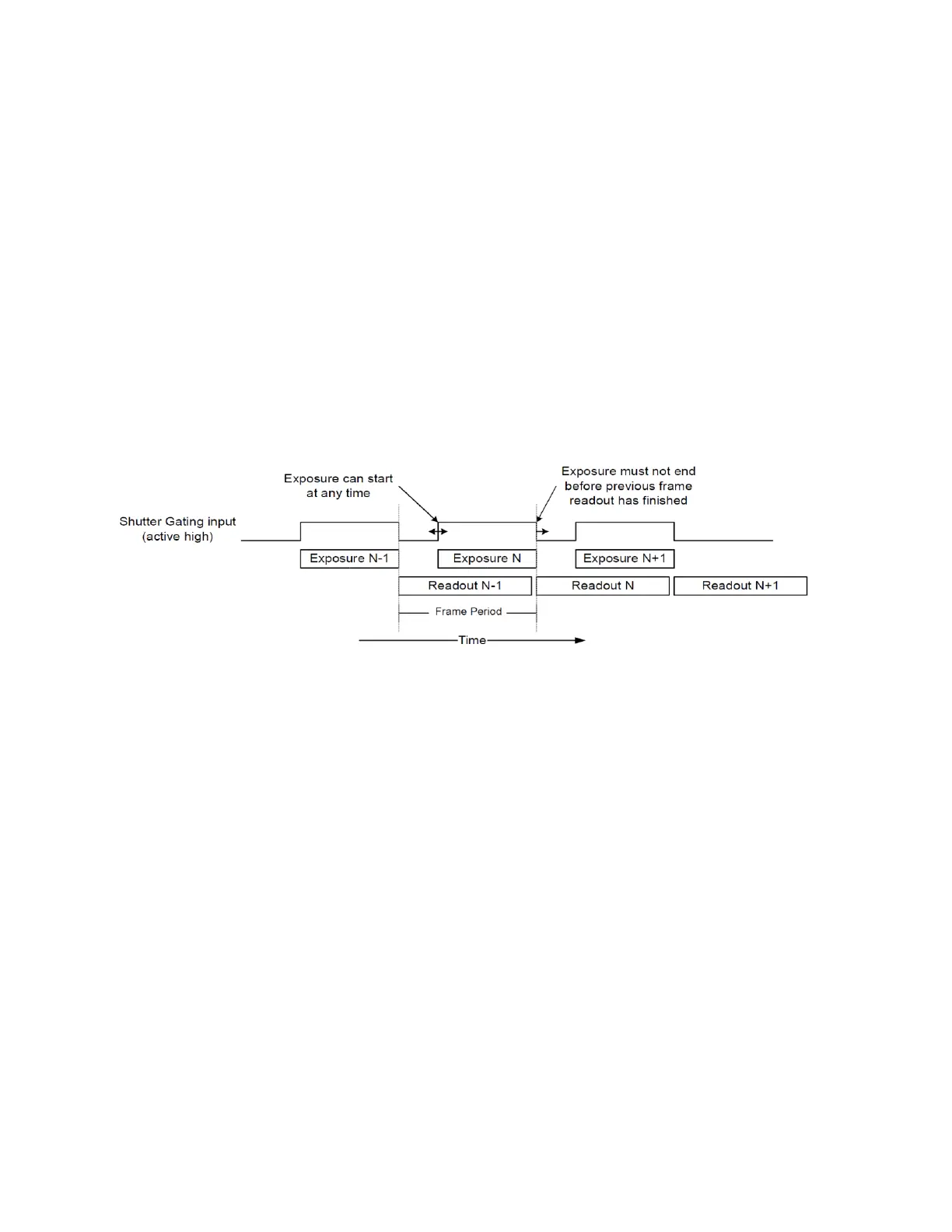

period (1 / frame rate) after the previous exposure. An example is shown below.
3. Sensor read-out time can be assumed to be the shortest frame period for the
configured resolution and can be determined for your current resolution in the
Record Settings window, under ROI display.
