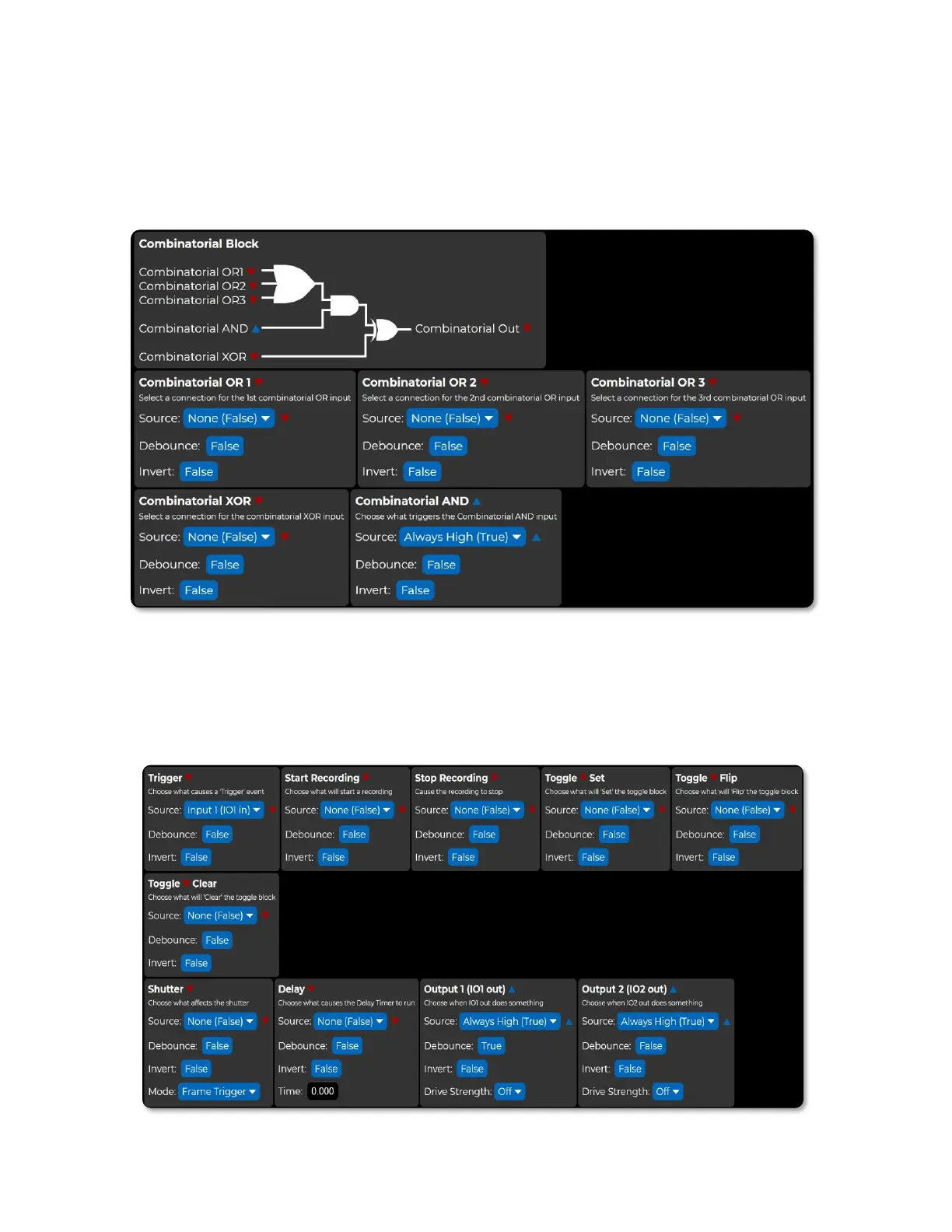

The Combinatorial Block section of the Advanced Configuration allows users to
connect the logic of multiple input sources together to produce an output that triggers a
recording. Changing parameters will change the arrows depicted in the logic gate
legend in real-time to reflect the most current configuration.
Under the Advanced Configuration individual preferences for behaviors titled in each
box below can be configured. Each box contains a descriptor, an option to select the
source responsible for the action, the ability to set a Debounce to mitigate against
mechanical contact bounce, and an Invert signal.
