Chapter 5 Connecting the Management Interfaces
Connecting the Management Interface
Connecting the Management Interface
The SCE8000-SCM-E is equipped with one active RJ-45 management port. This 10/100/1000 Ethernet
interface provides access from a remote management console to the Cisco SCE8000 GBE via a LAN.
The procedures for cabling the management port and testing connectivity between the Cisco SCE8000
GBE and the remote management host are explained in the following sections.
• How to Cable the Management Port, page 5-4
• How to Verify Management Interface Connectivity, page 5-5
How to Cable the Management Port
The SCE8000-SCM-E has one 10/100/1000 Ethernet port that is used as the management port, located
in slot# 1 of the Cisco SCE8000 GBE chassis, and labeled Port1.
Step 1 Plug the Ethernet cable provided (with attached RJ-45 connector) into Port 1on the front panel of the
SCE8000-SCM-E. (See item #3 in Figure 5-2 below.)

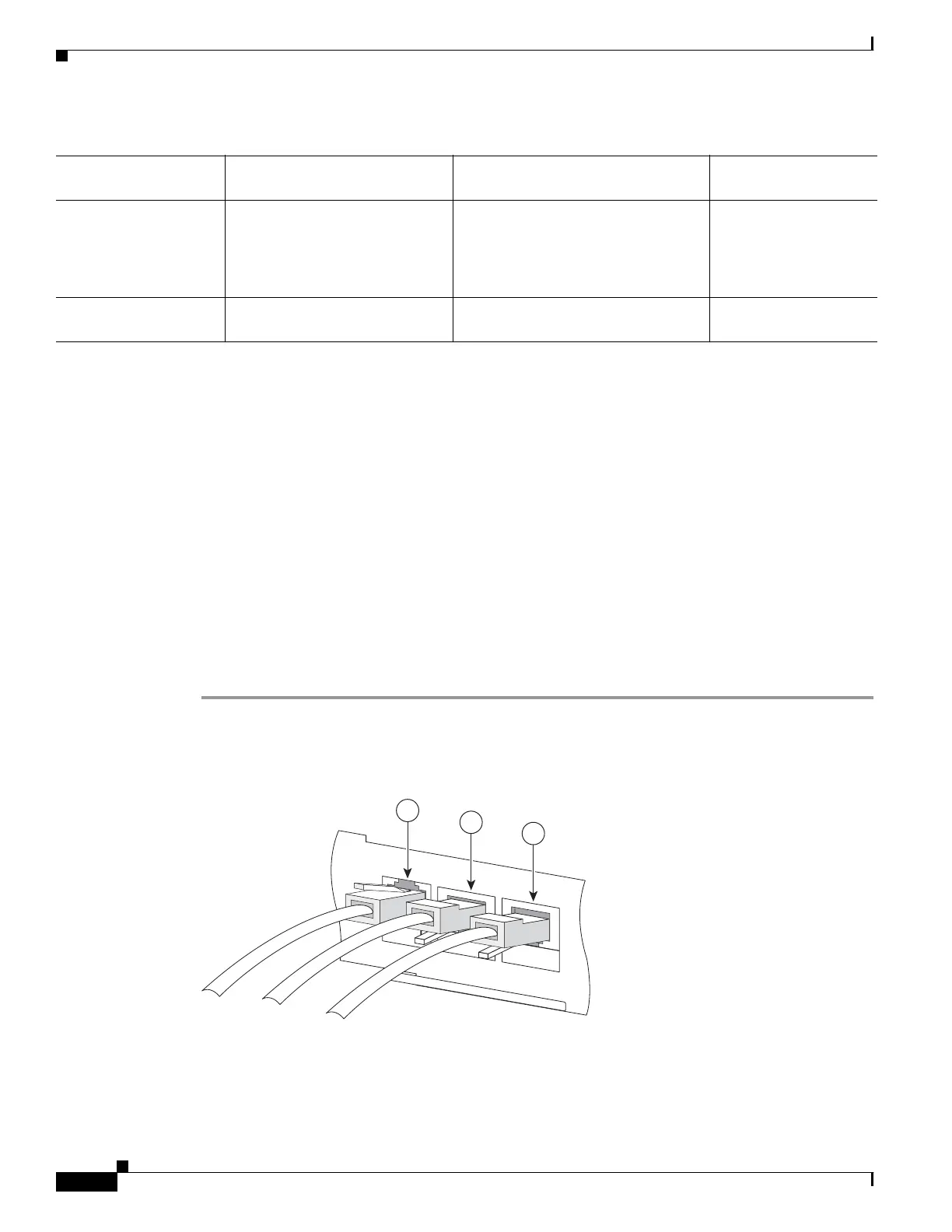

Figure 5-2 Cabling the Management Port
Domain name server show hosts ip domain-lookup
ip domain-name domain-name
ip name-server server-address1
[server-address2] [server-address3]
Global Configuration
RDR formatter
destination
show rdr-formatter destination rdr-formatter destination
ip-address port port-number
Global Configuration
Table 5-1 Initial Setup Configuration (continued)
Parameter show command configuration command
configuration command
mode
270976
S
CE
8000-SC
M-
E
10
/100
/
10
00
LIN
K
/
ACTI
V
E
OPTICAL
BYPA
SS1
CO
NS
O
LE
PO
R
T1
1
2
3
