Chapter 9 Removal and Replacement Procedures
Removing and Replacing the Power Supply
Caution Use both hands to install and remove power supplies. Each PWR-2700-DC DC/4-input power supply
weighs 19.8 pounds (9.0 kg).
Step 7 Grasp both power supply handles, as shown in Figure 9-4, and slide the power supply completely out of
the chassis.

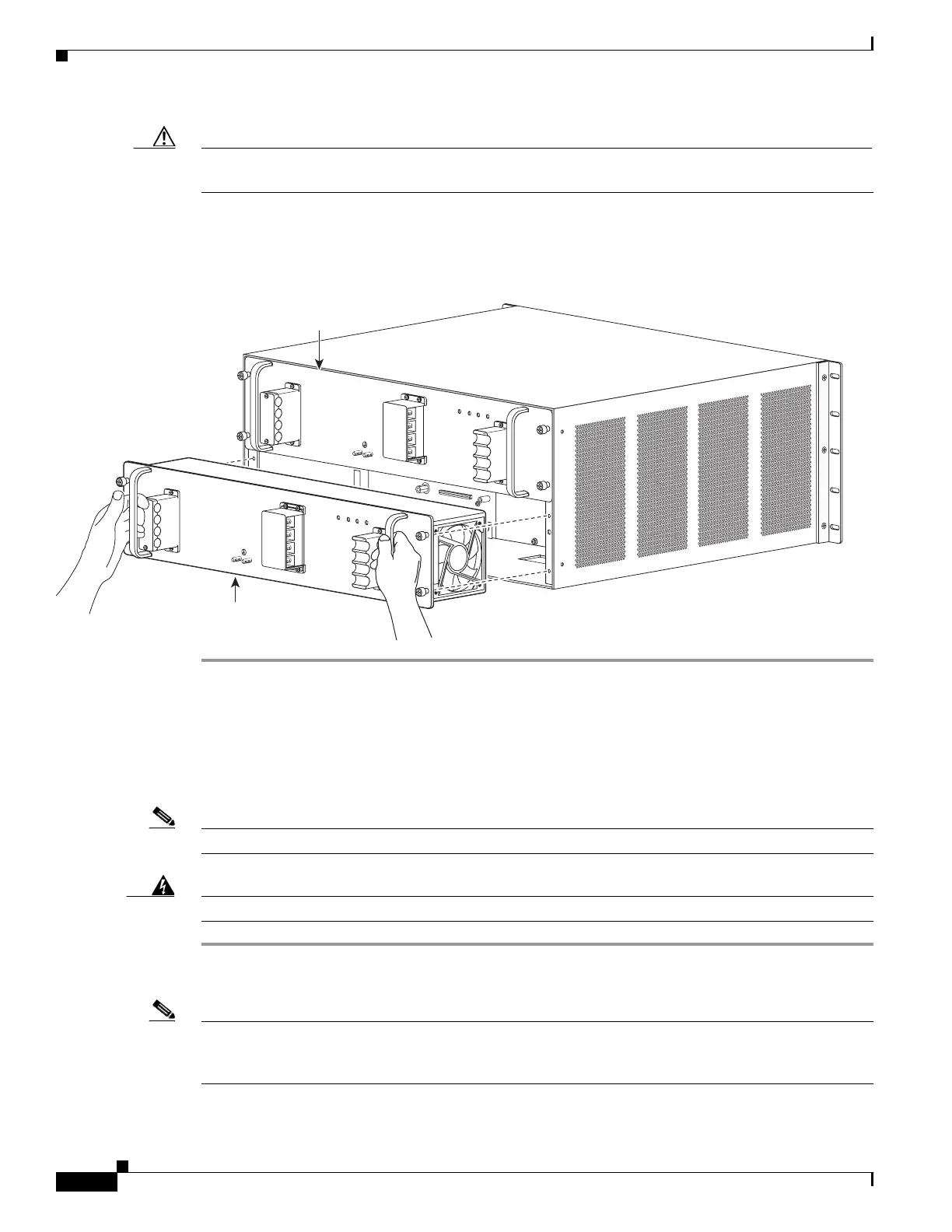

Figure 9-4 Handling a DC-Input Power Supply
Installing a DC-Input Power Supply
This section covers the DC-input power supply installation procedure for the Cisco SCE8000 GBE
chassis.
Note The DC return is to remain isolated from the system frame and chassis (DC-I).
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Step 1 Power supply ground is required. Install the PWR-2700-DC/4 power supply ground as described in this
procedure.
Note The system ground connection with the PWR-2700-DC/4 power supply in a Cisco SCE8000 GBE is
provided by the PWR-2700-DC/4 power supply ground. Additionally, you can connect a system (earth)
ground.
