Note: The connection between the MVX or PiCo and the LQ device is a 4-wire connection,
even though it is declared as a 2-wire connection.
For more information on port function, see 5.16 Port Function in the EHX Software
User Guide .

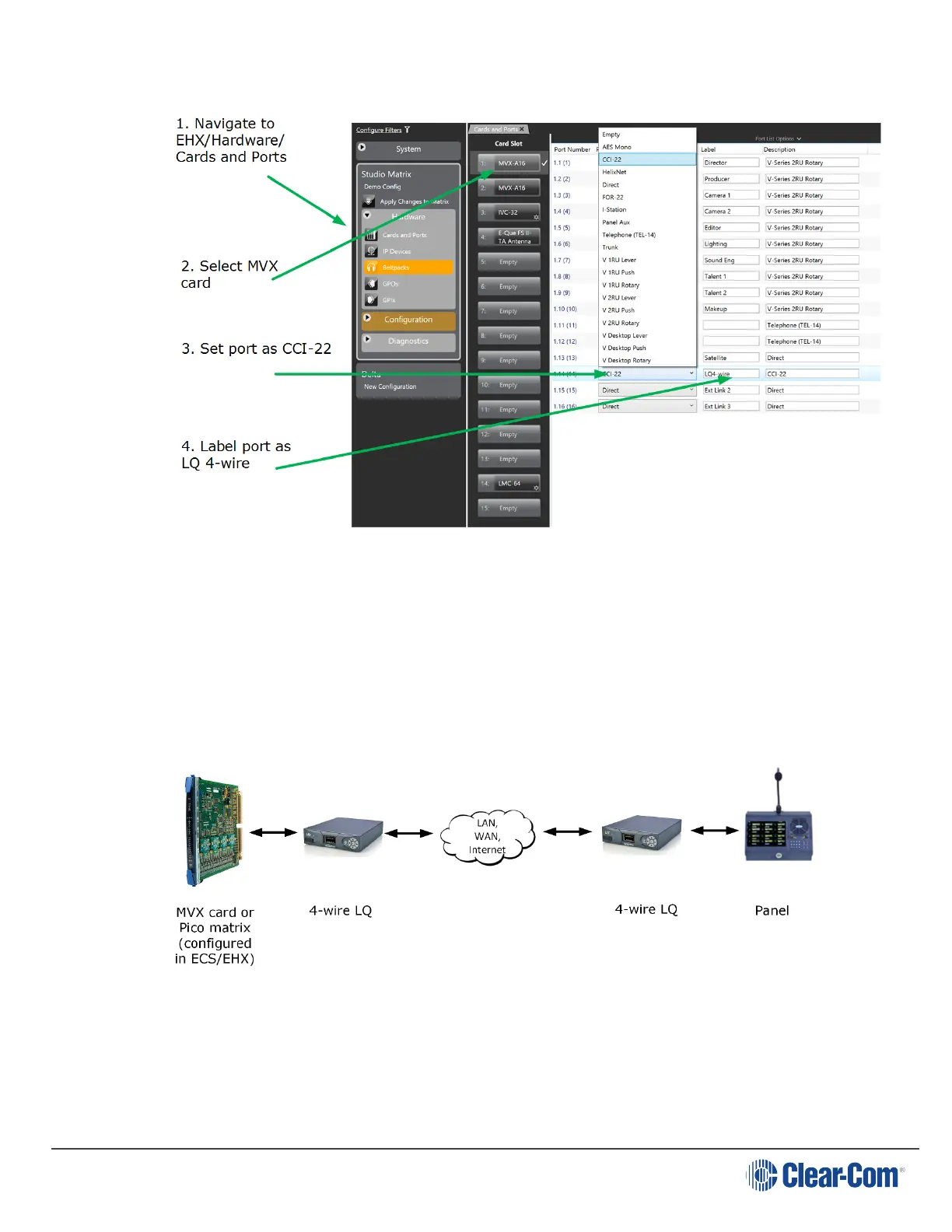

17.4 Connecting an Eclipse PiCo (or MVX card) to a panel
using LQ
When setting up this connection, the MVX port to the LQ should be declared as a
panel in the EHX software.
For more information on port function, see the Eclipse EHX Software User Guide.
