User Guide| LQ Series 4.0
2 Powering your LQ
2.1
Using the power supply unit (PSU)

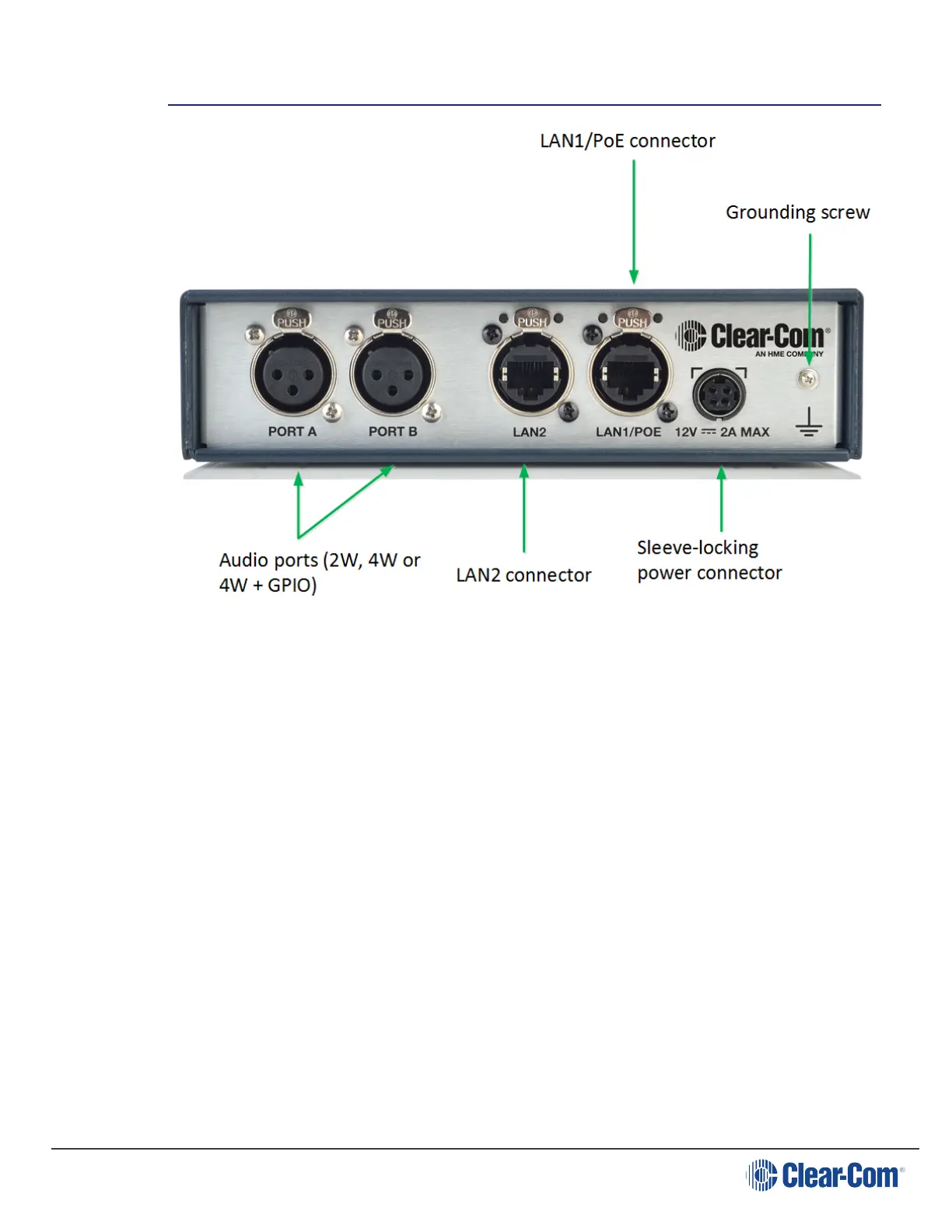

l LQ units are supplied with a 24 watt sleeve-locking power connector.
l LQ-R 1RU units are supplied with two 60 watt sleeve-locking power
connectors. Use either power connector, or both to guard against one power
supply failing.
Note: When connecting the sleeve-locking power cable, be sure to push until the
connector locks into the device.
Note: The 60 watt PSU can be used with the throw-down units if necessary.
Page 19
