3.2.1 Device Configuration
Devices in a Link-Group can be configured either directly or by proxy, meaning that
the configuration operations for a unit are routed through the host device. The host
device is the unit which the browser is currently pointed to (orange highlight).
Click on the gear icon on any device.
You can use the Overview page to obtain diagnostic information for your all
systems. Whenever you see a > symbol, click to see a drop-down section.
Clicking the gear icon in any part of the CCM always takes you to programing
options.
3.2.2 Resource Bar
3.2.3
About the Resource Bar

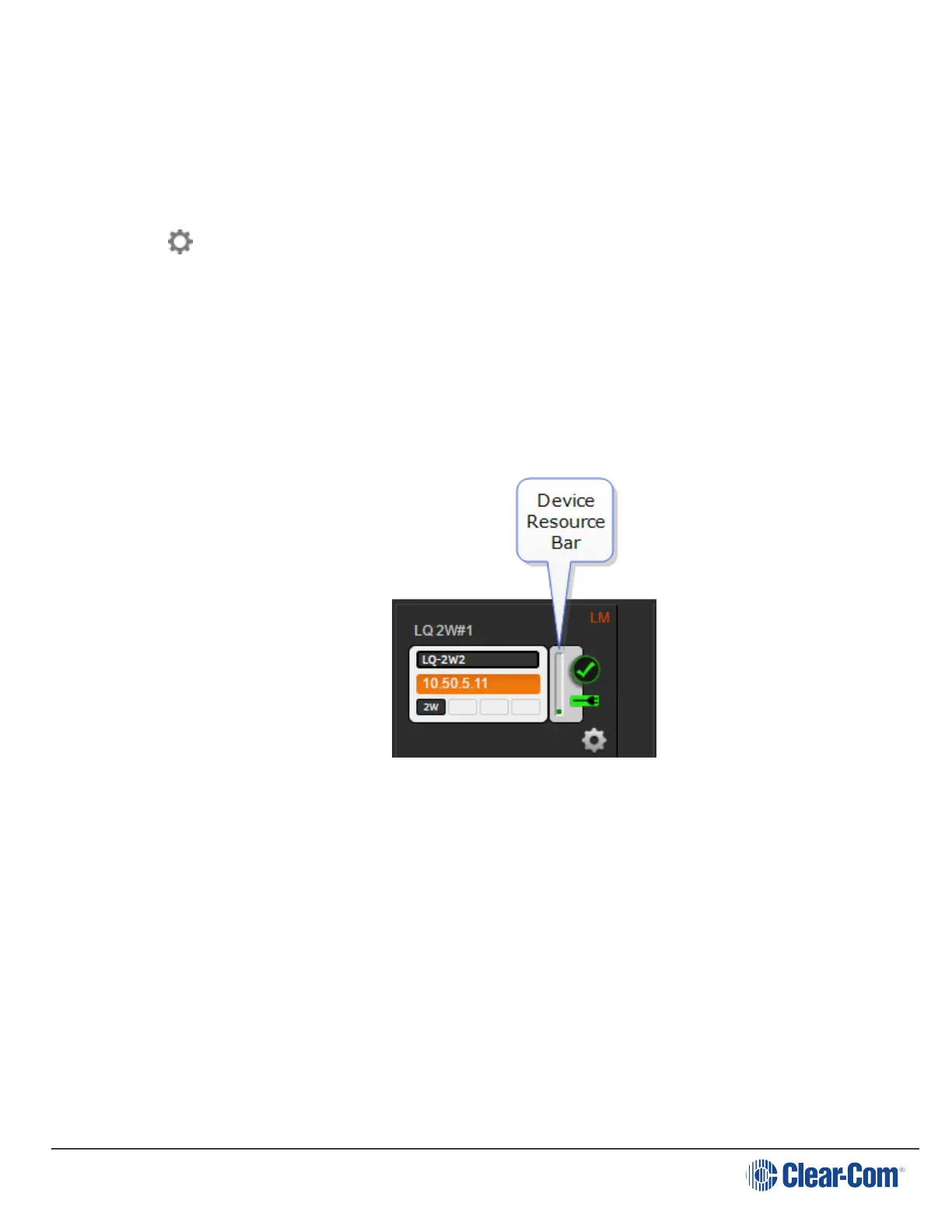

The Resource Bar is a tool that indicates the amount of processor power currently
allocated on that device.
l Bar orange = 70% of processing power reached
l Bar red = 80% of processing power reached
The device will work in the red zone, but the reliability of the audio response may
decrease.
