Clear-Com LQ-2W2 User Manual

User Guide| LQ Series 4.0

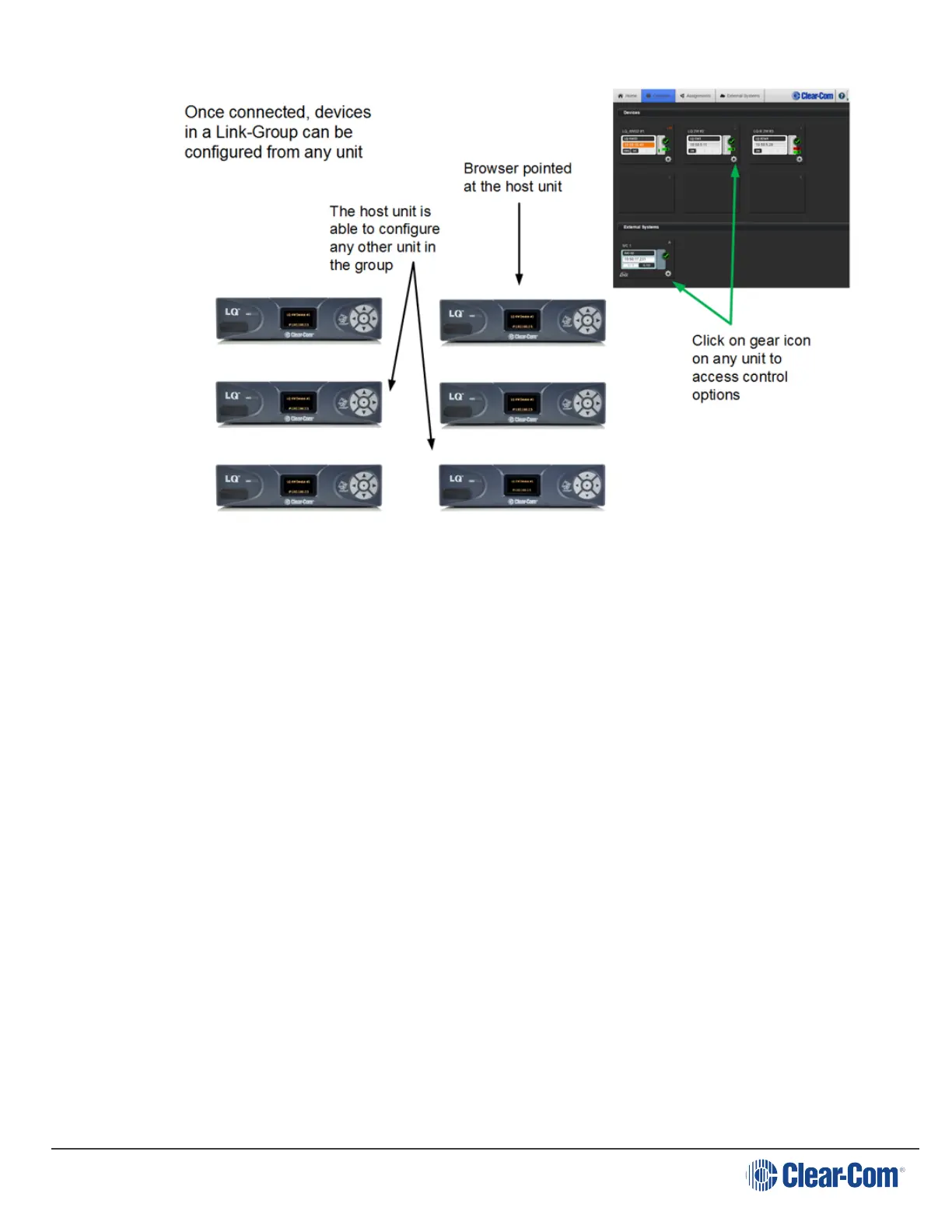

The Core Configuration Manager (CCM) for any LQ host can be accessed by entering
the IP address as displayed on the front panel display of the LQ host into a web
browser's address field. All devices in the Link-Group can be viewed and configured
through any single host in the Link-Group.
Note: A HelixNet Main Station can also be linked in a Link-Group formation. The basic
principles are the same for a HelixNet/LQ Link-Group, though there are a few
differences in operation.
For more information, see:
LQ to HelixNet connectivity on page 123
6.2 About Linking
A Link-Group:
l Can contain up to 6 LQ devices or up to 6 of a combination of HelixNet Main
Stations and LQ devices
l Must have one unit designated as Link-Master
l Performs a “best effort” approach to creating a mesh network between all the
devices within the group.
Page 58

Clear-Com LQ-2W2 Specifications

General

Brand	Clear-Com
Model	LQ-2W2
Category	Intercom System
Language	English
