User Guide| LQ Series 4.0
l No SIP hangup capability through the HMS Front panel
l No Internet connection between LQ units.
Note: If you upgrade your HelixNet system when you have a Link-Group set up, the
linking status will be reset and you will need to re-establish the Link-Group.
14.2

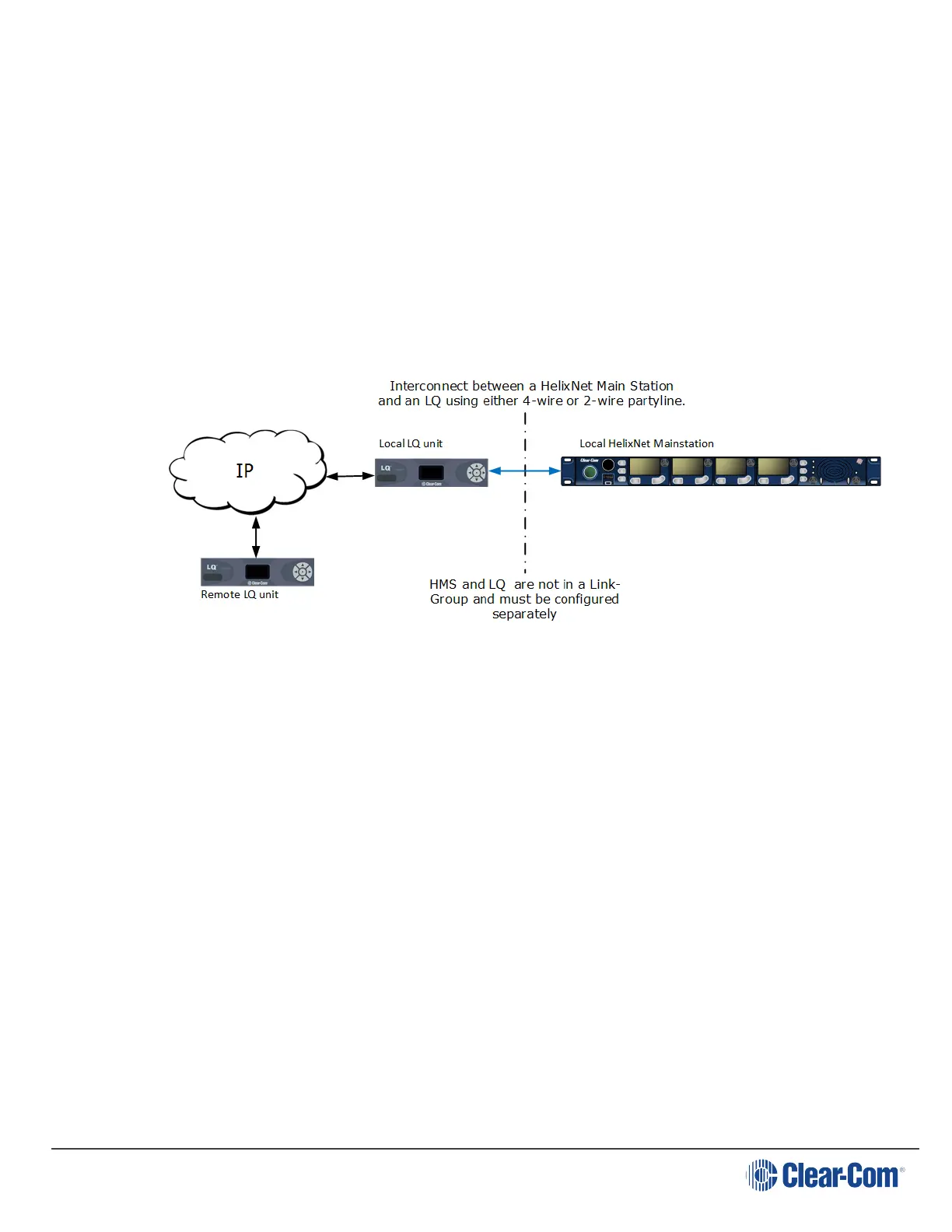

Connecting HelixNet and LQ with analog connection
Interconnecting HelixNet and LQ equipment using either 4-wire or 2-wire interfaces
is possible and only serves as a means of transporting one channel of audio along
with call signalization per connection.
For more information, see:
Programming a HelixNet/LQ Link-Group on page 125
14.3 Programming a HelixNet/LQ Link-Group
l The HelixNet Main Station that has been designated as the Link-Master must
be reachable on an IP network by all other Link-Memebers.
Note: The HLI-ET2 module must be fitted to the HelixNet Main Station for
IP connectivity.
l To access the Core configuration manager (CCM), input the IP address of each
device into the address field of a browser. Enter the default login credentials:
admin, admin.
l Once LQ and HelixNet devices have been joined to a Link-Group, they can be
monitored and configured from any device within that group.
Page 125
