User Guide| LQ Series 4.0
13.8.3
Using SIP lines with a panel (Eclipse and LQ-SIP)
SIP enabled ports are programed in the EHX software. Of importance are Line
Release and Off-Hook Tally options. Setting these options will control how
telephone calls behave in your Eclipse system. The Off-Hook Tally is set to ON by
default when you declare and LQ SIP interface in the EHX software.
If the Off-Hook Tally is set to On, an incoming call configured to a panel will flash on
the interface key. Use the panel keyset to monitor and talk back to the calling
party. An incoming call can be ended by the caller (or from the CCM and device front
screen menu). If the Line Release option is set in EHX then the call can also be
released by the panel.

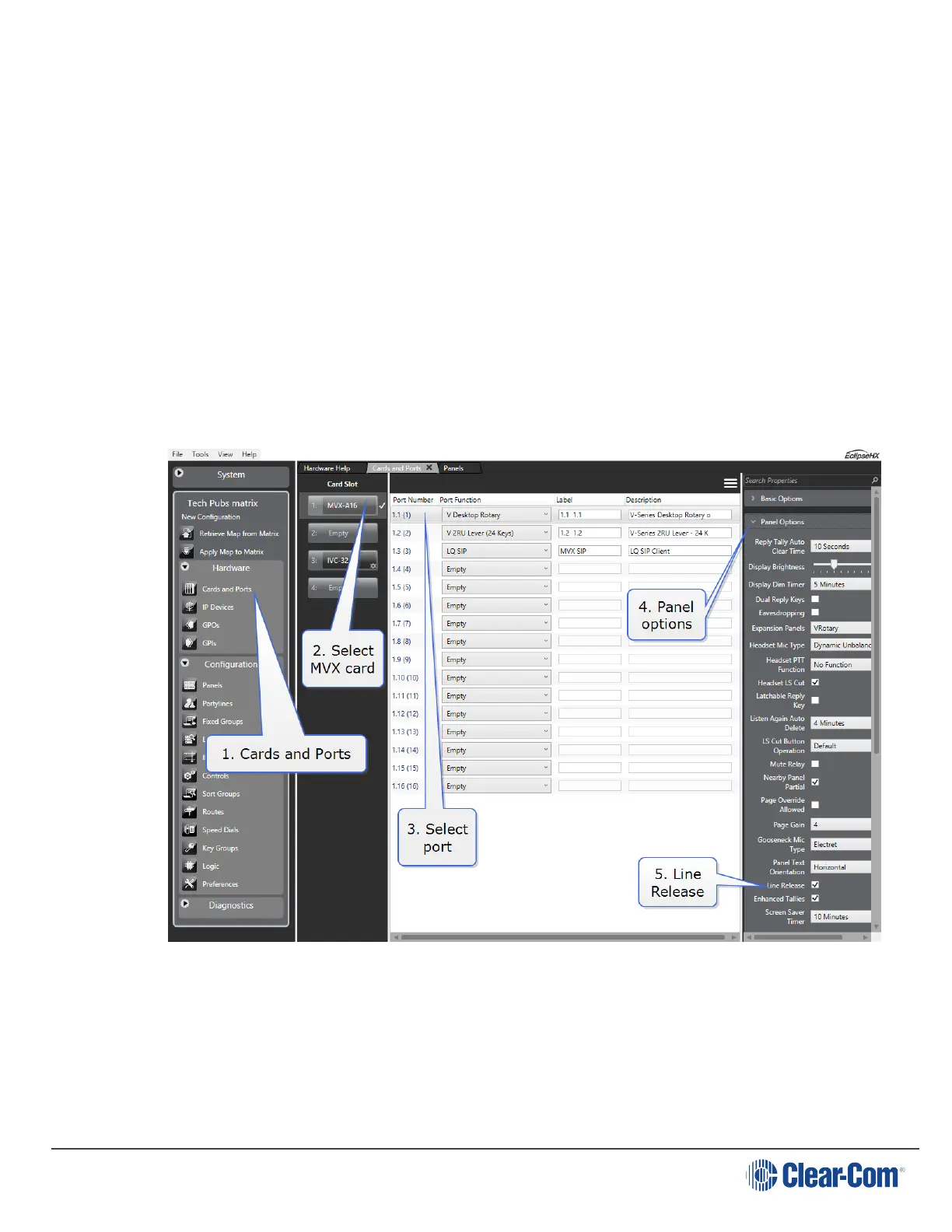

Line Release option (MVX card)
Page 118
