User Guide| LQ Series 4.0
4 Basic set up (LAN)

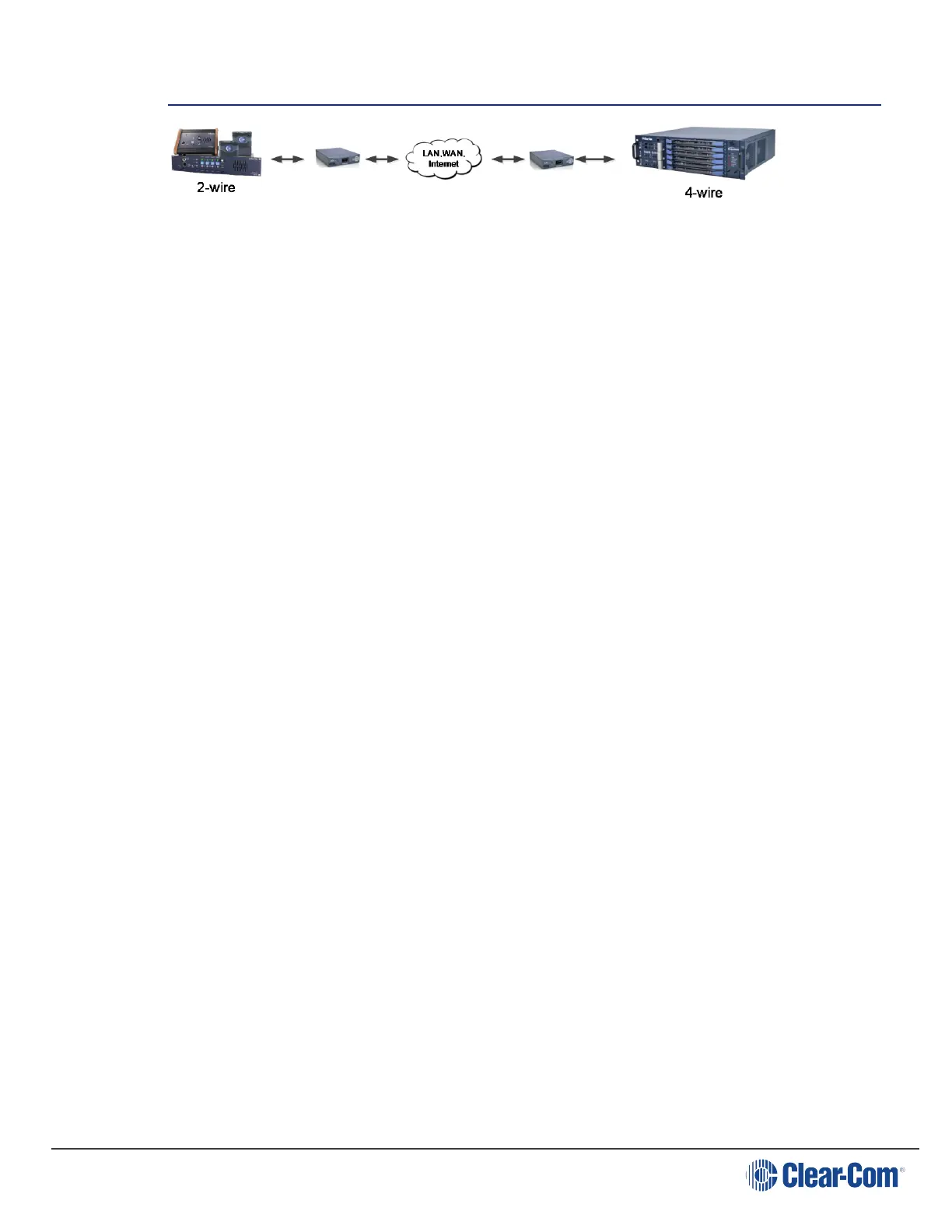

4.1 Setting up your LQ environment within a LAN
Gather the following equipment:
l 2 x LQ units (LQ #1 and LQ #2)
l 2 x provided Power Supply Units (PSUs)
l 2 x Straight-through RJ45 Ethernet cables
l 1 x Network connection with Dynamic Host Control Protocol (DHCP) server
present (preferred method)
l 2 x 2-wire, 4-wire and/or GPIO equipment to provide an audio connection to
each LQ
l 2 x 2 Network connections available for connecting each LQ to your network.
1. Connect either LAN port of LQ #1 to the local network equipment.
2. Connect either LAN port of LQ #2 to the local network equipment.
3. Connect the provided PSU to each LQ device. Once booted, each device will
display an IP address on the front panel display.
Page 45
