User Guide| LQ Series 4.0

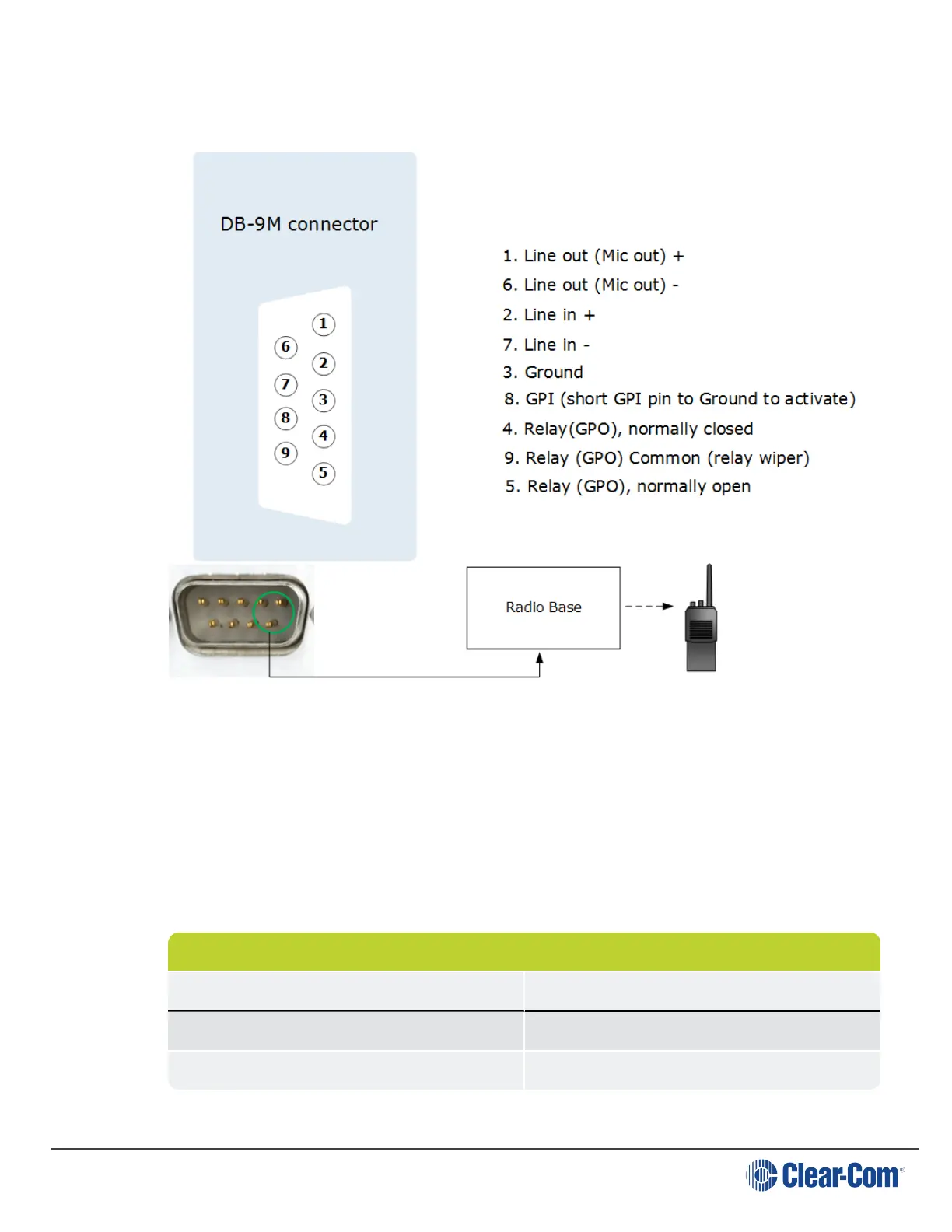

4-wire GPIO pinouts
Caution: Shielded Cable Requirement
Shielded Cable is required for ALL LQ SERIES GPIO Port connectivity. Shielded
Cable must be used to assure compliance with domestic and international
emissions standards. Customers, Installers and or qualified Personnel failing to use
shielded cables may cause radio interference in which case the user may be
required to take adequate measures.
20.5 Partyline output current (2-wire)
Line voltage (selectable)
LQ: PoE 26V 70mA max
LQ: DC power connector (12V PSU) 26V 150mA max
LQ-R: DC power connector (12V PSU) 26V 250mA max
Page 175
