User Guide| LQ Series 4.0
11 Clear-Com Eclipse matrix connections

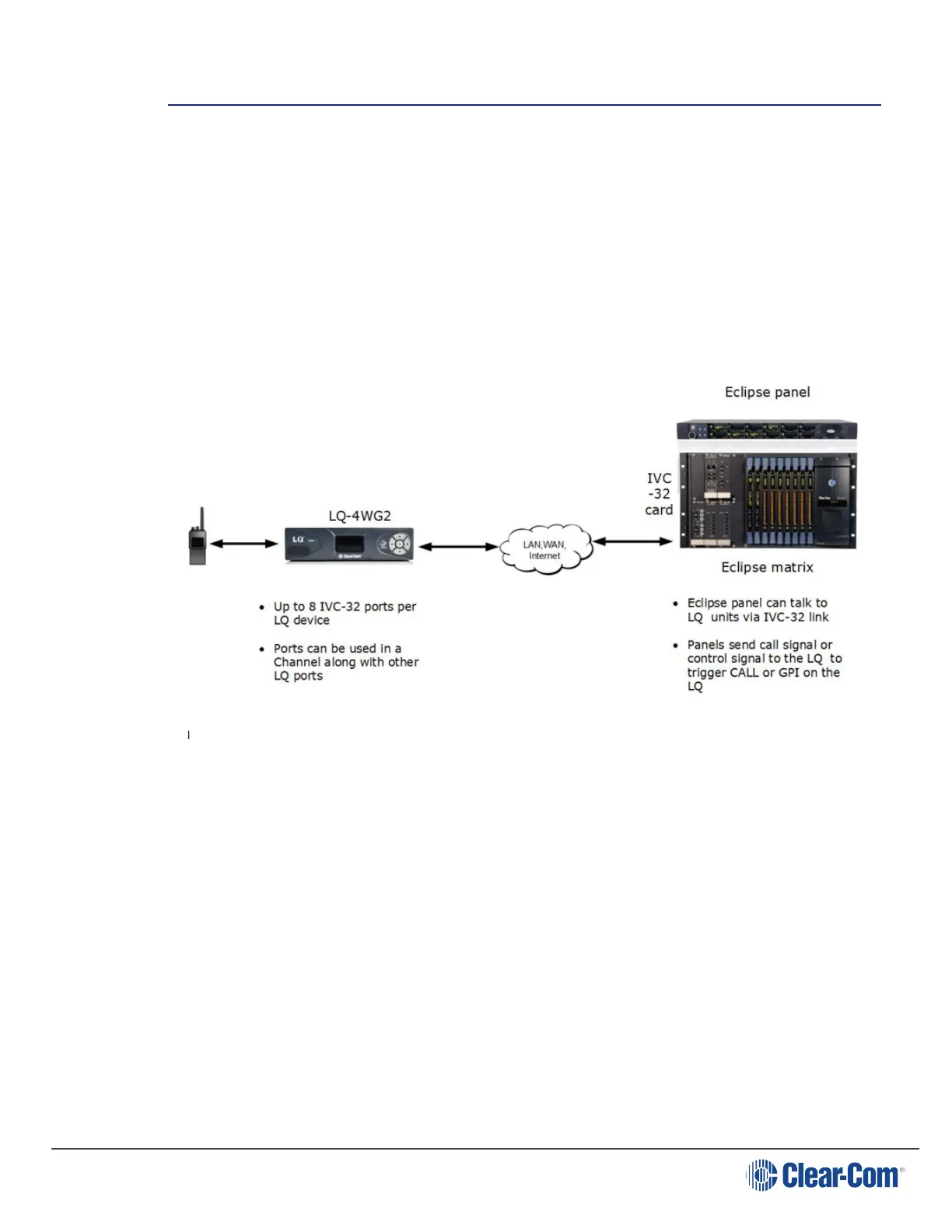

Each LQ unit (LQ 3.0 and above) can support up to 8 IVC-32 ports, as well as its
own hardware ports.
l Up to 8 IVC-32 ports per LQ device
l Up to 32 IVC-32 ports per Link-Group
l IVC-32 ports are generated in the External Systems page in the CCM
l All ports, LQ hardware ports and IVC-32 ports can then be used in the LQ
Channels to transmit audio, Call and GPIO signals.
Each LQ-R unit supports up to 24 ports: 8 hardware ports, 8 SIP ports and 8 virtual
ports. Agent- IC and IVC ports are considered 'virtual ' ports. Virtual ports can be
used in any combination up to 8 in total.
11.1 How to create virtual ports and connect to a matrix
11.1.1
General outline
Both matrix and LQ must be connected to a network and able to reach each other
across the network settings.
Page 79
