To set up this connection:
l Define port slots on the IVC-32 in the EHXconfiguration software
l Define IVC-32 virtual ports in the External Systems page of the Core
Config.uration Manager (CCM) and connect to the IVC-32
l Put required ports together in a Channel
l Program audio and GPIO relays if required.
11.1.2
Program the EHX software
In EHX, program the ports you want to connect to.

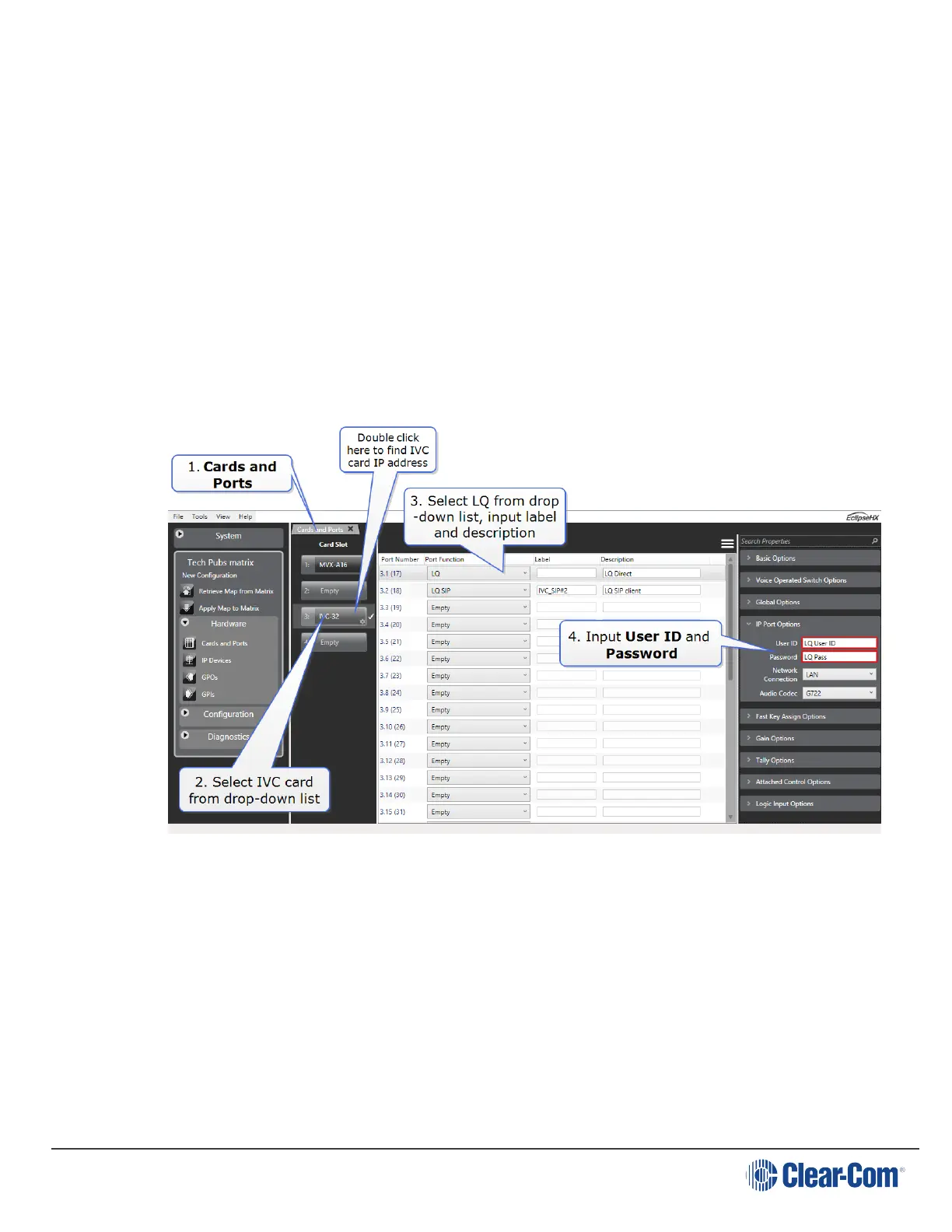

Program ports in EHX. Navigate to EHX>Cards and Ports.
When you have set up the new ports, you must Apply changes to Matrix.
