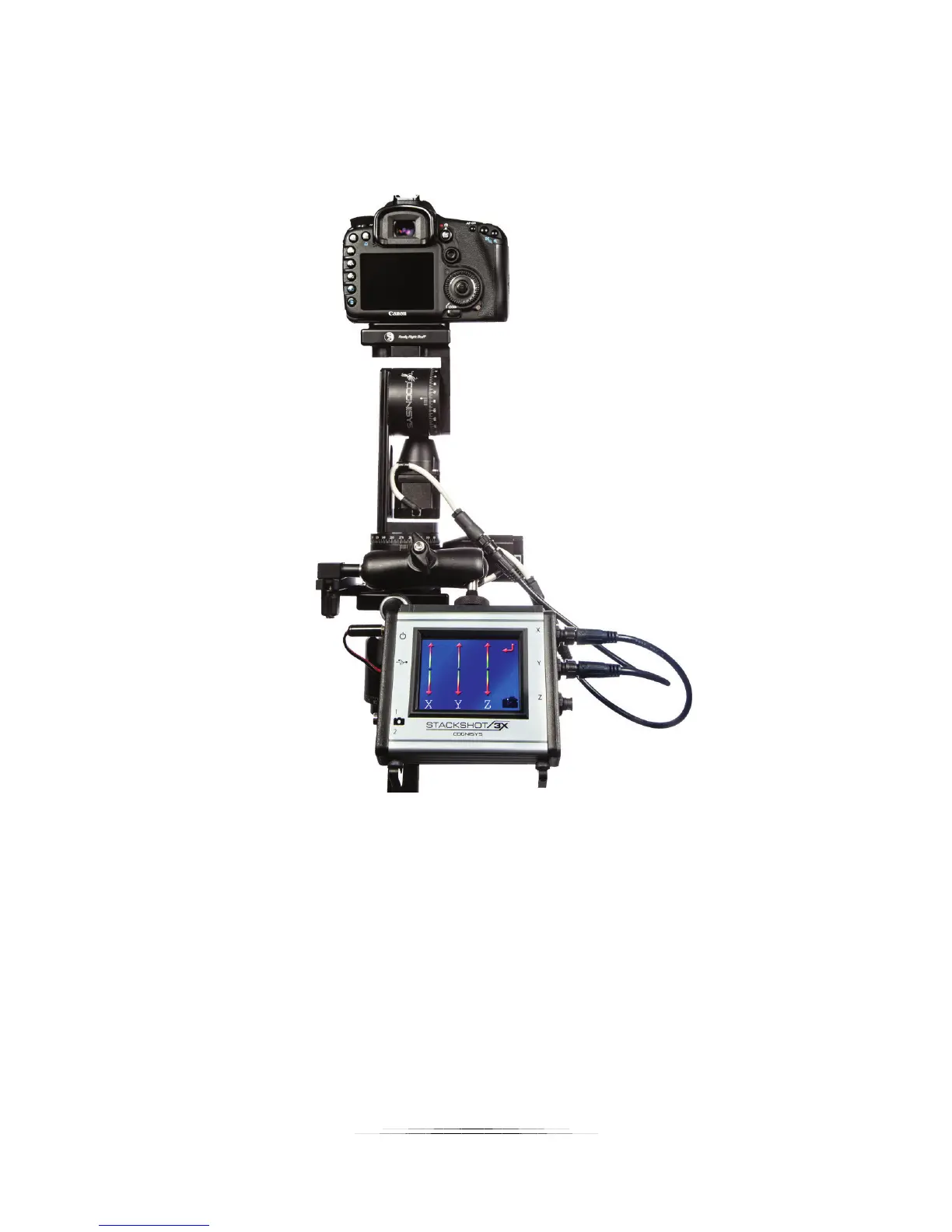

2.3.3 Pan/Tilt Rotary System
The Pan/Tilt rotary system includes two rotary tables. They can be used individually or
combined with the included brackets for full pan/tilt effects. This combination allows for giga-
pixel panoramas or full-blown motion control.
2.4 Connecting Rails/Rotary Systems/Sliders
The motor connectors are a twist/lock style connector. Simply align the arrow on the cable to
the top of the controller and insert the cable. If it does not fully seat, rotate the locking portion
of the cable counter-clockwise until it is fully seated. Once seated, turn the locking shroud
clockwise to lock it in place.
