2.2 The StackShot 3X Controller

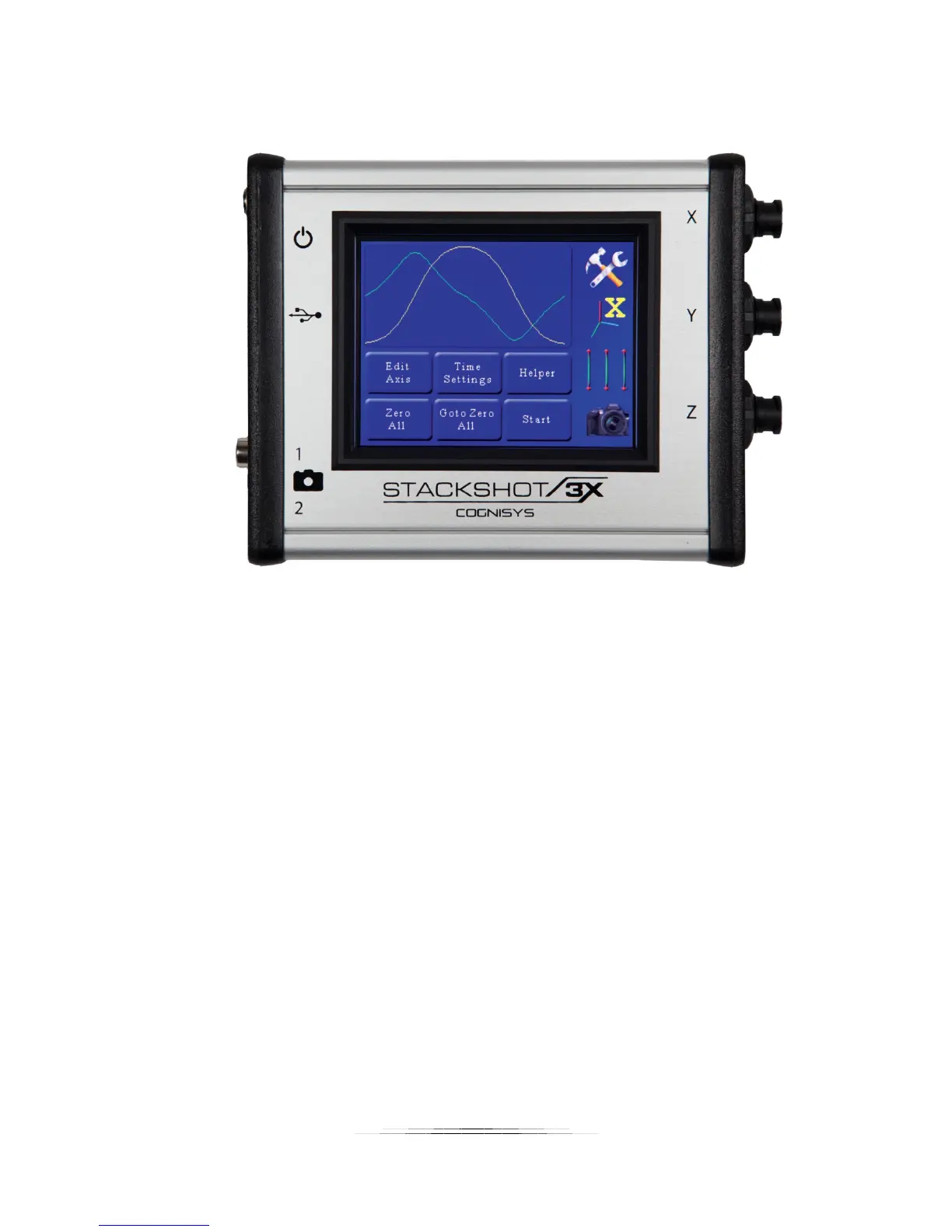

Figure 1 – StackShot 3X Controller
The left side of StackShot 3X has the following connectors/buttons from top to bottom:
1. DC power (2.1mm jack)
2. Power switch
3. LED power indicator
4. USB connector
5. Shutter output 1 – RCA connector (can also function as an input)
6. Shutter output 2 – 3.5mm connector
On the right side:
1. Motor X – Twist/lock connector
2. Motor Y – Twist/lock connector
3. Motor Z – Twist/lock connector
1
2
3
4
5
6
1
2
3
