7.3.3 Removal and installation of the water cup and the water hoses
Toimproveaccessibilityforremovingthewatercupandthewaterhoseswerecommendtoremove
thesteamcylinderrst(seechapter7.3.1).
1. Releasehoseclampsusingpliers,thendisconnectallhosesfromthecorrespondingconnectors
and remove the hoses.

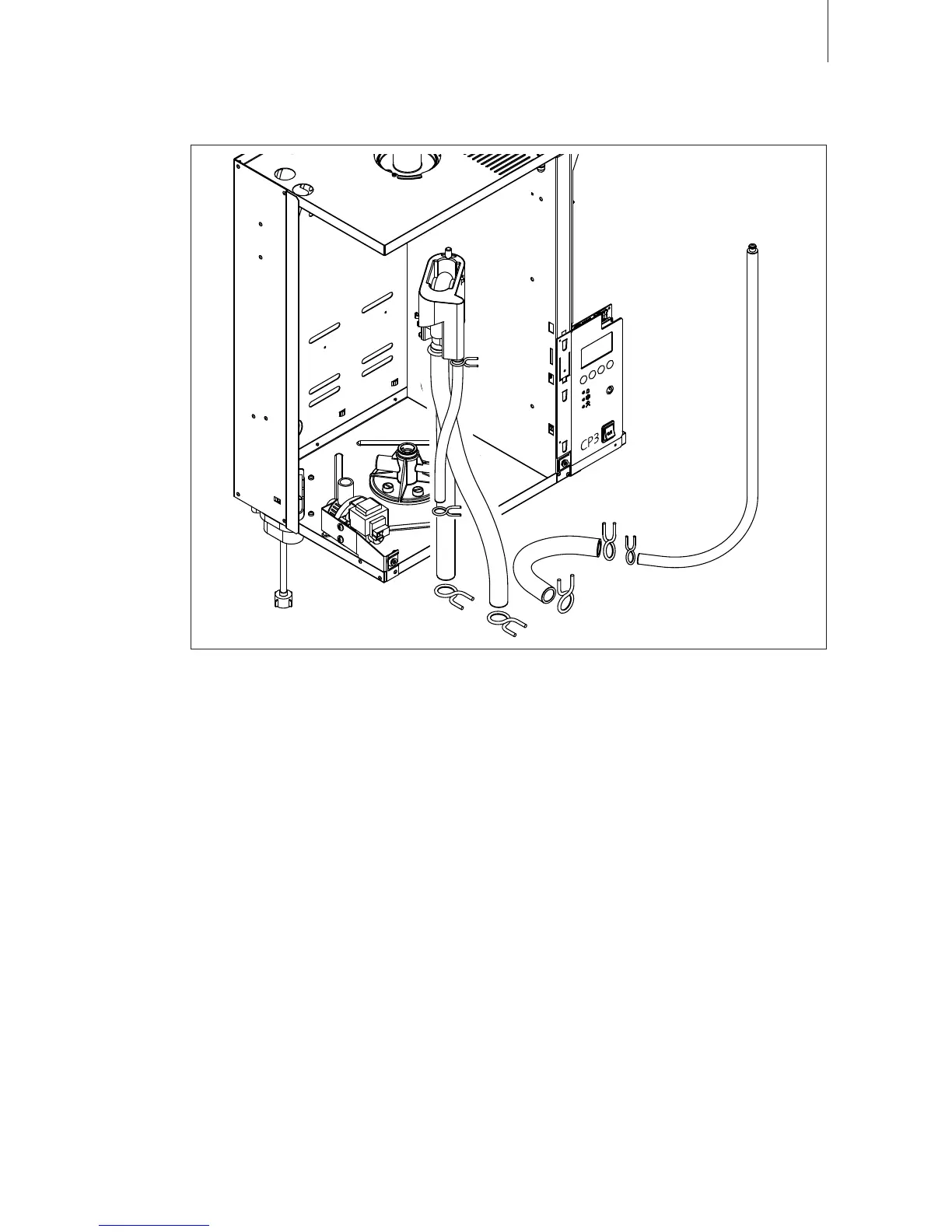

Note:Thehosesconnectedtothewatercupmayalsoberemovedtogetherwiththewatercup
(seeillustration)andthendisconnectedfromtheconnectorsofthewatercupoutsidetheunit.
2. Carefullypullxingclipofthewatercuptothefront,thenpushwatercupdownfromtheholding
deviceandremoveittothefront.
The installationofthewatercupandthewaterhosesfollowsthereversesequence.Beforexing
the water hoses to the connector using the hose clamps, align the hoses in a way that they are not
twisted.
