7.3.2 Disassembly and assembly of the cleanable steam cylinder type D...

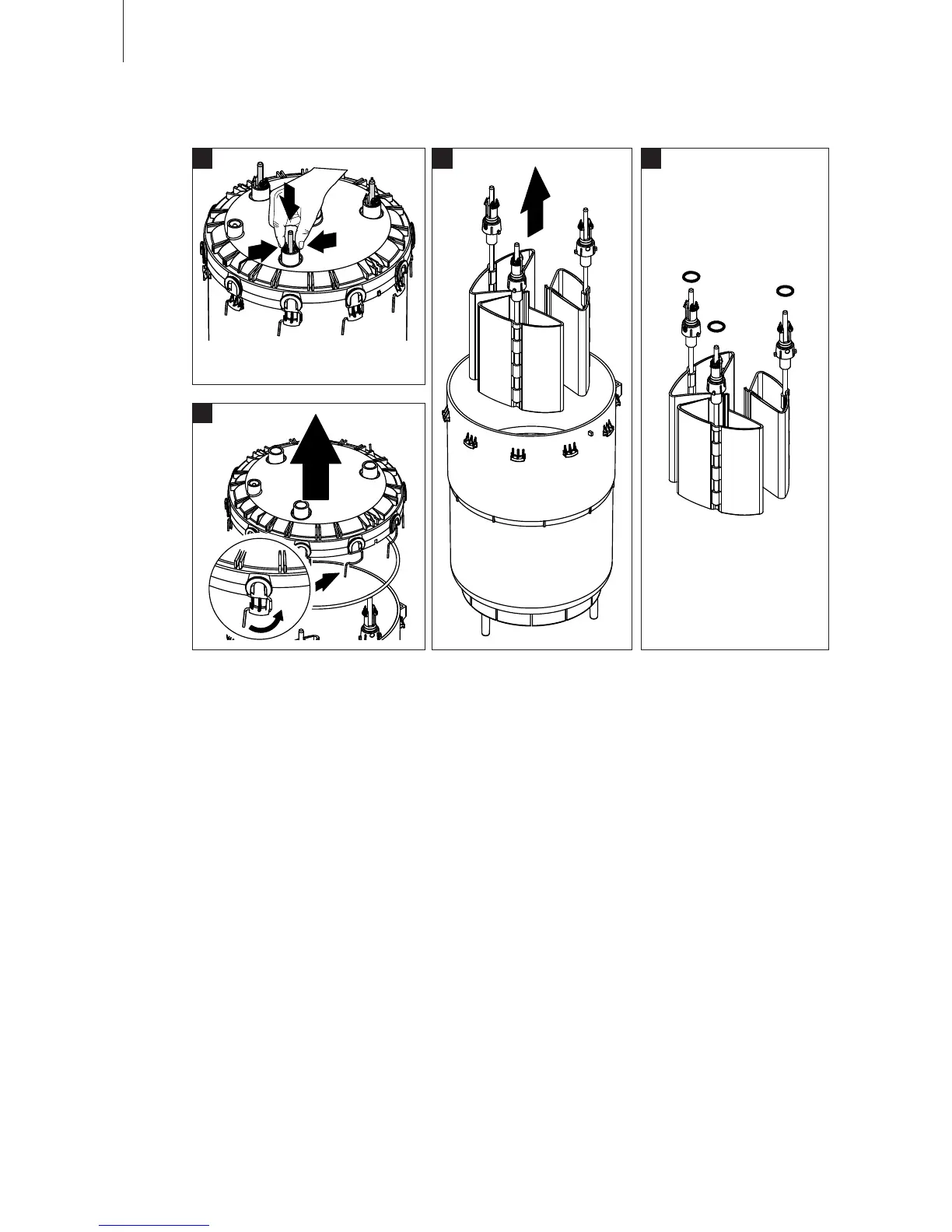

1. Fastenelectrodesnapfasteningsandpushelectrodesapprox.2cmdownwardsintothesteam
cylinder.
2. Releaseclampclipsofthecylindercoverandraisecover.
3. Removecarefullyelectrodesbyliftingupwards.
4. RemoveO-ringsfromtheelectrodes.
Note:IntactO-ringscanbereused.
The assemblyofthecleanablesteamcylinderfollowsthereversesequence.Observe the follow ing:
– Beforeassemblingthesteamcylinder,checktheO-ringinthesteamcylindercoverandtheO-rings
ontheelectrodesfordamage,andreplaceifnecessary.MakesuretorelocateO-ringscorrectly.
– Insertelectrodesintosteamcylindercoverandpushthemupwardsuntilthesnapfastenersengage.
– Placethecylindercover(withmountedO-ring)inthecorrectposition(alignthetwocamsonthe
steamcylinderbodywiththecorrespondinggroovesinthecylindercover)onthecylinderbody
andsecurecoverwiththefasteningclips.
1 3
2
4
