6.7.4 Cylinder settings

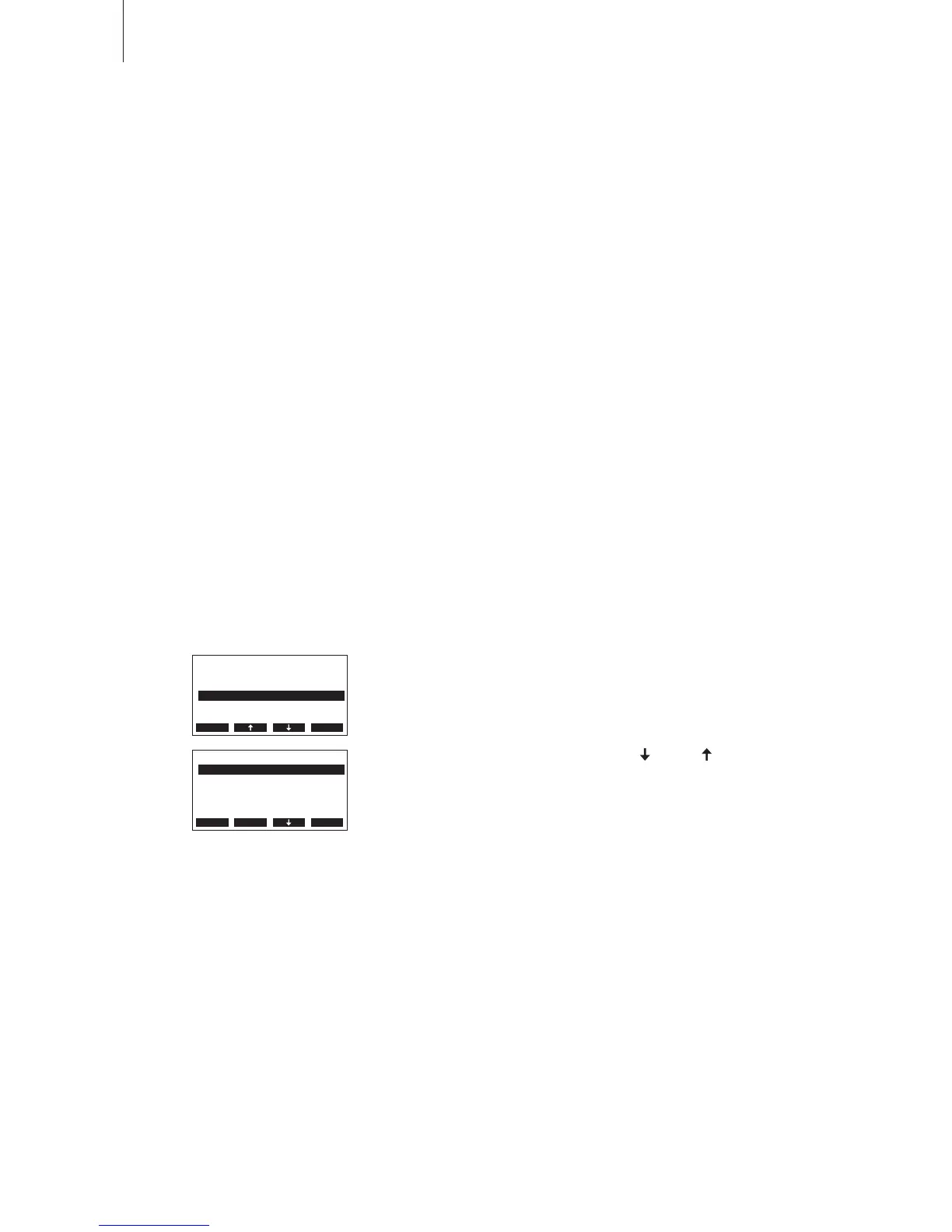

Settings
Controls :Set
Cylinder :Set
Power Limit :Set
Language :English
On/O Timer :Set
Esc Set
Cylinder
Cyl. Number :644
Cyl. Line :Dispos
Esc Set
Select “Cylinder”inthesettingsmenu,thenpressthe<Set>key.
Thecylindersettingsappear.Pressthe< > and < >keysinorderto
select the individual settings and press the <Set> key to call up the
modicationdialoguefortheselectedsetting.
Description of the cylinder settings
– Cyl. Line: Selectingthecylindertype.
Factorysetting: Dispos
Options: Dispos(DisposablecylinderA..)
Clean (CleanablecylinderD..)
– Cyl. Number: Selectingthecylindernumber
Factorysetting: according the installed cylinder
Options: 342, 343, 363, 444, 464, 654, 644, 664, 674
– Lim. Control: Activating/Deactivatingthesupply air limitation (signal Z).
Note:ThissettingisavailableonlyiftheexternalorinternalPorPIcontrol-
ler is activated.
Factorysetting: Off
Options: On, Off
– Limitsignal: Selectingthesupplyairlimitation signal.
Note:ThissettingisavailableonlyiftheexternalorinternalPorPIcontrol-
ler and the supply air limitation are activated.
Factorysetting: 0–10V
Options: 0–5V, 1–5V, 0–10V, 2–10V, 0–16V, 3.2–16V,
0–20mA, 4–20mA
– Limit Min: Settingthelowerlimitvaluein%rhforthesupplyairlimitation.
Note:ThissettingisavailableonlyiftheinternalPorPIcontrollerandthe
and the supply air limitation are activated.
Factorysetting: 70 %rh
Settingrange: 15 ... 95 %rh
– Limit Max: Settingtheupperlimitvaluein%rhforthesupplyairlimitation.
Note:ThissettingisavailableonlyiftheinternalPorPIcontrollerandthe
and the supply air limitation are activated.
Factorysetting: 90 %rh
Settingrange: 15 ... 95 %rh
