Commander SE Advanced User Guide 7
Issue Number: 4
What you will need:

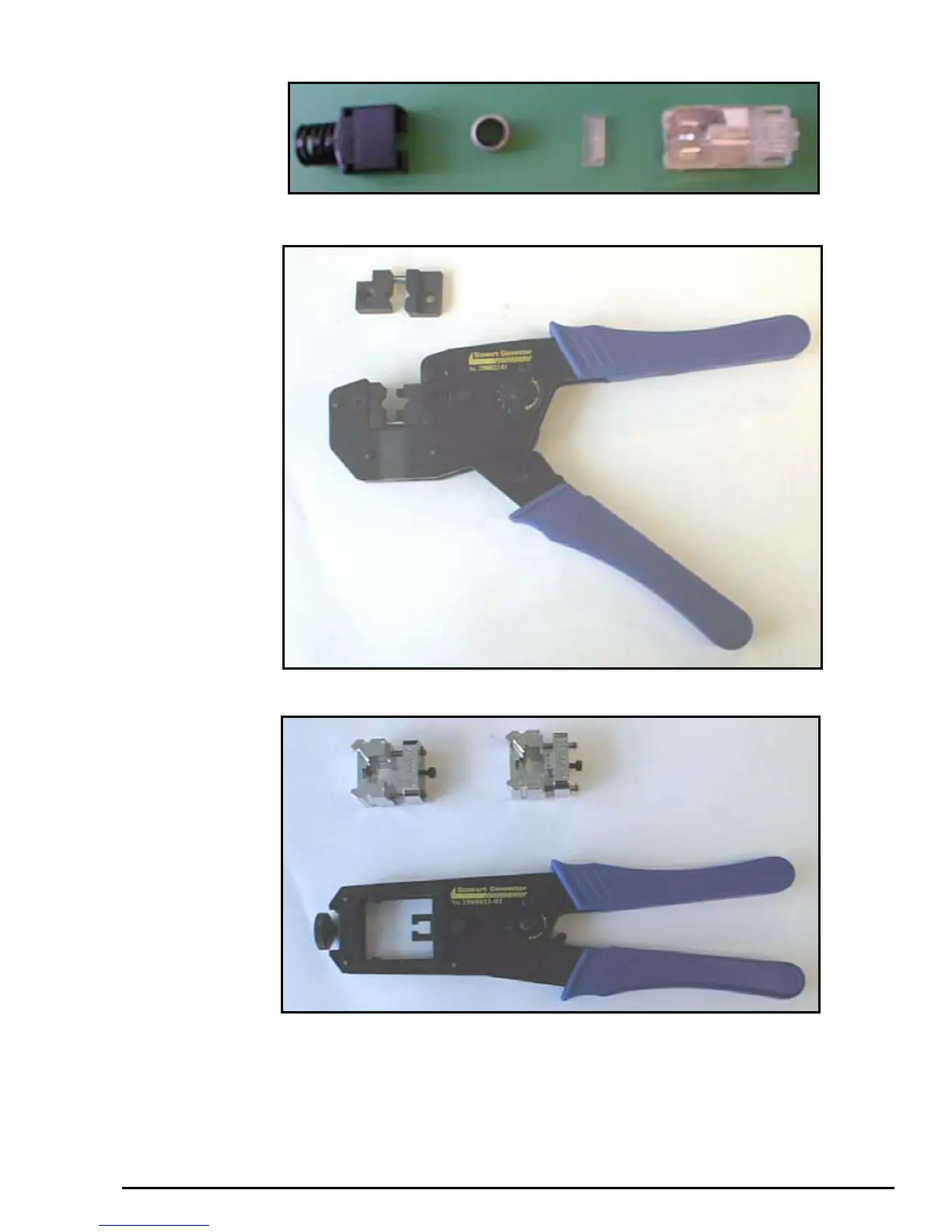

Figure 1-1 Stewart Shielded Plug
Figure 1-2 Stewart Ferrule Crimp Hand tool and 5.2mm Cable Crimp
Figure 1-3 RJ45 Hand tool, Shielded and Unsheilded Dies
All required components to terminate an RJ45 connector can be purchased from RS components. Refer to Table 1-1 on
page 9 for RS Components part numbers.
