3-14
1010PVNFM-3A
Section 3
at the bottom of the frame (see A below). While holding, also mark along the front edge of
the frame with pencil or fine chalk line (see B below).
Transducer
Pipe
Spacer Bar
Mylar
Spacing
Guide
Transducer
Spacer Bar
Dot
Dot
Line
Transducer
Edge Line
Transducer
7. Disassemble the spacer bar and the unmounted frame. Use the bar as a straight edge
and, with one edge against the mounted frames tapered roller center and the other cross-
ing the dot you drew, draw a line crossing the dot (see “B” above). Set the bar aside.
8. Wrap the mylar spacing guide around the pipe so that the left edge is against the trans-
ducer edge mark (see “C” above). Arrange so that one end overlaps the other by at least
three inches. Trim to fit if necessary, but be sure not to trim at the overlapping end in
order to keep it square.
9. Realign left edge of the guide with the transducer edge mark. Line up both vertical edges
of the guide and ensuring that it is snug around the pipe, mark along the overlapping edge.
10. Remove Mylar spacing guide and lay it out on a flat surface. Either measure the exact
distance halfway between the overlap edge and the mark at the overlap, or fold the guide
from the overlap edge to overlap mark and draw a line at the fold or halfway point (see
next page).
A
B
C
END VIEW
3" Overlapping
Edge
Mylar
Spacing Guide
Trim material from
inner edge if
necessary

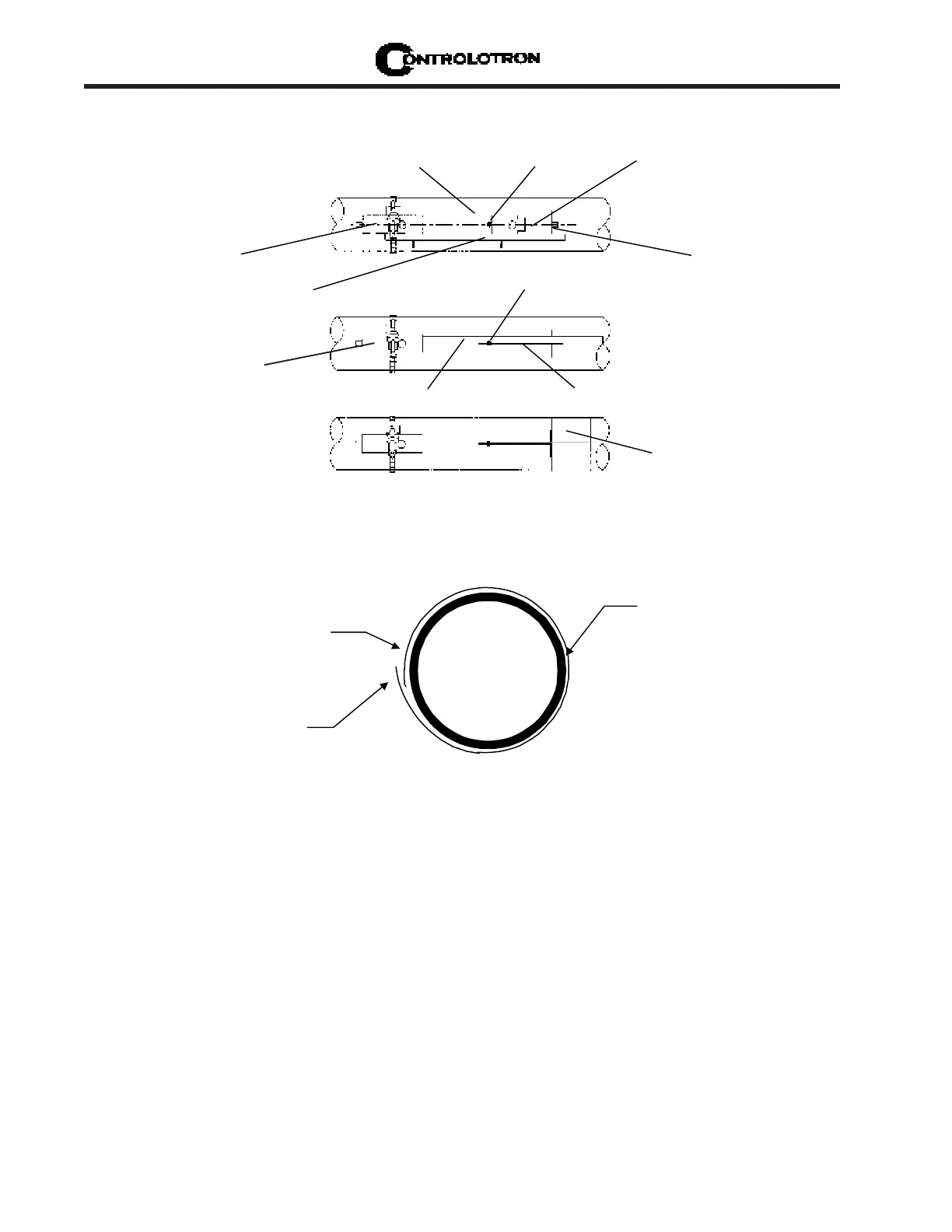

WRAPPING THE MYLAR SPACING GUIDE AROUND THE PIPE
