Dahua XVR5104HS User Manual

185
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this
series DVR for the first time, please refer to this part first.
2.1 Front Panel
2.1.1 HCVR5104C/HCVR51XXC-V2/HCVR71XXC-V2/
HCVR4104/4108C-S2/ HCVR5104 5108C-S2/ HCVR7104C-S2/
HCVR2108C-S2/ HCVR410XC-S3/HCVR510XC-S3/7104C-S3/
XVR410XC/XVR510XC/7104C/XVR51XXC-4M/ XVR41XXC-S2/
XVR51XXC-S2 Series

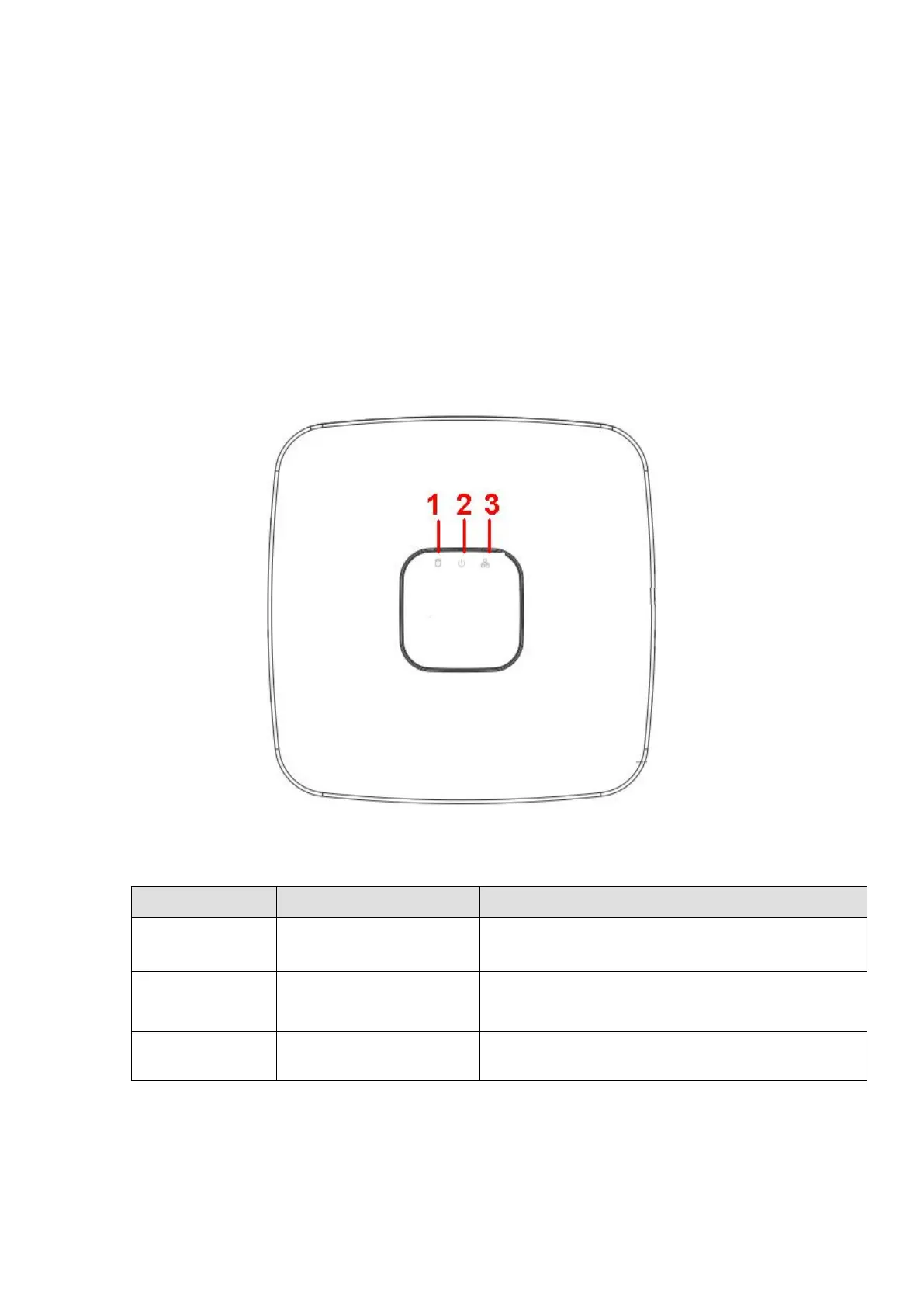

The front panel is shown as below. See Figure 2- 1.
Figure 2- 1
Please refer to the following sheet for front panel button information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 HCVR51XXH/HCVR51XXHE/ HCVR51XXH-V2 /
HCVR51XXHE-V2/HCVR71XXH-V2 / HCVR71XXHE-V2 Series
The front panel is shown as below. See Figure 2- 2.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
