Dahua XVR5104HS User Manual

244
SN
Icon
Name
Note
14
VIDEO
OUT
Video output
port
Connect to output devices such as TV.
2.2.31 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series

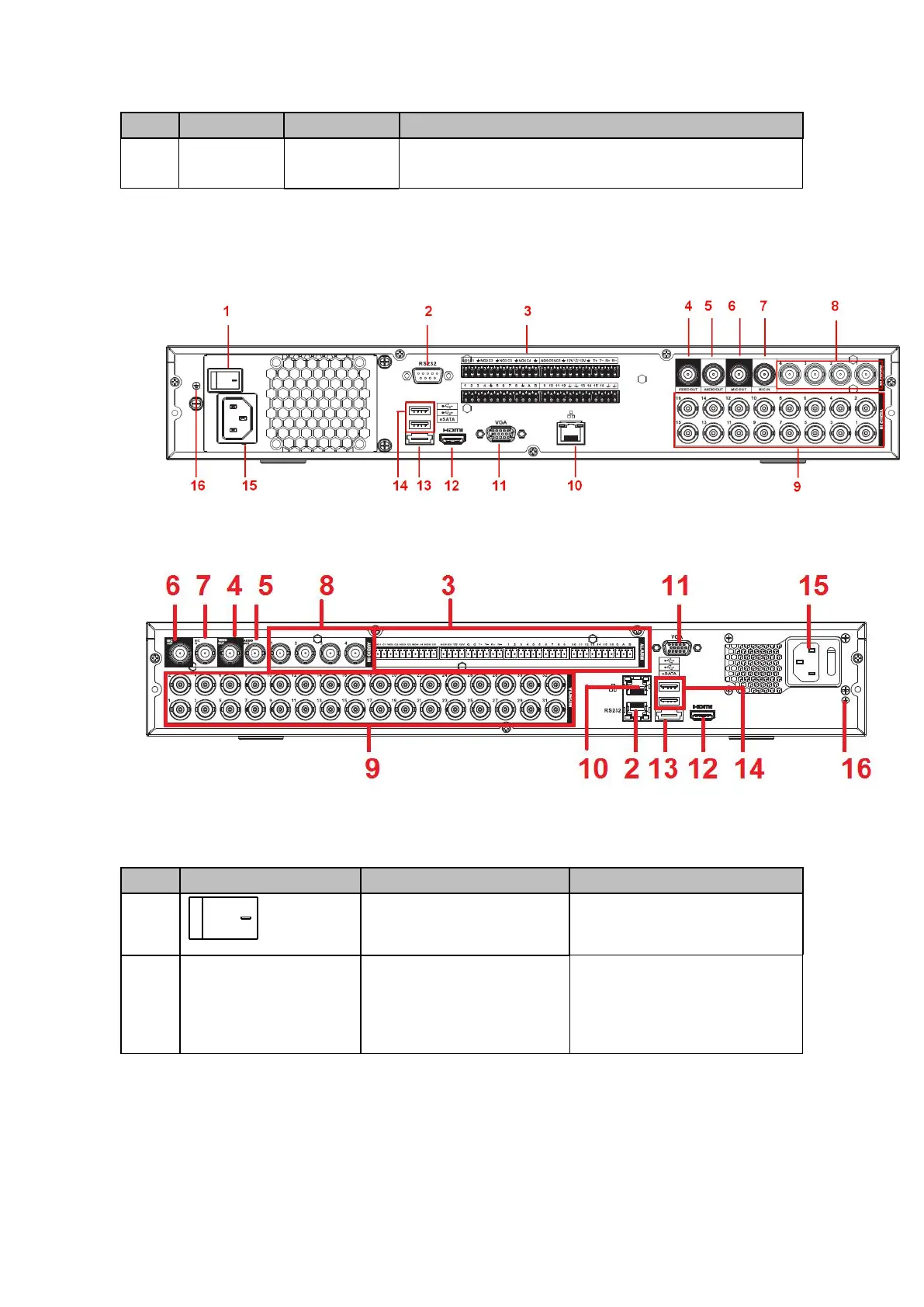

This series products’ rear panel is shown as below. See Figure 2- 77.
The following figure is based on the HCVR5416L-V2 series product.
Figure 2- 77
The HCVR4432L-S2 rear panel is shown as below. See Figure 2- 78.
Figure 2- 78
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power switch
Power on/off button.
2
RS-232
RS-232 debug COM.
It is for general COM debug to
configure IP address or
transfer transparent COM
data.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
