Dahua XVR5104HS User Manual

604

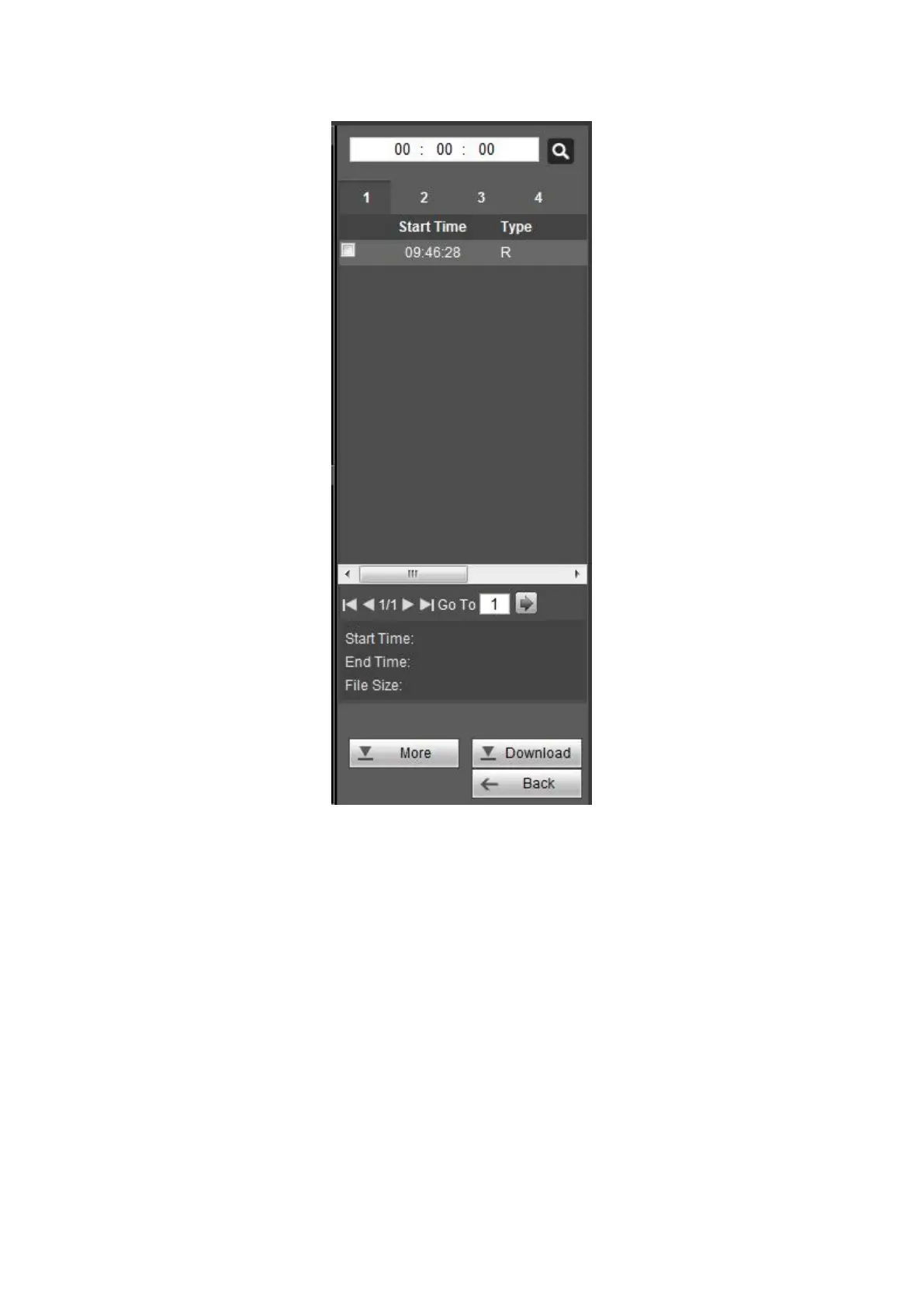

Figure 5- 157
5.12.4 Playback
Select a file you want to play and then click Play button, system can begin playback. You
can select to playback in full-screen. Please note for one channel, system cannot
playback and download at the same time. You can use the playback control bar to
implement various operations such as play, pause, stop, slow play, fast play and etc.
5.12.5 Download
Select the file(s) you want to download and then click download button, you can see an
interface shown as in Figure 5- 158. The Download button becomes Stop button and there
is a process bar for your reference. Please go to you default file saved path to view the
files.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
